Overview#

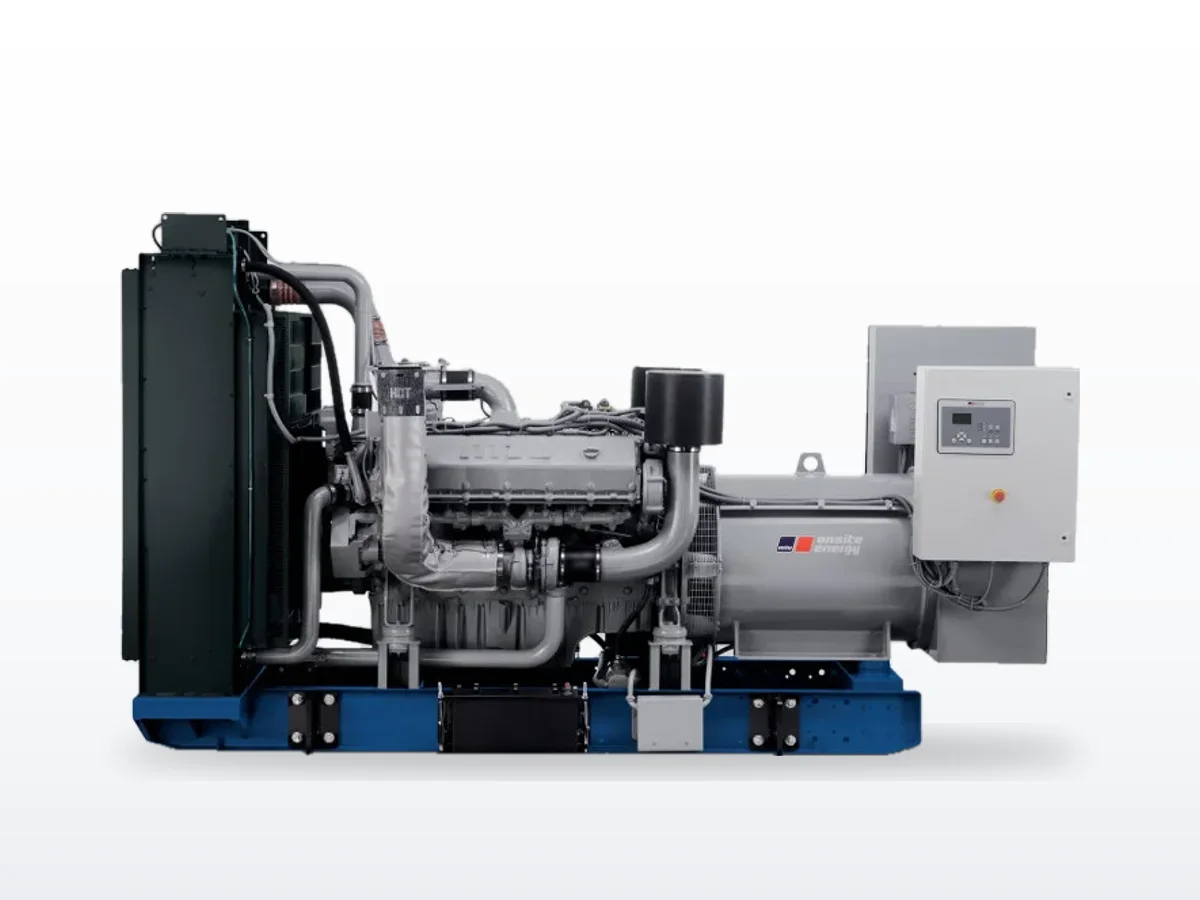

The MTU 12V1600 DS900 is a 900 kW standby diesel generator set that extracts the maximum power from the mtu 12V1600 engine platform — a 22.44-liter, 12-cylinder turbocharged and aftercooled diesel producing up to 996 kWm (1,335 bhp) at 1800 RPM. The genset is rated at 900 kW (1,125 kVA) standby and 820 kW prime, with output configurations from 208V through 600V in three-phase arrangements. The unit carries EPA Tier 2 and SCAQMD certifications for stationary emergency operation.
The DS900 pairs the 12V1600G91S engine with a Leroy-Somer LSA 49.3 L9 alternator (at 480V) — a 4-pole, Class H unit sized for the higher continuous current demand. Despite producing 900 kW, the complete genset shares the same 178 x 84.1 x 85.8 in footprint as the DS600 and DS750 variants, making the 12V1600 platform notably compact for the sub-megawatt power class.
The 12V1600 at its upper limit#
At 900 kW, the 12V1600G91S engine is running near its maximum continuous rating. Exhaust flow increases to 6,922 CFM at 1,024 degrees F — significantly hotter than the DS750 variant (898 degrees F) — which has direct implications for exhaust system design and heat dissipation within the equipment room. Combustion air demand rises to 2,585 SCFM.
A critical design consideration for the DS900 is its radiator ambient temperature rating of only 40 degrees C (104 degrees F), compared to 50 degrees C on the DS750. In Northern California, this distinction matters: coastal and Bay Area installations rarely approach 104 degrees F, but inland sites in the Sacramento and San Joaquin valleys can exceed this threshold during summer heat events. Engineers specifying the DS900 for inland sites should evaluate remote radiator configurations or supplemental cooling to maintain rated output under worst-case ambient conditions.
Our service experience#
The 12V1600 DS900 is the most powerful variant of the 12V1600 platform before stepping up to the physically larger 16V2000 series. We encounter these units in large commercial complexes, hospital campuses, and data center facilities across the Bay Area where the 750 kW rating falls short but the project does not warrant the cost and footprint jump to a 16-cylinder unit. The shared footprint with the DS600 and DS750 also makes the DS900 a practical upgrade path for facilities whose connected loads have grown beyond their original generator's capacity.
The mtu brand has a strong reputation for reliability in critical-facility applications. For DS900 installations, we pay particular attention to cooling system performance during annual load bank testing — the 40 degrees C ambient limitation means any degradation in radiator efficiency, fan belt tension, or coolant condition has less thermal margin before it becomes a problem. We recommend verifying radiator core cleanliness and coolant condition at every semi-annual service visit, not just the annual interval.
