Overview#

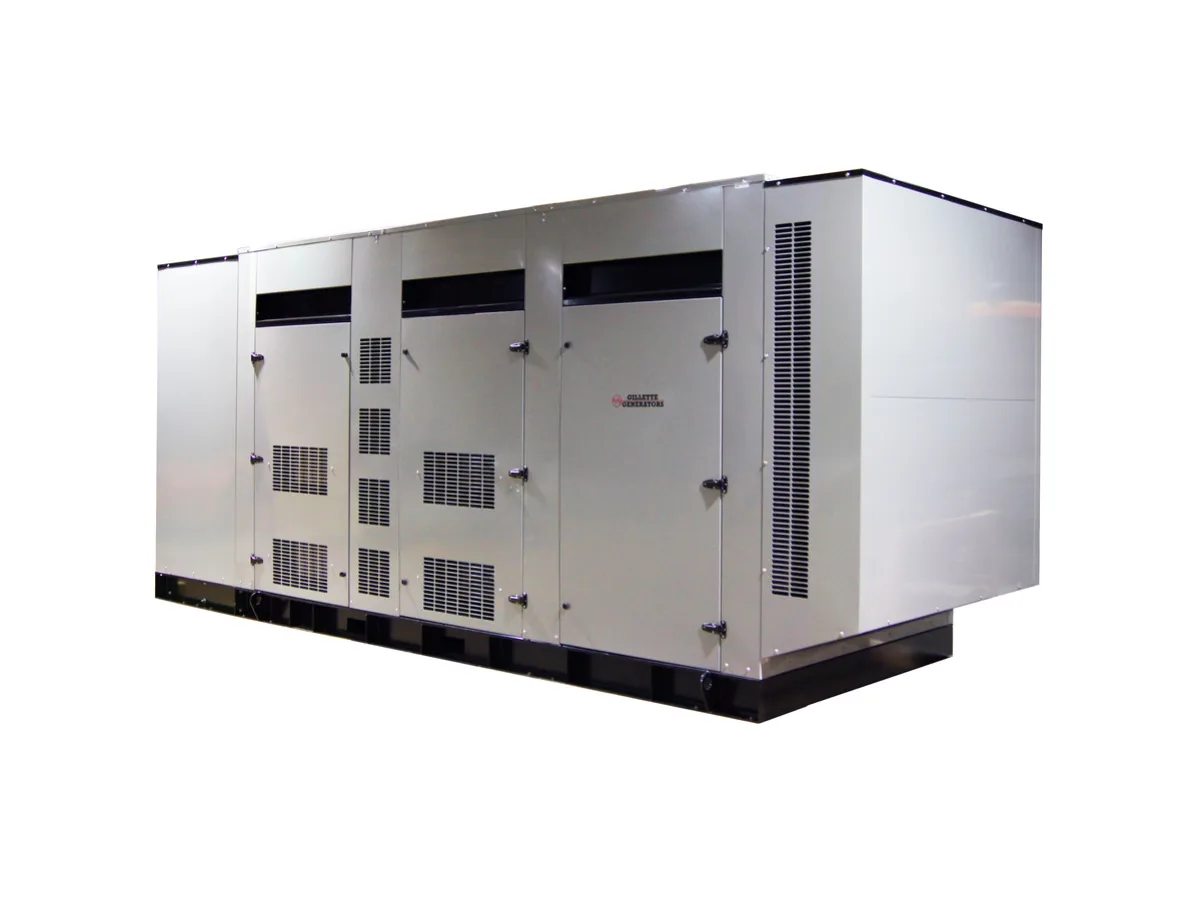

The Gillette SP-6500 is a 650-kilowatt natural gas stationary standby generator — natural gas only, three-phase, built on PSI's 31.8L turbocharged V12. It is the largest PSI platform below the SP-8000 (39.2L V12) and delivers 966 bhp at standby. Stamford HCI534F alternator, DSE 7420 MKII controller.
At 650 kW, this is a large-facility standby unit: major data centers, large hospital buildings, industrial plants, or large campus distributions. At 15,950 lbs open, it requires structural engineering and a crane installation.
The PSI 31.8L V12 — PSI's large industrial platform#
The 31.8L V12 is a distinct displacement from the 21.9L V12 used in the SP-4000/5000. Key differences:
- 31.8L vs. 21.9L — 45% more displacement, square bore-and-stroke configuration (5.91" × 5.91")
- Dual 6" exhaust outlets vs. dual 5" on the smaller models — larger exhaust volume demands larger-diameter runs
- 68" diameter pusher fan vs. 52" — significantly larger cooling system for 650 kW heat rejection
- 95 qt oil capacity (119 qt with 6 filters) — large oil system requiring 6 spin-on filters per oil change
- 1,400 CCA batteries — higher cranking current for the larger displacement at cold start
The HO (high-output) engine produces 966 bhp NG mechanical — the spec sheet also lists an LPG-configured variant at 637 bhp but no LPG standby kW rating is published, making this unit functionally NG-only.
Cooling system and site thermal management#
The SP-6500 pushes 65,100 cfm of airflow through the radiator, rejecting 34,074 BTU/min (599 kW) from the cooling system. The radiator ambient temperature limit is 125°F (51.6°C). For enclosed generator rooms, the airflow clearances and supplemental ventilation design are engineering-critical — get a licensed mechanical engineer involved in the site design for this unit.
Exhaust temperature at standby: 1,183°F (639°C) — exhaust routing through conditioned spaces requires rated thimbles and clearances per NFPA 37.
Our service experience#
The PSI 31.8L V12 is among the largest commercial spark-ignition engines we service. At this output level, we emphasize annual full-load commissioning tests — monthly no-load runs reveal very little about a 650 kW unit's actual capability. Ignition service at 12 cylinders requires planning: we allocate a full-day service window. The 6-filter oil change is time-consuming but the large oil capacity provides good oil stability between intervals. Annual paralleling system and ATS testing are non-negotiable at this power class.
