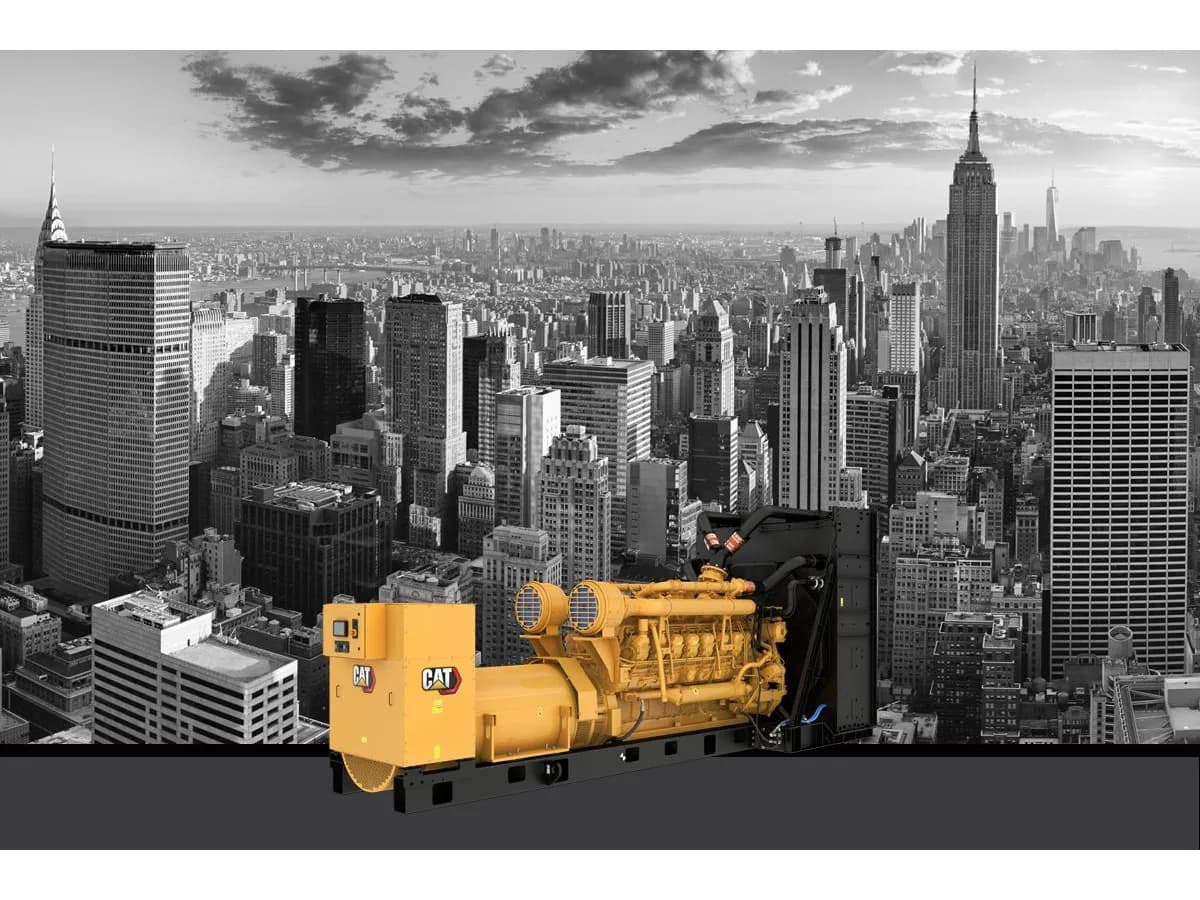

The Cat 3516C is a 2,500-kilowatt diesel standby generator — Caterpillar's largest single-engine genset platform and a direct competitor to the Cummins QSK60 for mission-critical data center and hospital power. At 69 liters across 16 cylinders, it represents the pinnacle of reciprocating engine standby power: 2.5 MW from a single frame.
At this capacity, the generator market is essentially a two-horse race:
Cat 3516C
Cummins QSK60
Displacement
69L V-16
60.2L V-16
Standby kW
2500
2000
BMEP
Lower (less stressed)
Higher (more power per liter)
Load acceptance
Superior (lower BMEP)
Good
Dealer network
Strong (Peterson, Holt)
Strongest (6,000+ locations)
Controller
EMCP 4 (proprietary)
PowerCommand 3.3 (proprietary)
Warranty
Cat-integrated
Cummins-integrated
Both are excellent. The decision typically comes down to: local dealer relationship, historical fleet standardization, and specific facility requirements (Cat's load acceptance edge matters for data centers with high-inrush UPS transfers).
The 3516C is the largest single engine in our service portfolio. Annual maintenance is a multi-day event: 16 cylinders of injection verification, dual turbo inspection, 100+ gallons of oil per change, comprehensive fluid sampling, and full-load testing with paralleling verification. These units demand experienced Cat-certified technicians and Cat Electronic Technician (Cat ET) diagnostic capability. We maintain Cat ET licenses and current firmware for all field service vehicles.
Engineering specifications
Physical
Length
271 in
Width
92 in
Height
118 in
Dry weight
37,000 lb
Acoustic
Sound @ 7m, full load
83 dBA
Enclosure
Open
Fuel system & runtime
Integral fuel tank
1250 gal
Fuel use @ full load
138 GPH
Fuel use @ 75% load
107.5 GPH
Request a quote
Get pricing & lead time on the Cat 3516C
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
11.7 hours(0.5 days)
Fuel consumption ≈ 106.46 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Cat 3516C under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 24,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality (standby degradation)
Injector fouling, filter clogging
4,380+
moderate
Turbocharger(s)
Reduced power, excessive smoke
20,000+
moderate
Battery banks (48V or 24V parallel)
Slow crank, failed start requirement
8,760+
minor
EUI injectors
Rough running, power imbalance between banks
18,000+
moderate
Frequently Asked Questions
How does the Cat 3516C compare to the Cummins QSK60?
Both are 2+ MW V-16 diesel platforms that dominate data center power. The 3516C (69L) has more displacement than the QSK60 (60.2L), delivering 2500 kW vs 2000 kW at similar speeds. Cat's advantage: 19% lower BMEP means better block load acceptance. Cummins' advantage: vertical integration (single-source warranty) and denser dealer network.
What is BMEP and why does it matter?
Brake Mean Effective Pressure — a measure of how hard the engine works per unit displacement. The 3516C operates at 19% lower BMEP than competitors at the same output, meaning it's less stressed per cylinder. This translates to better transient response when large blocks of load are applied instantly (like a data center UPS transfer).
Is the 3516C available in medium voltage?
Yes — 4160V and 13,800V configurations are standard options. Large facilities often use medium-voltage generation to reduce conductor sizes and eliminate step-up transformers at the generator level.
How much does a 3516C weigh?
Approximately 30,000-31,000 lbs on open skid. With sound-attenuated enclosure, significantly more. Structural engineering for the generator pad and building access for installation are critical planning items.
