Blue Star Power Systems · John Deere Diesel Standby

Blue Star JD60-04FT4

60 kW standby · Diesel · Liquid-cooled

60 kW Tier 4 Final diesel standby/prime generator from Blue Star Power Systems. John Deere 4045HFG04 4.5L inline-four with SCR/DOC, DSE DCP7310 controller, 208-600V.

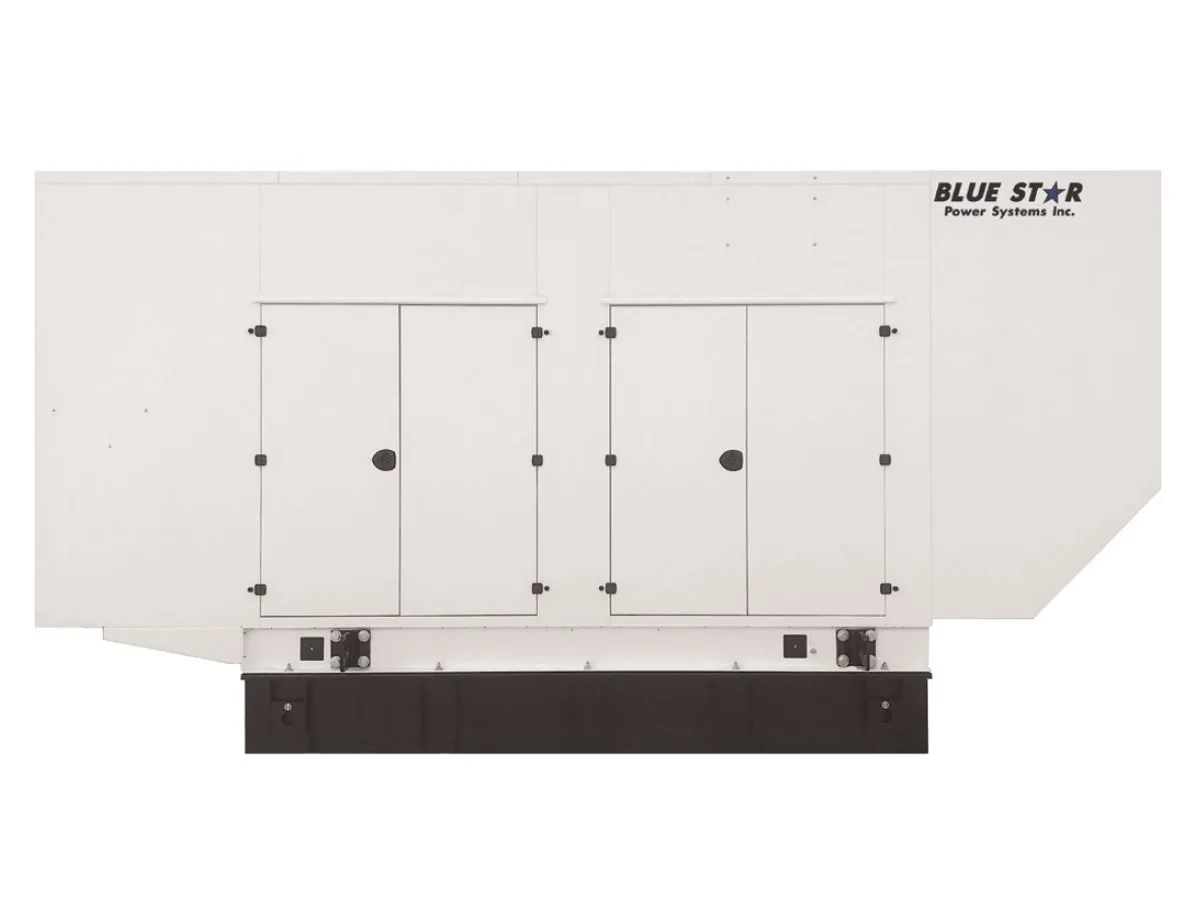

Blue Star Power Systems Blue Star JD60-04FT4 generator — specifications and details
Standby power
60 kW / 60 kW prime
Voltage options
120/240V, 120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 1/3-phase
Engine
John Deere 4045HFG04 · 4.5L
EPA / Emissions
Tier 4 Final
Alternator
Stamford UCI224F
Commercialsmall-commercialrestaurantGovernmentresidential-high-end
Configure & QuoteDownload spec sheet

Overview#

The Blue Star JD60-04FT4 is a 60-kilowatt EPA Tier 4 Final diesel standby/prime generator built around the John Deere 4045HFG04 — a 4.5-liter inline-four with SCR/DOC exhaust aftertreatment. This is a current-production active model.

The JD60-04FT4 shares its engine with the JD80-03FT4 (80 kW) but is paired with a smaller alternator for applications where 60 kW meets the load study. Both standby and prime ratings are equal at 60 kWe.

The John Deere 4045HFG04 platform#

The 4045HFG04 is John Deere's mid-range PowerTech genset engine:

  • 4.5L inline-four — stepping up from the 2.9L three-cylinder in the JD40-05FT4, with bore of 4.20 in and stroke of 5.00 in
  • Turbocharged with charge-air cooling — CAC for improved power density and transient response
  • SCR/DOC aftertreatment — selective catalytic reduction with diesel oxidation catalyst, requiring DEF fluid (approximately 4.3% of fuel consumption)
  • 3.8-gallon integrated DEF tank — provides roughly 18 hours of full-load operation between refills
  • 8,400 ft altitude ceiling — excellent for virtually any US installation

Variant selection guide#

The JD60-04FT4 shares its engine platform with the JD80-03FT4:

  • JD40-05FT4 (40 kW, John Deere 3029HG530 2.9L I-3, Tier 4 Final) — smaller engine, no DEF required (DOC/DPF only). Choose this for loads under 40 kW or when DEF-free operation is preferred.
  • JD80-03FT4 (80 kW, John Deere 4045HFG04 4.5L I-4, Tier 4 Final) — same engine, larger alternator. Same footprint, 200 lbs heavier. Choose this if the load study shows peak demand between 60-80 kW.
  • VD100-04FT4 (100 kW, Volvo Penta, Tier 4 Final) — next step up, different engine OEM, for loads above 80 kW.

When to spec the JD60-04FT4#

  • 48-60 kW emergency standby or continuous prime loads on diesel fuel
  • Jurisdictions requiring Tier 4 Final emissions (California CARB for non-emergency, mandated T4F installations)
  • Small-to-mid commercial facilities: retail centers, restaurants, small offices, schools
  • Sites at any elevation up to 8,400 ft

Our service experience#

The John Deere 4045 platform is one of the most widely deployed small diesel engines in the power generation industry, with excellent parts availability through John Deere's dealer network. The SCR/DOC aftertreatment adds DEF replenishment to the maintenance schedule — we recommend including DEF level checks in every monthly exercise visit. The 3.8-gallon DEF tank is adequate for emergency standby use but may need more frequent attention in prime power applications. The 77 dBA open-skid sound level is quiet enough for many commercial installations without additional enclosure, though Level 1 or Level 2 enclosures are commonly specified for noise-sensitive sites.#

Engineering specifications

Physical

Length
90 in
Width
54 in
Height
66 in
Dry weight
3,650 lb

Acoustic

Sound @ 7m, full load
77 dBA
Enclosure
Open

Fuel system & runtime

Fuel use @ full load
4.82 GPH
Fuel use @ 75% load
3.92 GPH
Fuel use @ 50% load
2.8 GPH
DEF tank
3.8 gal

Thermal & ventilation

Heat to coolant
211,740 BTU/hr
Heat radiated
80,340 BTU/hr
Exhaust flow
533 CFM
Exhaust temp
910 °F
Combustion air
226 CFM

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Blue Star JD60-04FT4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Blue Star JD60-04FT4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

53.8 hours(2.2 days)

Fuel consumption ≈ 3.72 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star JD60-04FT4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
DEF system (SCR catalyst)Derate warning, NOx fault, DEF quality alert4,380+moderate
Fuel quality / tank contaminationHard starting, filter clogging, injector fouling4,380+moderate
BatteryFailed to start, slow crank8,760+minor
Coolant hosesSlow coolant loss, weeping at clamps8,000+minor

Frequently Asked Questions

What engine is in the JD60-04FT4?
The John Deere 4045HFG04 — a 4.5-liter inline-four turbocharged-aftercooled diesel rated 133 HP (99.2 kWm) at 1800 RPM. This is the same engine used in the JD80-03FT4 (80 kW), conservatively rated at 60 kWe for this genset configuration. EPA Tier 4 Final certified with SCR/DOC exhaust aftertreatment requiring DEF (diesel exhaust fluid).
Does the JD60-04FT4 require DEF?
Yes. The JD60-04FT4 uses SCR (selective catalytic reduction) with DOC (diesel oxidation catalyst) aftertreatment. DEF consumption is approximately 4.3% of fuel consumption, and the integrated DEF tank holds 3.8 gallons. At full load, the 3.8-gallon DEF tank provides roughly 18 hours of operation before needing replenishment.
How does the JD60-04FT4 compare to the JD80-03FT4?
Both use the same John Deere 4045HFG04 engine (4.5L, 133 HP) and share the same physical footprint (90 x 54 x 66 in). The JD60 is paired with a smaller Stamford UCI224F alternator (60 kWe) while the JD80 uses a larger UCI274C alternator (80 kWe). The JD60 consumes less fuel at full load (4.82 vs 5.96 gph) and is 200 lbs lighter (3,650 vs 3,850 lbs). Choose the JD60 if the load study shows peak demand under 60 kW.
What is the altitude deration for the JD60-04FT4?
Rated power is available up to 8,400 ft (2,560 m) at ambient temperatures to 122F (50C). This excellent altitude ceiling makes the JD60-04FT4 suitable for virtually any installation in the western United States.

Compatible equipment

Engine

Transfer switches

More in the John Deere Diesel Standby

30–300 kW John Deere diesel standby across Tier 3, 4 Interim, and Tier 4 Final — 14 models, single and three-phase.

View all 14models in this series →

Similar models

Blue Star Power Systems Blue Star JD60-04FT4MP 60 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star JD60-04FT4MP

Open Basler controller + John Deere engine + Stamford alternator — trailer-mounted, no proprietary lock-in. Serviceable by any qualified tech.

60 kW standby · Diesel · Liquid-cooled

60 kW Tier 4 Final mobile trailer diesel generator built by Blue Star Power Systems. John Deere 4045HFG04 four-cylinder engine, Stamford UCI224F alternator, DSE DCP7310 controller, 250-gallon integrated fuel tank.

Tier 4 Final3-phaseconstructiontemporary-power

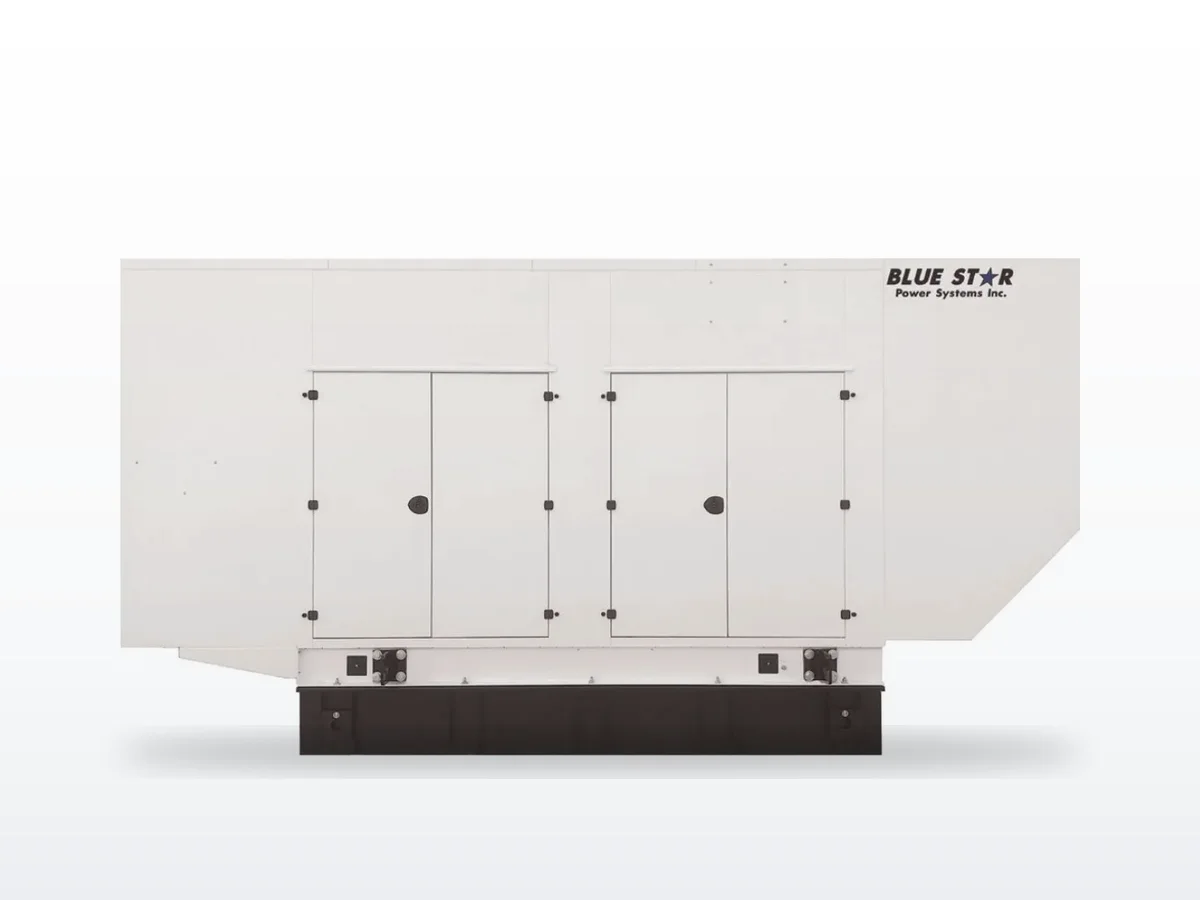

Blue Star Power Systems Blue Star JD60-02 60 kW liquid-cooled standby generator
