Waukesha · Waukesha VHP Series

Waukesha P9394GSI

1865 kW standby · Natural Gas · Liquid-cooled

Waukesha P9394GSI 1,865 kW prime natural gas generator. VHP Series Five 16-cylinder flagship engine for large-scale CHP, utility peaking, and industrial cogeneration.

Waukesha Waukesha P9394GSI generator — specifications and details
Standby power
1865 kW / 1865 kW prime
Voltage options
4160V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
INNIO Waukesha P9394GSI Series Five
prime-powerchpdistributed-generation
Configure & QuoteDownload spec sheet

Overview#

The Waukesha P9394GSI is the flagship of the VHP line — a 16-cylinder, 93.9-liter natural gas engine producing up to 2,500 HP (1,865 kW). As the newest addition to INNIO's VHP Series Five platform, the P9394GSI represents the largest rich-burn gas engine available from INNIO Waukesha. This is a prime power and continuous duty engine built for demanding, high-uptime applications — it is not designed for standby or backup service.

The P9394GSI is deployed in large-scale combined heat and power (CHP) installations, utility peaking plants, and industrial cogeneration facilities where maximum power output from a single gas engine is required. The 4160V primary output voltage enables direct integration with medium-voltage plant distribution systems. INNIO's Series Five controls platform provides advanced engine management, remote diagnostics, and emissions optimization for compliance with current and anticipated regulatory requirements.

OnPoint services Waukesha P9394GSI installations with comprehensive maintenance programs, major overhauls, emissions system support, and control system integration.

Ready to order this model?

Configure your Waukesha P9394GSI

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Waukesha P9394GSI

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

19,582,500 BTU/hr≈ 19582.5 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What makes the Waukesha P9394GSI different from the L7044GSI?
The P9394GSI is a 16-cylinder, 93.9-liter engine producing 1,865 kW versus the L7044GSI's 12-cylinder configuration at 1,253 kW. The P9394GSI is the largest rich-burn gas engine from INNIO Waukesha, designed for facilities requiring maximum power output from a single gas engine unit.
What is the typical application for a Waukesha P9394GSI?
The P9394GSI is deployed in large-scale CHP installations, utility peaking plants, and industrial cogeneration facilities. Its 4160V primary output enables direct integration with medium-voltage plant distribution systems. These installations typically require customized preventive maintenance programs to maximize uptime.

More in the Waukesha VHP Series

Natural gas prime power engines from 418 to 1,865 kW for CHP and distributed generation

Similar models

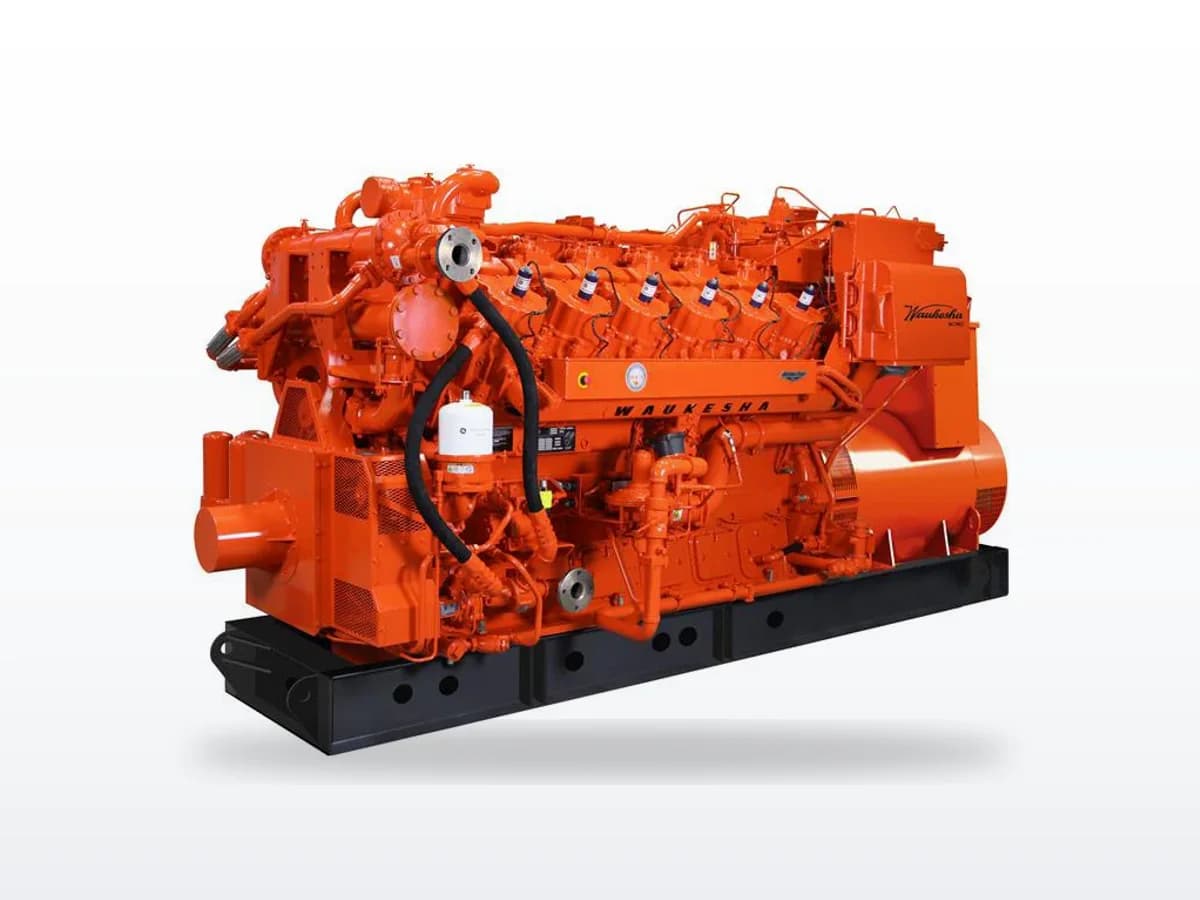

Waukesha Waukesha L7044GSI 1.3 MW liquid-cooled standby generator

Waukesha

Waukesha L7044GSI

1.3 MW standby · Natural Gas · Liquid-cooled

Waukesha L7044GSI 1,253 kW prime natural gas generator. VHP Series Five 12-cylinder engine for CHP, landfill gas-to-energy, and industrial distributed generation.

3-phaseprime-powerchp

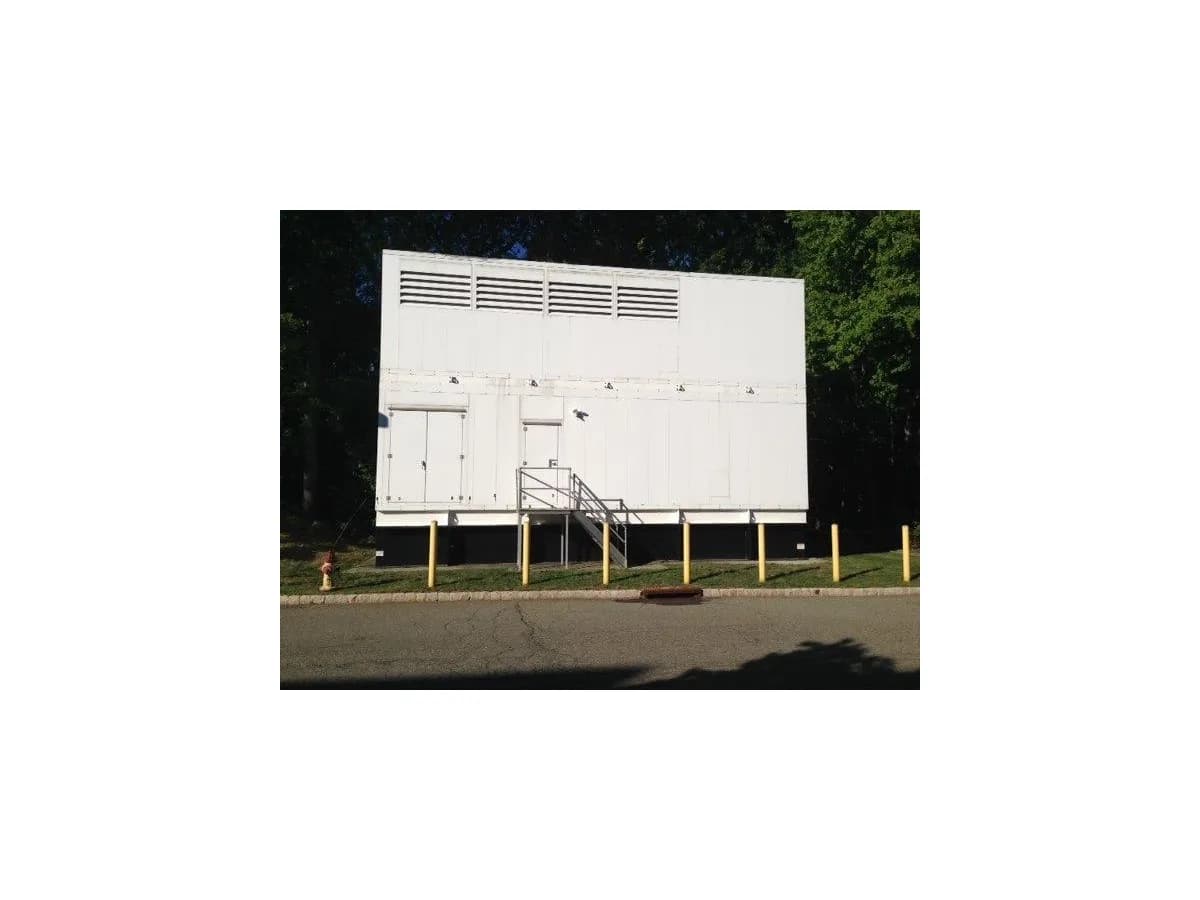

Cummins Cummins C1750 N6cb 1.8 MW liquid-cooled standby generator

Cummins

Cummins C1750 N6cb

1750 kW natural gas standby powered by the HSK78G. Near-2-MW gas power for mission-critical facilities without diesel infrastructure.

1.8 MW standby · Natural Gas / LPG · Liquid-cooled

1750 kW natural gas standby generator with HSK78G gas engine. 1750 kW / 2188 kVA standby, PowerCommand controls, AmpSentry protection, UL 2200, EPA certified.

3-phasecommercial-standbyindustrial-standby

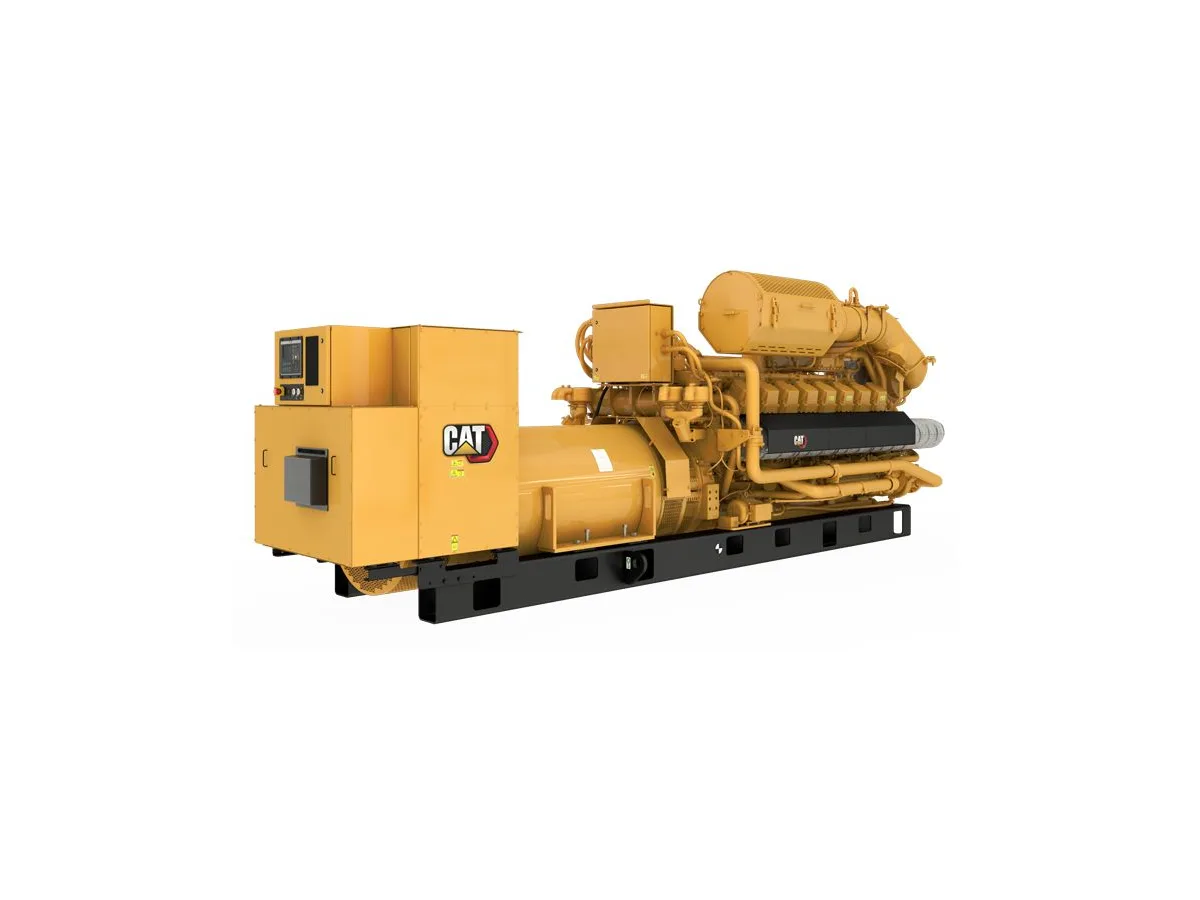

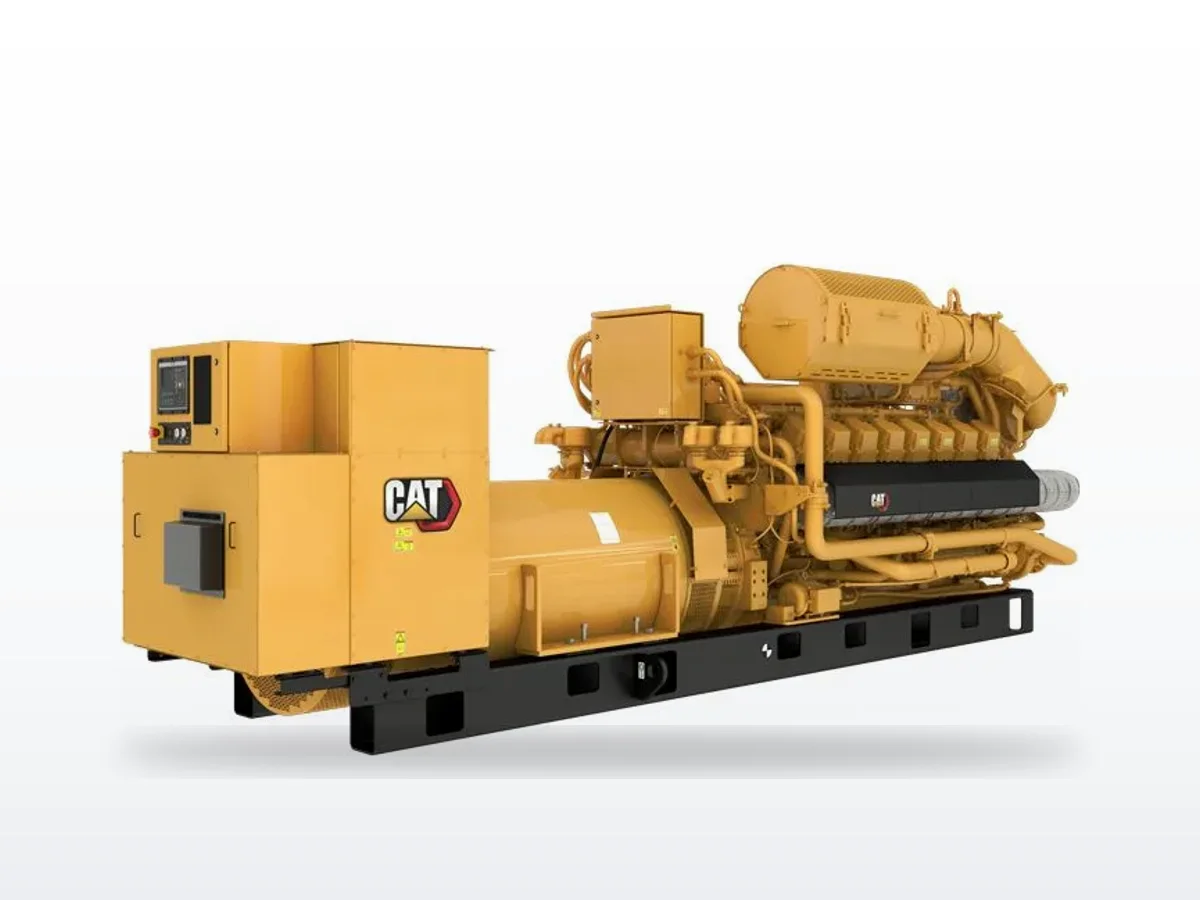

Caterpillar Cat G3516H 2.0 MW liquid-cooled standby generator
