Triton Power · TP-P

Triton Power TP-P600-T2-UL

600 kW standby / 545 kW prime · Diesel · Liquid-cooled

600 kW Tier 2 diesel generator with Perkins 2806C-E18TAG3 engine. UL2200-listed for commercial, industrial, and data center standby.

Triton Power Triton Power TP-P600-T2-UL generator — specifications and details
Standby power
600 kW / 545 kW prime
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Perkins 2806C-E18TAG3 · 18.3L
EPA / Emissions
Tier 2
Alternator
Leroy Somer TAL0473E
CommercialManufacturingData CentersHealthcare
Configure & QuoteDownload spec sheet

Overview#

The Triton Power TP-P600-T2-UL is a 600 kW diesel standby generator built on the Perkins 2806C-E18TAG3 turbocharged and aftercooled six-cylinder engine (18.3 L displacement, bore 145 mm x stroke 183 mm, 14.5:1 compression ratio). It produces 678 kWm (909 HP) at rated RPM and is paired with a Leroy Somer TAL0473E alternator. The unit carries UL2200 listing and meets EPA Tier 2 for emergency stationary applications.

Available in three-phase only at 277/480V, 120/208V, and 120/240V. The open-skid configuration measures 155" x 69" x 82" and weighs 10,165 lbs dry. Enclosed versions are 220.7" x 71.1" x 102" at 12,785 lbs. Fuel consumption is 145 L/hr (38.30 GPH) at full load, dropping to 79 L/hr (20.87 GPH) at half load.

Our service experience#

The Perkins 2806C is the 18 L platform that powers generators in the 500-750 kW range. The TAG3 single-turbo variant in this 600 kW model shares its block with the twin-turbo TTAG7 in Triton's 750 kW unit, so many consumables and service procedures overlap. At 600 kW, this unit competes with the Kohler 600REOZJF and Cummins QSK19-powered offerings. For larger commercial buildings, hospitals, and data center deployments in Northern California, Triton's value pricing on this proven Perkins platform is a significant differentiator.

Engineering specifications

Physical

Length
155 in
Width
69 in
Height
82 in
Dry weight
10,165 lb

Acoustic

Sound @ 7m, full load
70 dBA

Fuel system & runtime

Integral fuel tank
264 gal
Fuel use @ full load
38.3 GPH
Fuel use @ 75% load
29.59 GPH
Fuel use @ 50% load
20.87 GPH

Ready to order this model?

Configure your Triton Power TP-P600-T2-UL

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Triton Power TP-P600-T2-UL

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

8.9 hours(0.4 days)

Fuel consumption ≈ 29.55 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine powers the Triton TP-P600-T2-UL?
The TP-P600-T2-UL uses a Perkins 2806C-E18TAG3 turbocharged and aftercooled six-cylinder diesel engine with 18.3 L displacement (145 mm bore x 183 mm stroke, 14.5:1 compression ratio), producing 678 kWm (909 HP) at 1800 RPM.
What are the dimensions and weight of the TP-P600-T2-UL?
The open-skid configuration measures 155 x 69 x 82 inches and weighs 10,165 lbs dry. The enclosed version is 220.7 x 71.1 x 102 inches at 12,785 lbs.
How does the TP-P600 relate to the TP-P750?
Both use the Perkins 2806C 18 L inline-six block with the same bore and stroke. The TP-P600 uses the single-turbo TAG3 variant (18.3 L, 678 kWm), while the TP-P750 uses the twin-turbo TTAG7 variant (18.1 L, 821 kWm). Many consumables and service procedures overlap.
What is the fuel consumption of the TP-P600-T2-UL?
Full load consumption is 38.30 GPH (145 L/hr), 75% load is 29.59 GPH (112 L/hr), and 50% load is 20.87 GPH (79 L/hr).

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Powergenerators →

Similar models

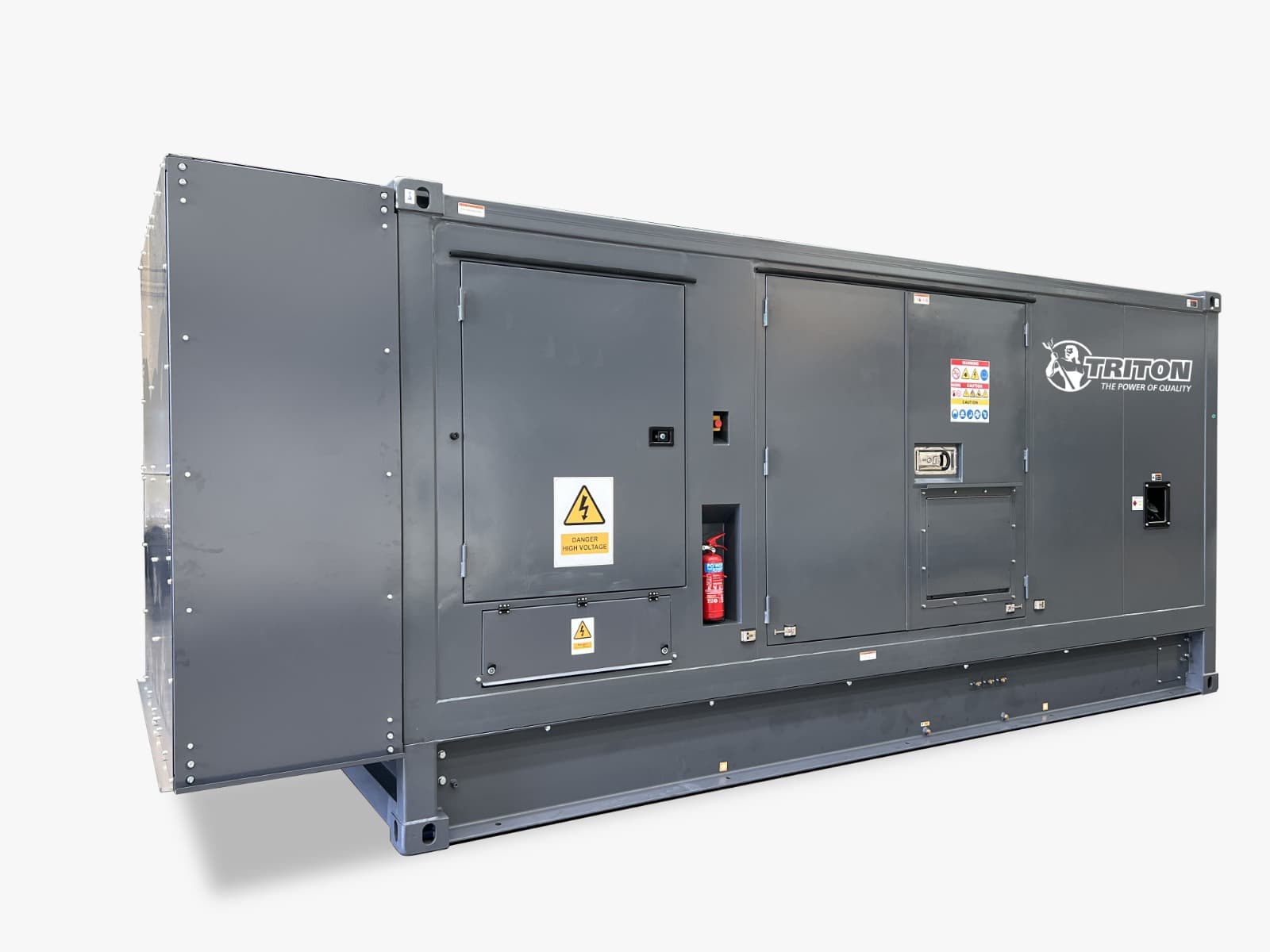

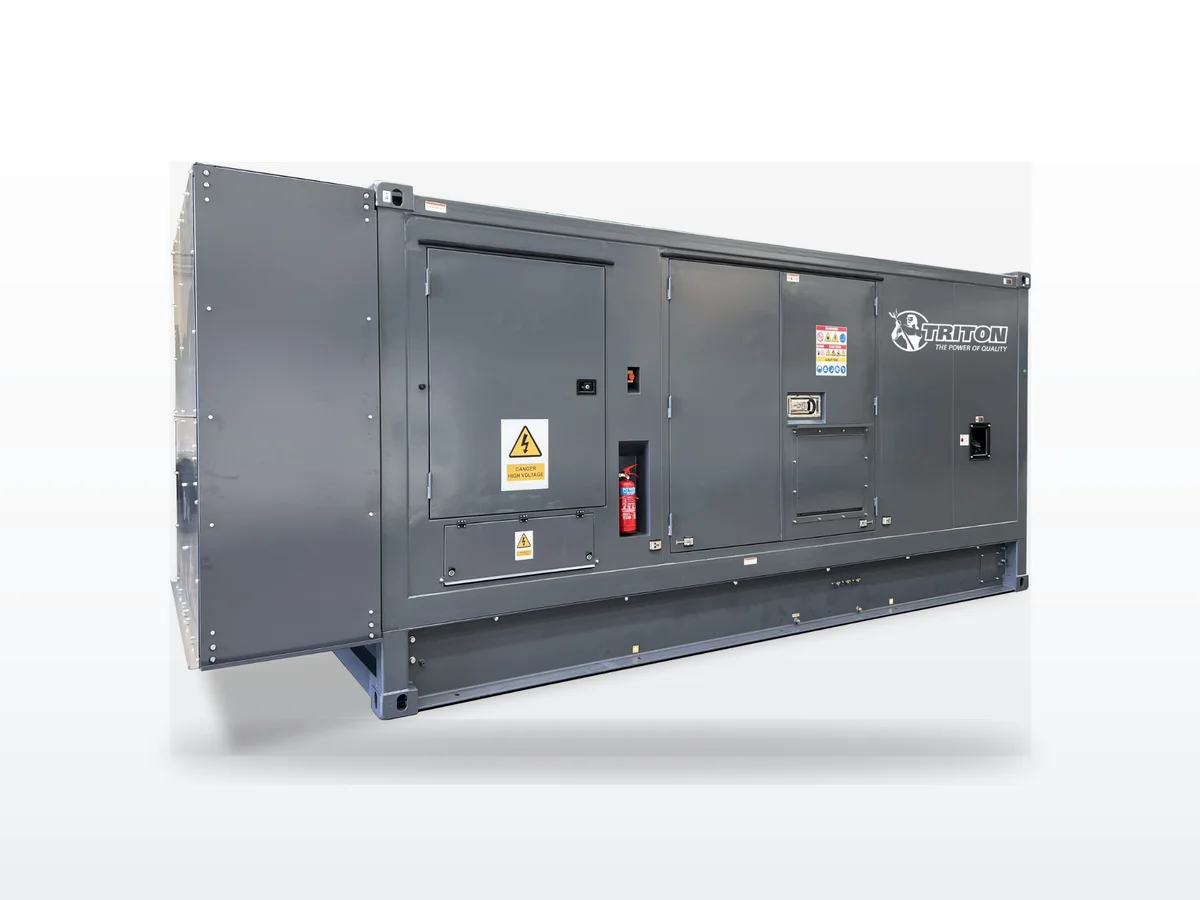

Triton Power Triton Power TP-V550-T4F 550 kW liquid-cooled standby generator

Triton Power

Triton Power TP-V550-T4F

550 kW standby · Diesel · Liquid-cooled

550 kW Tier 4 Final diesel generator with Volvo TWD1672GE engine. For commercial, industrial, and data center standby applications.

Tier 4 Final3-phasecommercial-standbyindustrial

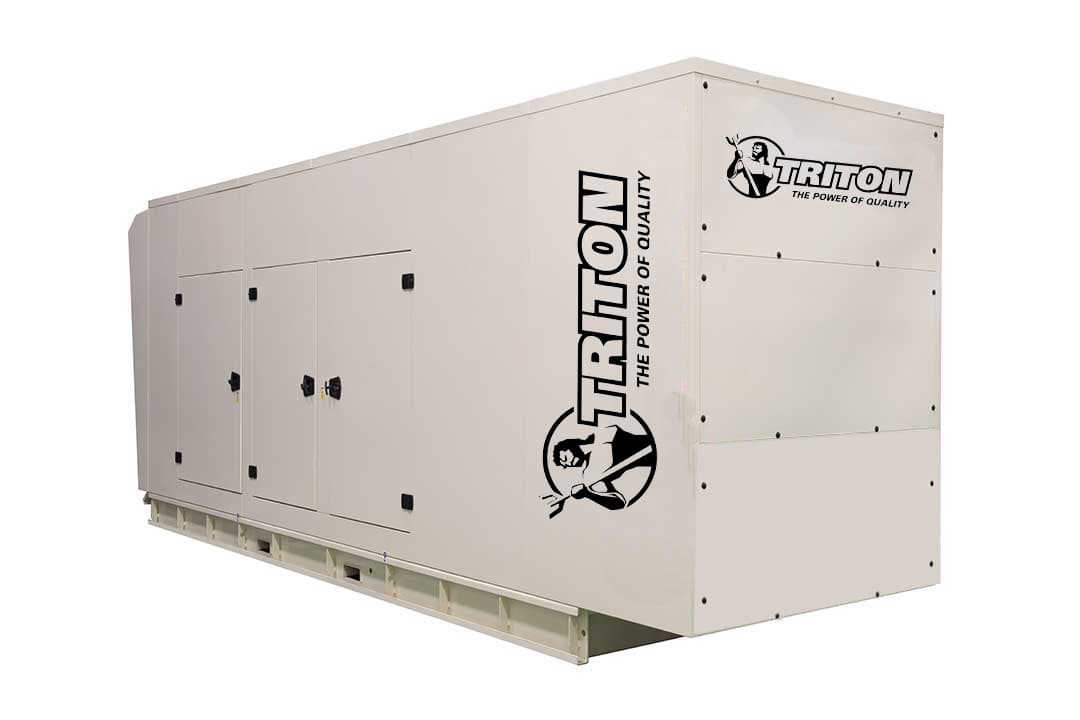

Triton Power Triton Power TP-P750-T2-UL 750 kW liquid-cooled standby generator
