What engine does the Generac SDMD2750 use?

The SDMD2750 uses a Baudouin 16M55 87.5-liter V16 turbocharged and aftercooled diesel engine running at 1800 RPM. The Baudouin M55 platform features a bore of 7.08 inches (180 mm), stroke of 8.46 inches (215 mm), and high-pressure common rail fuel injection. This is the same engine platform used in the SD3000/MD3000 and SD3250/MD3250, rated here at 2750 kW. The engine is EPA Certified for Stationary Emergency applications.

What is the fuel consumption of the Generac SDMD2750?

At standby rating on ultra-low-sulfur diesel, the SDMD2750 consumes approximately 192.5 gallons per hour at 100% load, 148 gph at 75% load, and 107 gph at 50% load. At 75% load, a 48-hour runtime requires over 7,100 gallons of fuel, demanding substantial bulk fuel storage and reliable supply logistics.

What voltages are available for the SDMD2750?

The SDMD2750 is available in two three-phase configurations: 277/480 VAC (approximately 4,140 amps) and 346/600 VAC, both at 0.8 power factor. The standard alternator is a Marathon DataMAX unit purpose-built for data center applications with low reactance for superior motor starting performance.

Generac · SD/MD Series (Industrial Diesel)

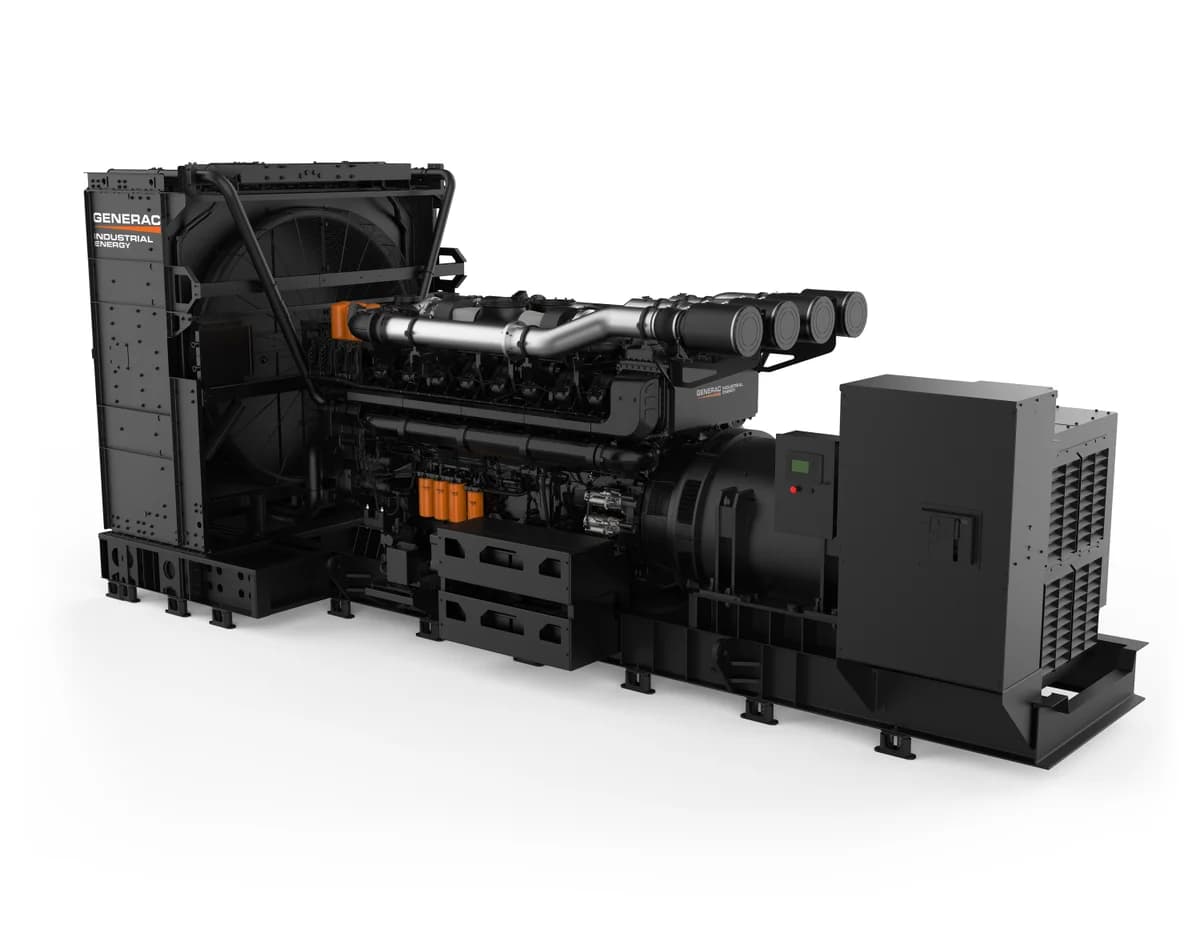

Generac SD2750/MD2750

2750 kW standby · Diesel · Liquid-cooled

2750 kW diesel industrial standby generator. Baudouin 87.5L V16 turbocharged/aftercooled, EPA Certified Stationary Emergency.

Standby power: 2750 kW
Voltage options: 277/480V, 346/600V
Frequency / Phase: 60 Hz · 3-phase
Engine: Baudouin 87.5L · 87.5L
EPA / Emissions: Tier 2
Alternator: Marathon

Commercial Manufacturing Healthcare Data Centers

Configure & Quote Download spec sheet

Overview#

The Generac SD2750/MD2750 is a 2,750-kilowatt industrial diesel generator powered by a Baudouin 16M55 87.5-liter V16 turbocharged and aftercooled diesel engine. This unit is EPA Certified for Stationary Emergency applications and is part of Generac's newest generation of large-frame diesel generators designed specifically for hyperscale data center and mission-critical applications. The SDMD2750 uses the same Baudouin V16 engine platform as the SD3000 and SD3250, with bore and stroke dimensions of 180 mm x 215 mm identical across the range.

Generac pairs the Baudouin engine with a Marathon DataMAX alternator purpose-built for data center applications, emphasizing reliability and low reactance. The Deep Sea Electronics G8601 controller provides comprehensive generator management with advanced PLC functionality, SNMP integration, and IP65-rated display. A redundant starting system with isolated battery banks is available to eliminate single points of failure.

Our Service Experience#

The SDMD2750 is a major infrastructure installation typically specified for hyperscale data centers and large campus microgrids. The Baudouin 87.5L V16 platform shares the same cylinder architecture (bore, stroke, piston, liner) as the SD3000 and SD3250, which means common spare parts and service procedures across the lineup. The high-pressure common rail injection system requires ultra-clean fuel, and we strongly recommend duplex fuel-water separators and regular fuel quality testing for standby applications. The dual-circuit coolant system (high-temperature and low-temperature loops) adds complexity compared to single-circuit designs but provides better thermal management at this power level.

Engineering specifications

Fuel system & runtime

Fuel use @ full load: 192.5 GPH
Fuel use @ 75% load: 148 GPH
Fuel use @ 50% load: 107 GPH

Ready to order this model?

Configure your Generac SD2750/MD2750

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Generac SD2750/MD2750

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

1.3 hours(0.1 days)

Fuel consumption ≈ 148.50 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Generac SD2750/MD2750 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 4000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality / degradation	Hard starting, injector fouling, filter clogging, reduced power output	4,380+	moderate
Turbocharger	Power loss, excessive smoke under load, oil consumption	15,000+	moderate
High pressure common rail injection system	Rough running, misfiring cylinders, fuel rail pressure faults	20,000+	severe
Battery (24 VDC system)	Failed to start, slow cranking	8,760+	minor
Coolant heater	Low coolant temperature alarm, slow start in cold weather	20,000+	minor

Frequently Asked Questions

What engine does the Generac SDMD2750 use?: The SDMD2750 uses a Baudouin 16M55 87.5-liter V16 turbocharged and aftercooled diesel engine running at 1800 RPM. The Baudouin M55 platform features a bore of 7.08 inches (180 mm), stroke of 8.46 inches (215 mm), and high-pressure common rail fuel injection. This is the same engine platform used in the SD3000/MD3000 and SD3250/MD3250, rated here at 2750 kW. The engine is EPA Certified for Stationary Emergency applications.
What is the fuel consumption of the Generac SDMD2750?: At standby rating on ultra-low-sulfur diesel, the SDMD2750 consumes approximately 192.5 gallons per hour at 100% load, 148 gph at 75% load, and 107 gph at 50% load. At 75% load, a 48-hour runtime requires over 7,100 gallons of fuel, demanding substantial bulk fuel storage and reliable supply logistics.
What voltages are available for the SDMD2750?: The SDMD2750 is available in two three-phase configurations: 277/480 VAC (approximately 4,140 amps) and 346/600 VAC, both at 0.8 power factor. The standard alternator is a Marathon DataMAX unit purpose-built for data center applications with low reactance for superior motor starting performance.

Compatible equipment

Transfer switches

Similar models

Generac

Generac SD2500/MD2500

2500 kW diesel in SD/MD platform with Baudouin engine. Cost-competitive with CAT 3516B at lower acquisition cost.

2.5 MW standby · Diesel · Liquid-cooled

2500 kW diesel standby for Tier IV data centers, critical infrastructure, and utility peaking.

2500 kW diesel industrial standby generator. Baudouin 65.6L V12 turbocharged/aftercooled, EPA Tier 2 Certified Stationary Emergency. Data Center Ready.

Tier 23-phasecommercial-standbyindustrial

Generac

Generac SD3000/MD3000

3000 kW diesel -- Generac largest unit. Baudouin engine. Competitive with CAT 3516E at lower acquisition cost.

3 MW standby · Diesel · Liquid-cooled

3000 kW diesel standby for hyperscale data centers, campus microgrids, and utility peak shaving.

3000 kW diesel industrial standby generator. Baudouin 87.5L V16 turbocharged/aftercooled, EPA Tier 2 Certified Stationary Emergency.

Tier 23-phasecommercial-standbyindustrial

Generac

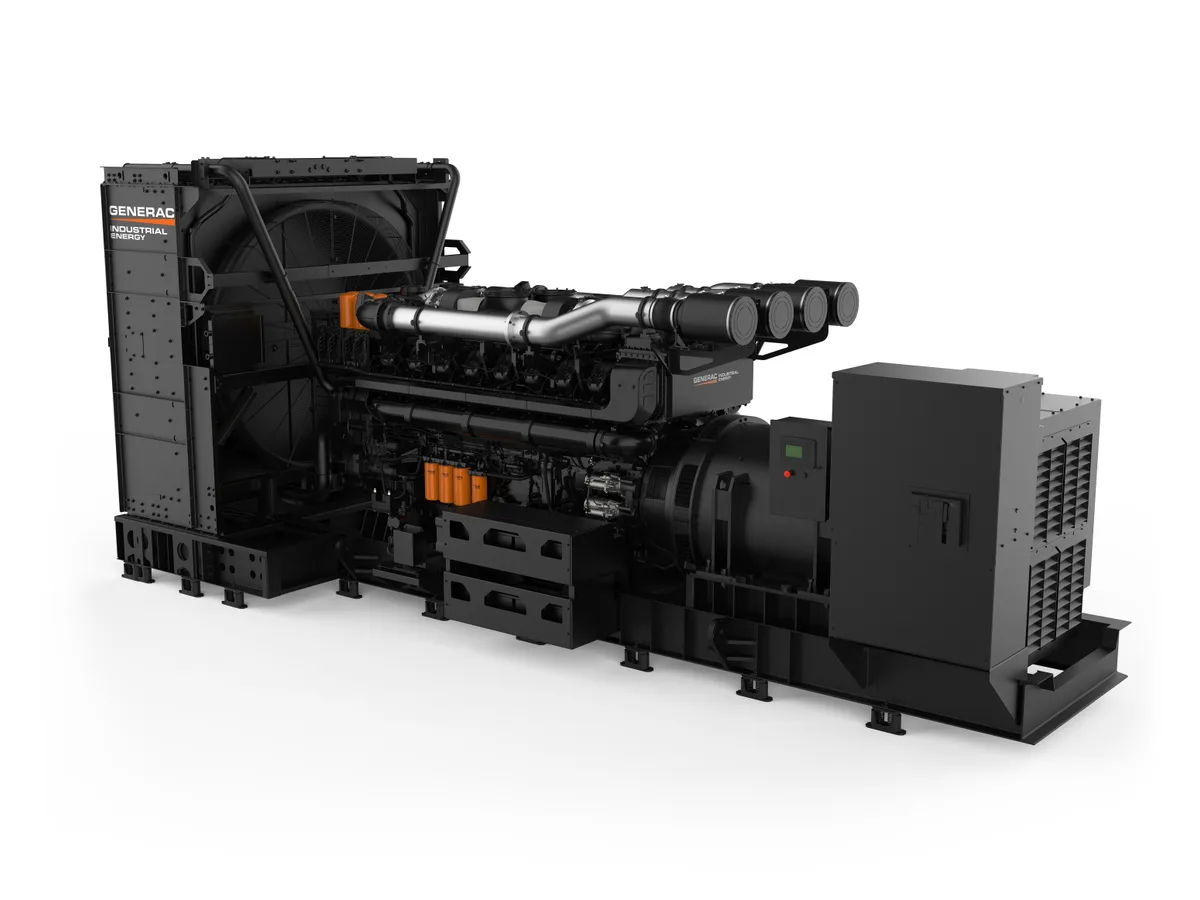

Generac SD2250/MD2250

2250 kW diesel in SD/MD platform with Baudouin engine. Competitive alternative to CAT 3516 class at lower cost.

2.3 MW standby · Diesel · Liquid-cooled

2250 kW diesel standby for hyperscale data centers, large hospitals, and campus microgrids.

2250 kW diesel industrial standby generator. Baudouin 65.6L V12 turbocharged/aftercooled, EPA Tier 2 Certified Stationary Emergency.

Tier 23-phasecommercial-standbyindustrial
