Cummins · Cummins N6 Commercial Gas

Cummins C650 N6

650 kW standby · Natural Gas / LPG · Liquid-cooled

650 kW natural gas standby generator with GTA38 gas engine. 650 kW / 813 kVA standby, PowerCommand controls, AmpSentry protection, UL 2200, EPA certified.

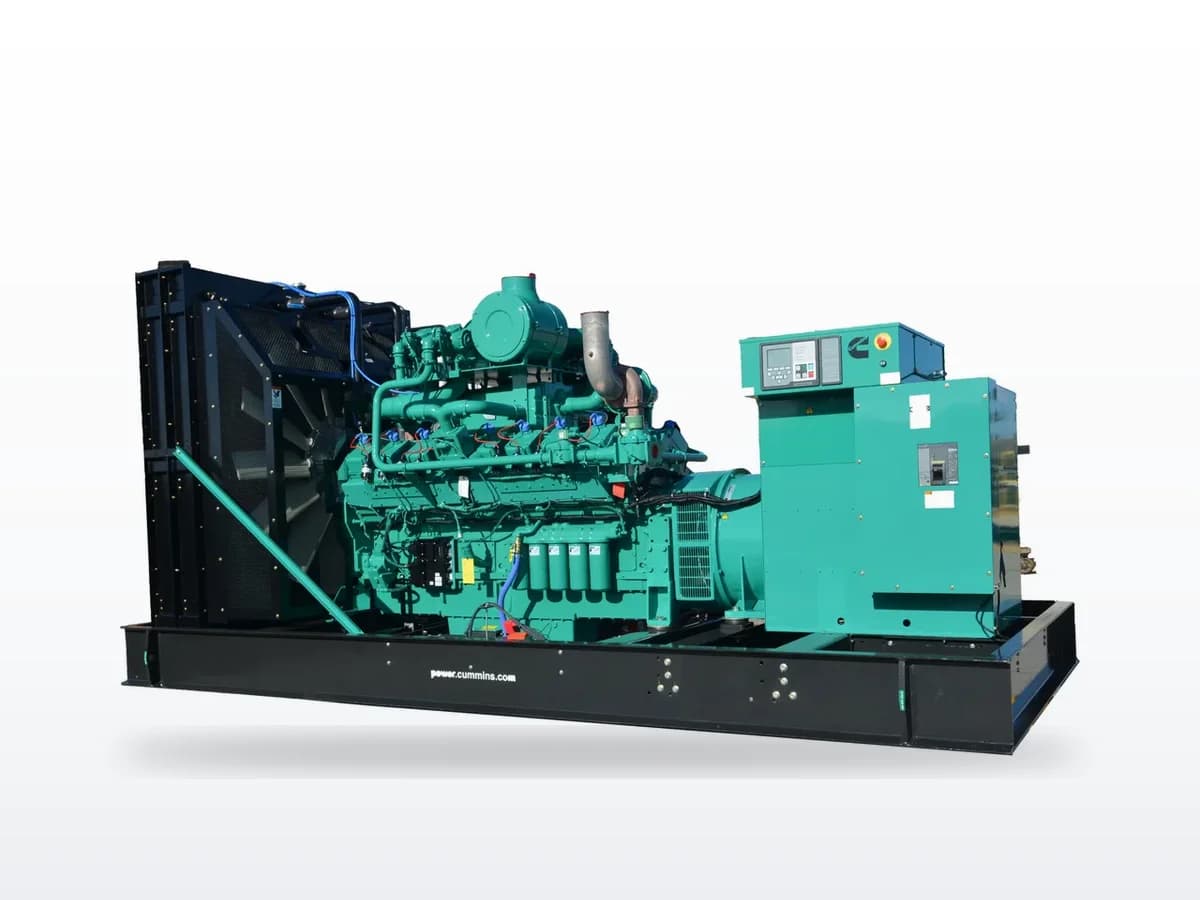

Cummins Cummins C650 N6 generator — specifications and details
Standby power
650 kW
Voltage options
120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Cummins GTA38

Overview#

The Cummins C650 N6 is a 650 kW (813 kVA) standby natural gas generator set powered by the GTA38 gas engine -- a turbocharged and aftercooled spark-ignited engine. This is the higher-output configuration of the same GTA38 platform used in the C600 N6. The unit runs on natural gas or propane vapor (field selectable) and is equipped with PowerCommand controls providing isochronous governing and AmpSentry alternator protection.

The C650 N6 serves large commercial and industrial standby applications where the additional 50 kW over the C600 N6 provides margin for full-building backup. Common installations include hospitals, data centers, large office complexes, and manufacturing facilities where natural gas service eliminates the need for diesel fuel infrastructure.

Technical Specifications#

ParameterValue
Standby Rating650 kW (813 kVA)
Frequency60 Hz
Power Factor0.8
Engine ModelGTA38
Fuel TypeNatural gas / LPG
CoolingLiquid
AspirationTurbocharged and aftercooled
Rated Speed1800 rpm
NG Fuel Consumption (Full Load)~6,500 CFH

Our Service Experience#

The GTA38 at the 650 kW rating runs at the top end of its output range, which makes air-fuel mixture calibration and gas pressure regulation particularly critical. Any deviation in gas supply pressure or air-fuel ratio is more noticeable at maximum output.

Gas supply infrastructure must be sized for approximately 6,500 CFH at full load. A dedicated high-capacity gas meter, 3-inch minimum supply piping, and properly sized pressure regulator are essential.

Frequently Asked Questions#

What engine does the C650 N6 use? The Cummins GTA38 -- the same platform as the C600 N6, rated at 650 kW standby through engine calibration differences.

What is the standby rating of the C650 N6? 650 kW (813 kVA) at 60 Hz, 0.8 power factor. Emergency Standby Power (ESP) rating.

Can PowerGen service the C650 N6 in Northern California? Yes. PowerGen provides authorized Cummins natural gas generator service across the San Francisco Bay Area, Silicon Valley, and Northern California.

Engineering specifications

Ready to order this model?

Configure your Cummins C650 N6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Cummins C650 N6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

6,825,000 BTU/hr≈ 6825.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What engine does the Cummins C650 N6 use?
The C650 N6 is powered by the Cummins GTA38 gas engine -- a turbocharged and aftercooled spark-ignited engine rated for 650 kW standby output at 1800 rpm. This is the higher-output rating of the same GTA38 platform used in the C600 N6.
What is the standby rating of the Cummins C650 N6?
The C650 N6 is rated at 650 kW (813 kVA) standby at 60 Hz, 0.8 power factor. This is an Emergency Standby Power (ESP) rating for both natural gas and propane vapor fuel types.
How does the C650 N6 compare to the C600 N6?
Both use the GTA38 gas engine platform. The C650 N6 is rated 50 kW higher (650 kW vs 600 kW standby). The higher output is achieved through engine calibration differences. Service intervals and maintenance procedures are identical.
Can PowerGen service the C650 N6 in Northern California?
Yes. PowerGen provides authorized Cummins natural gas generator service across the San Francisco Bay Area, Silicon Valley, and Northern California. We handle spark plug service, gas regulator calibration, turbocharger inspection, catalytic converter service, and load bank testing for C650 N6 installations.

Compatible equipment

Similar models

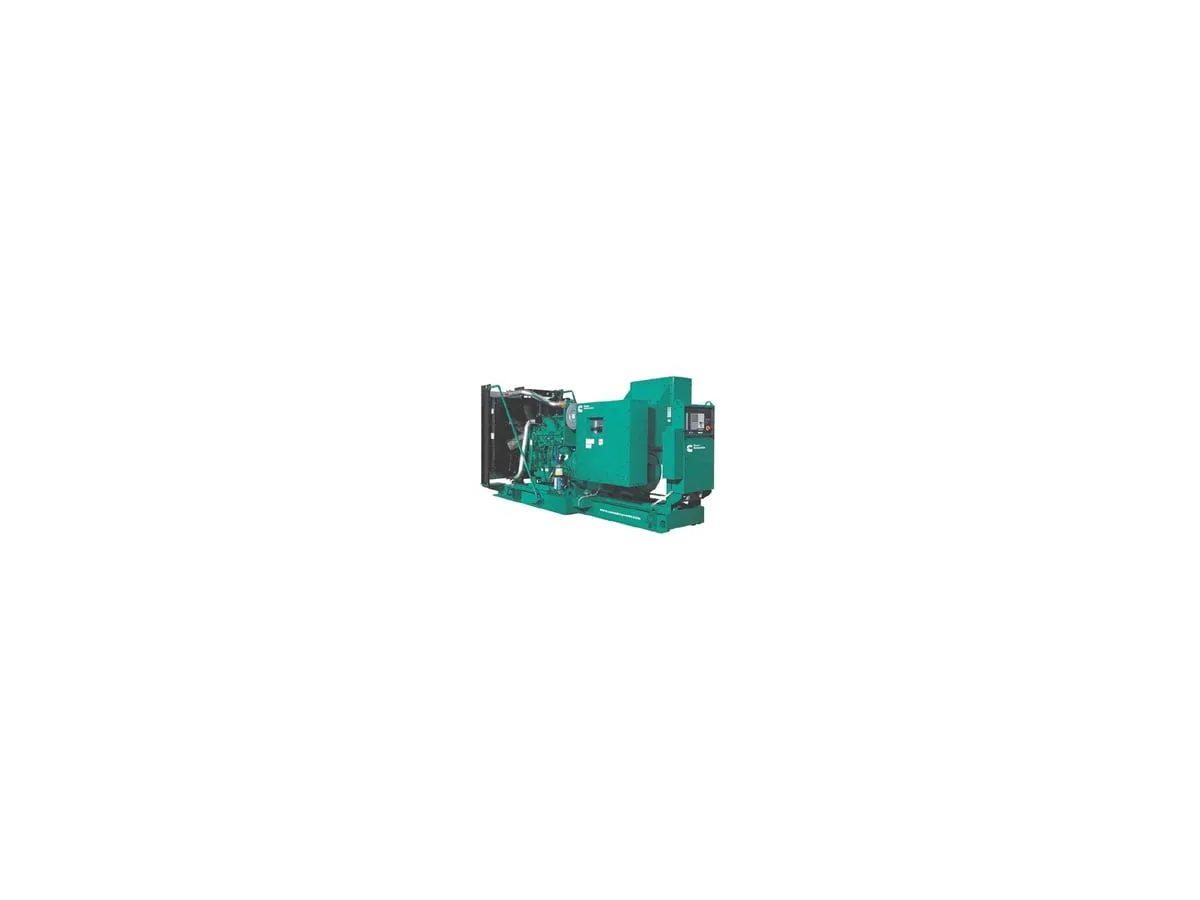

Cummins Cummins C600 D6 600 kW liquid-cooled standby generator

Cummins

Cummins C600 D6

Diesel with the 19-litre, inline-6 Cummins QSK19 engine and its Modular Common Rail fuel System (MCRS).

600 kW standby · Diesel · Liquid-cooled

Diesel standby generator with QSK19 19L inline-6 engine and MCRS fuel injection. EPA Tier 2 compliant, liquid-cooled, for large commercial, industrial, and data center standby applications.

Tier 23-phasecommercial-standbylarge-commercial

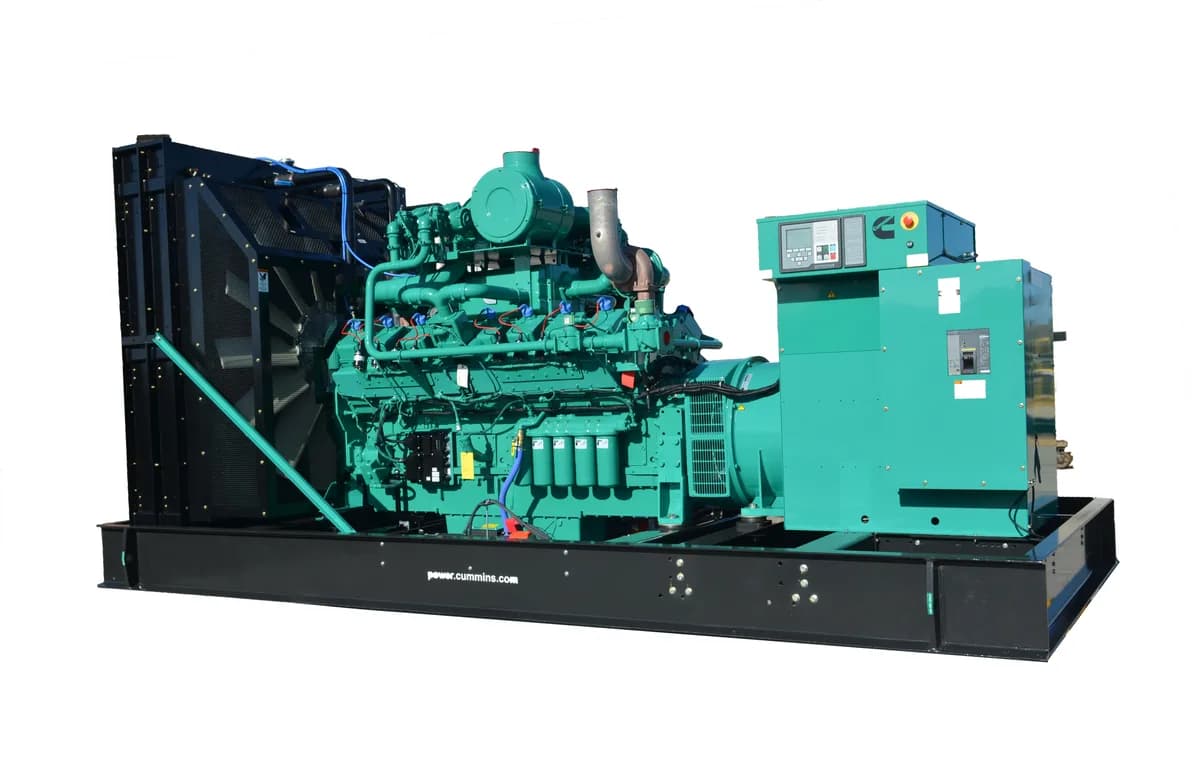

Cummins Cummins C600 N6 600 kW liquid-cooled standby generator

Cummins

Cummins C600 N6

600 kW natural gas standby powered by the GTA38 gas engine. Industrial-grade gas power without diesel fuel infrastructure.

600 kW standby · Natural Gas / LPG · Liquid-cooled

600 kW natural gas standby generator with GTA38 gas engine. 600 kW / 750 kVA standby, PowerCommand controls, AmpSentry protection, UL 2200, EPA certified.

3-phasecommercial-standbyindustrial-standby

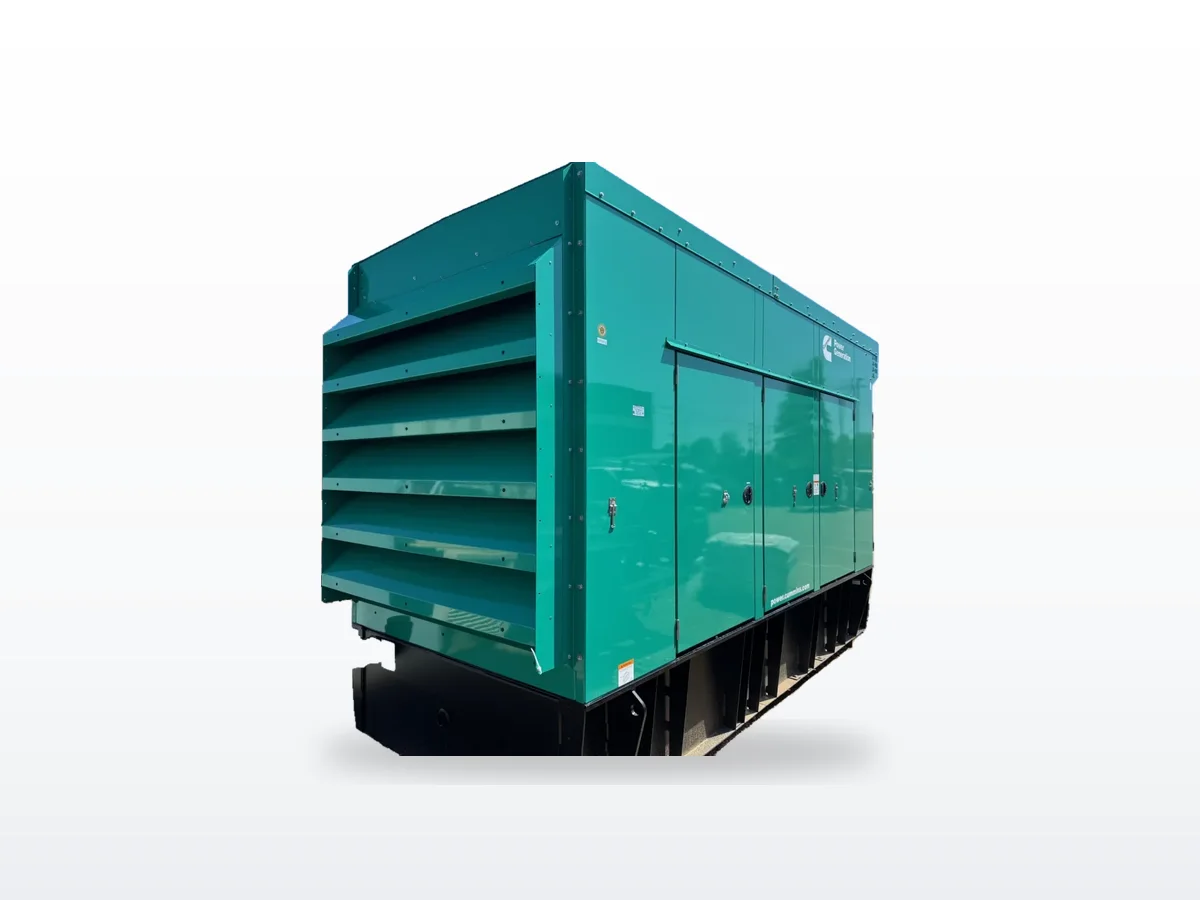

Cummins Cummins C750 N6 750 kW liquid-cooled standby generator
