Blue Star VD400-01

Overview#

The Blue Star VD400-01 is a 400-kilowatt EPA Tier 3 diesel standby generator built around the Volvo Penta TAD1353GE — the peak-output variant of the 12.8L inline-six engine family. At 611 HP, the TAD1353GE extracts the maximum from the 12.8L platform. This is a current-production active model.

Unlike the TAD1351GE (VD300-01) and TAD1352GE (VD350-01), the TAD1353GE is optimized specifically for 1800 RPM operation, reflecting its position as a 60 Hz specialist at the top of the 12.8L range.

The Volvo Penta TAD1353GE platform#

The TAD1353GE tops the 12.8L engine family:

• Same 12.8L displacement as the TAD1351GE and TAD1352GE — identical bore (5.16 in), stroke (6.22 in), and compression ratio (18.1:1)
• Peak output — 611 HP (449 kWm gross), 430 kWm net with fan at 1800 RPM, 19 kW fan power consumption
• 1800 RPM optimized — unlike the dual-speed TAD1351/1352GE, this engine is specifically tuned for 60 Hz genset applications
• V-ACT combustion technology with electronic high-pressure unit injectors, overhead camshaft, and four valves per cylinder
• 3,280 ft altitude ceiling — same as the TAD1352GE (VD350-01)

Variant selection guide#

The VD400-01 is the top of Blue Star's 12.8L Volvo Penta range:

• VD350-01 (350 kW, Volvo TAD1352GE 12.8L) — 50 kW less from the same block, same altitude deration. Choose this if 350 kW meets the load study.

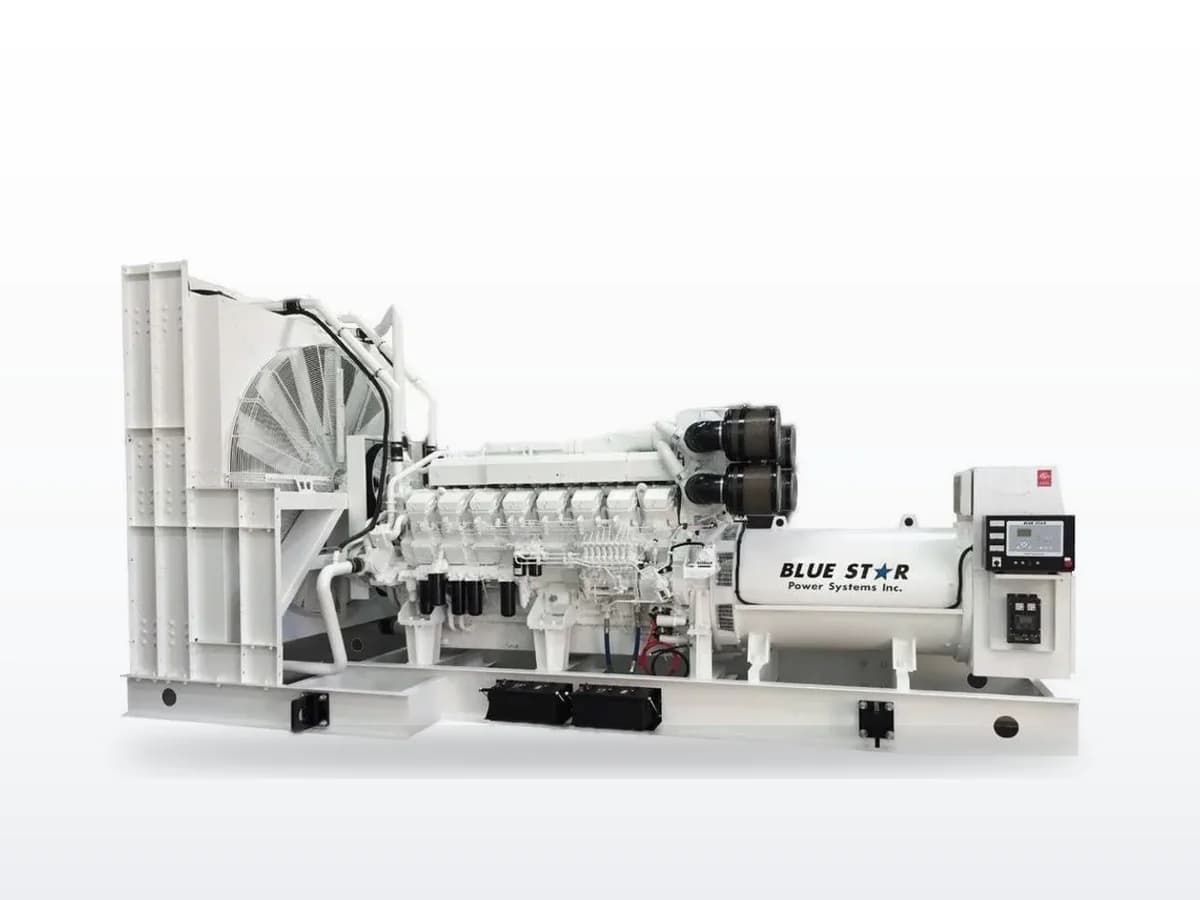

• VD450-01 (450 kW, Volvo Penta) — moves to a larger Volvo Penta engine platform for sites needing more than 400 kW.
• VD300-01 (300 kW, Volvo TAD1351GE 12.8L) — 100 kW less but with a superior 6,560 ft altitude ceiling. Consider for high-altitude sites where 300 kW is sufficient.

When to spec the VD400-01#

• 320-400 kW continuous emergency standby loads on diesel fuel at sites below 3,280 ft elevation
• Large commercial and industrial facilities: hospitals (non-critical), large hotels, manufacturing plants, data center edge deployments
• Applications requiring Tier 3 compliance (most US jurisdictions for stationary emergency standby)
• Competitive bids against Kohler, Cummins, and Generac units in the 350-500 kW class

Our service experience#

The TAD1353GE shares its block, fluid capacities, and filter cross-references with the TAD1351GE and TAD1352GE, keeping service consistency across the 300-400 kW range. The 91 dBA open-skid sound level is notably louder than the VD350-01 (89 dBA) — for noise-sensitive commercial installations, the Level 2 or Level 3 enclosure (79-73 dBA) is typically required. The 3,280 ft altitude deration is adequate for most Bay Area and Central Valley sites, but we verify elevation for foothill installations. The DSE DCP7310 controller and Stamford alternator maintain parts commonality across the Blue Star lineup.#
