Cummins · Cummins QSK Series

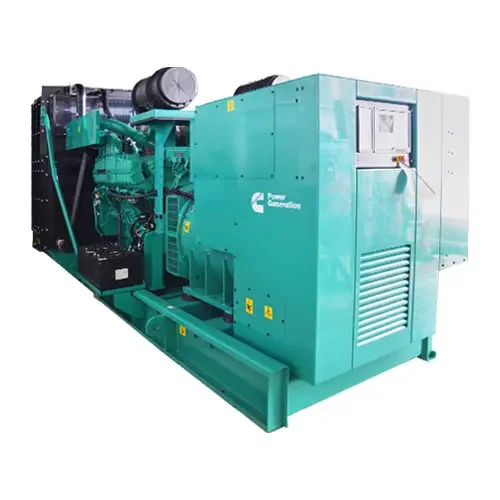

Cummins C750D5

750 kW standby / 680 kW prime · Diesel · Liquid-cooled

Cummins C750D5: 750 kW industrial standby diesel generator powered by the QSK23-G3 engine. Three-phase 277/480V for data centers, hospitals, and critical infrastructure.

Cummins Cummins C750D5 generator — specifications and details
Standby power
750 kW / 680 kW prime
Voltage options
277/480V, 4160V
Frequency / Phase
60 Hz · 3-phase
Engine
Cummins QSK23-G3 · 23L
EPA / Emissions
Tier 2

Overview#

The Cummins C750D5 is a 750 kW industrial standby diesel generator powered by the QSK23-G3 — a 23-liter engine from the Cummins QSK heavy-duty industrial platform. Delivering three-phase 277/480V power at 60 Hz, the C750D5 is designed for data centers, hospitals, water treatment plants, and other mission-critical facilities where reliable high-capacity backup power is essential.

The QSK23 engine features high-pressure common rail fuel injection, full-authority electronic controls, and advanced turbocharging to deliver 750 kW from a compact footprint relative to its output class. The Cummins PowerCommand digital paralleling controller enables multi-unit paralleling arrays for facilities requiring megawatt-scale backup capacity with N+1 redundancy — a standard configuration in Tier III and Tier IV data center designs.

The C750D5 competes in the 750 kW industrial class alongside the Caterpillar C27 (800 kW), MTU 12V1600 DS750, and Kohler 750REOZMD. The QSK23's track record in data center applications and Cummins' global service network make it a frequent specification in critical infrastructure projects where uptime requirements are measured in nines and service response time is a key selection criterion.

Ready to order this model?

Configure your Cummins C750D5

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Cummins C750D5

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

4.9 hours(0.2 days)

Fuel consumption ≈ 40.50 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

Is the Cummins C750D5 suitable for data center applications?
Yes. The C750D5 is designed for Tier III and Tier IV data centers. Its PowerCommand digital paralleling controller supports multi-unit arrays for megawatt-scale backup with N+1 redundancy. The QSK23 engine has a proven track record in Uptime Institute-certified facilities.
How does the C750D5 compare to the Caterpillar C27 generator?
The C750D5 delivers 750 kW from a 23-liter QSK23 engine while the Cat C27 produces up to 800 kW from a 27-liter engine. Both are established data center platforms. The C750D5 benefits from Cummins' global service network, while the Cat C27 leverages the Caterpillar dealer ecosystem.

More in the Cummins QSK Series (Industrial)

Cummins heavy industrial diesel generators — 500–3,750 kW on QSK V12/V16/V18 engines for data centers and critical infrastructure.

Similar models

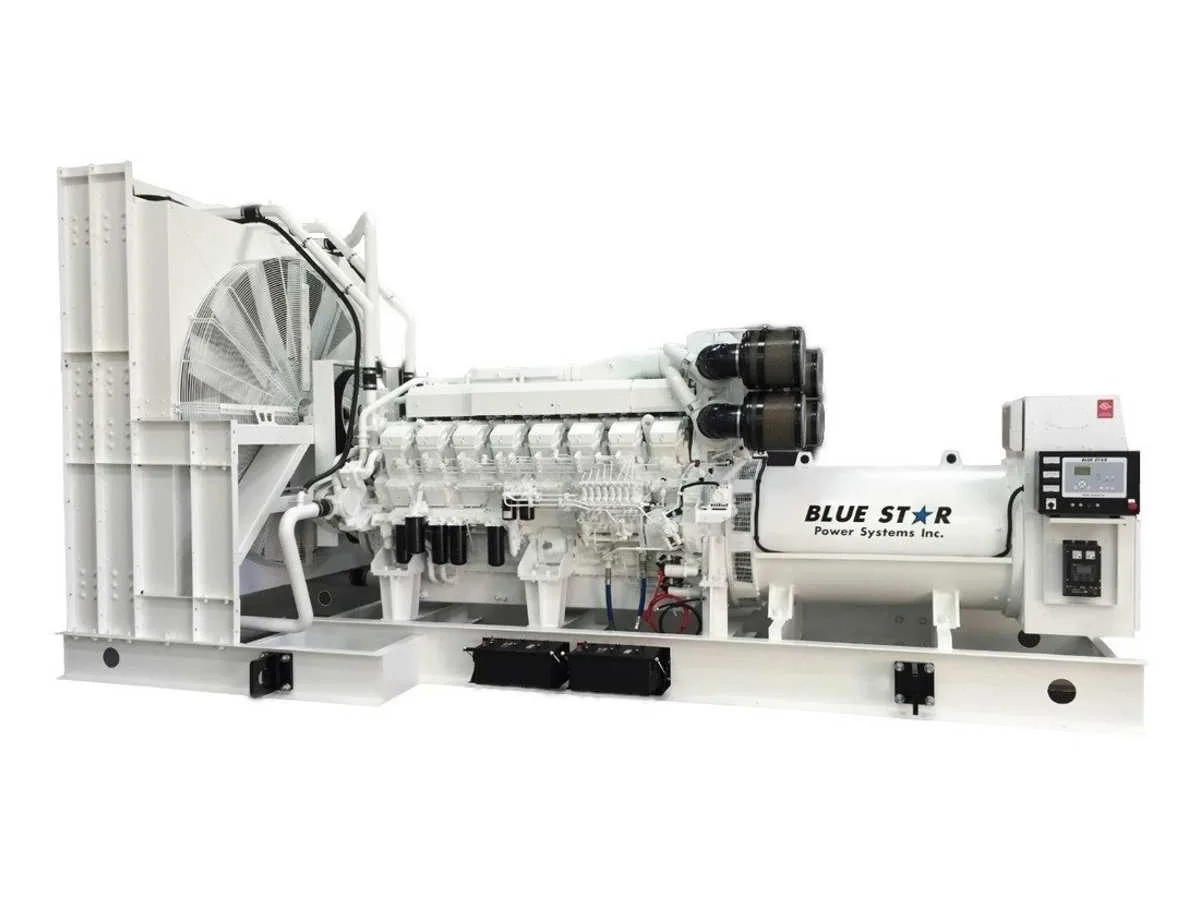

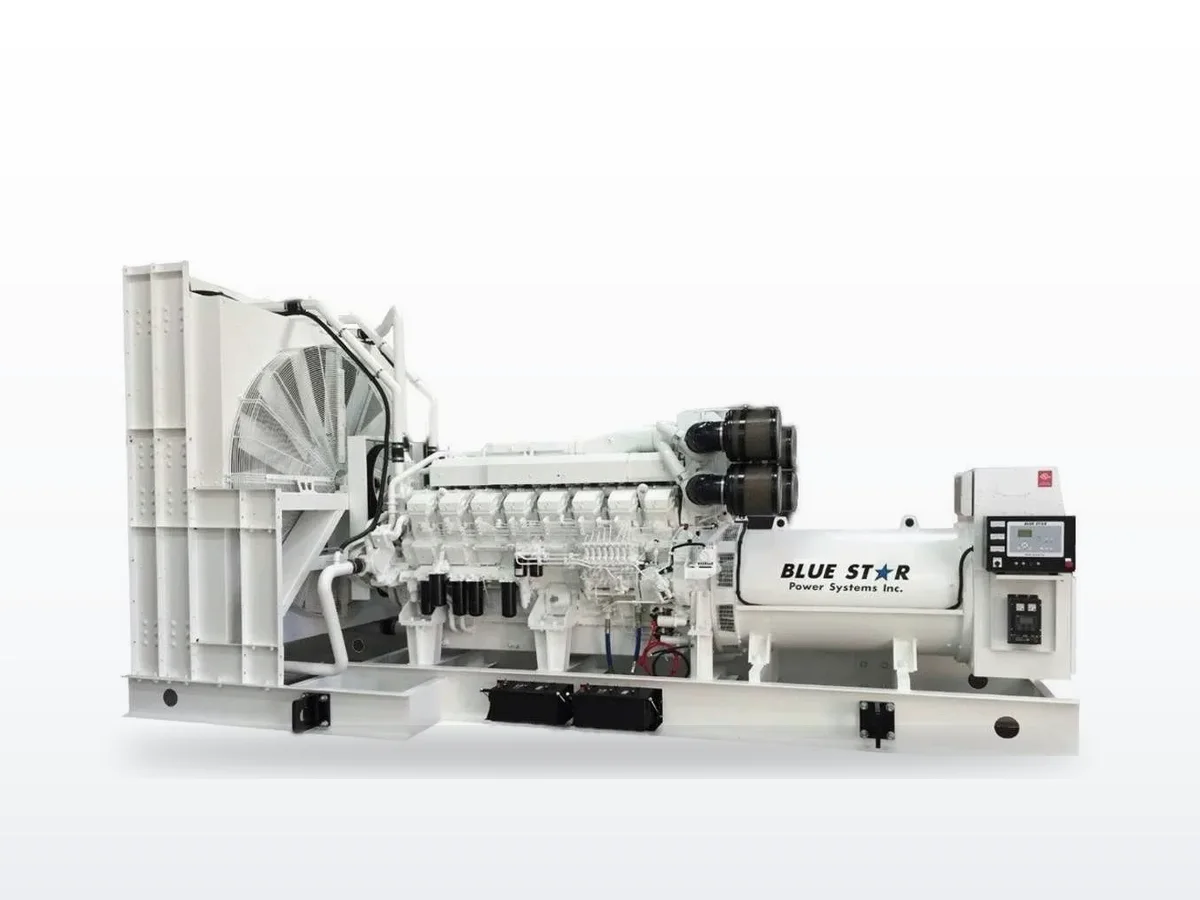

Blue Star Power Systems Blue Star PD750-01 750 kW liquid-cooled standby generator

Blue Star Power Systems

Blue Star PD750-01

750 kW standby · Diesel · Liquid-cooled

750 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Perkins 2806C-E18TTAG7 turbocharged six-cylinder engine, S6L1D-C alternator, DSE DCP7310 controller.

Tier 23-phasecommercialindustrial

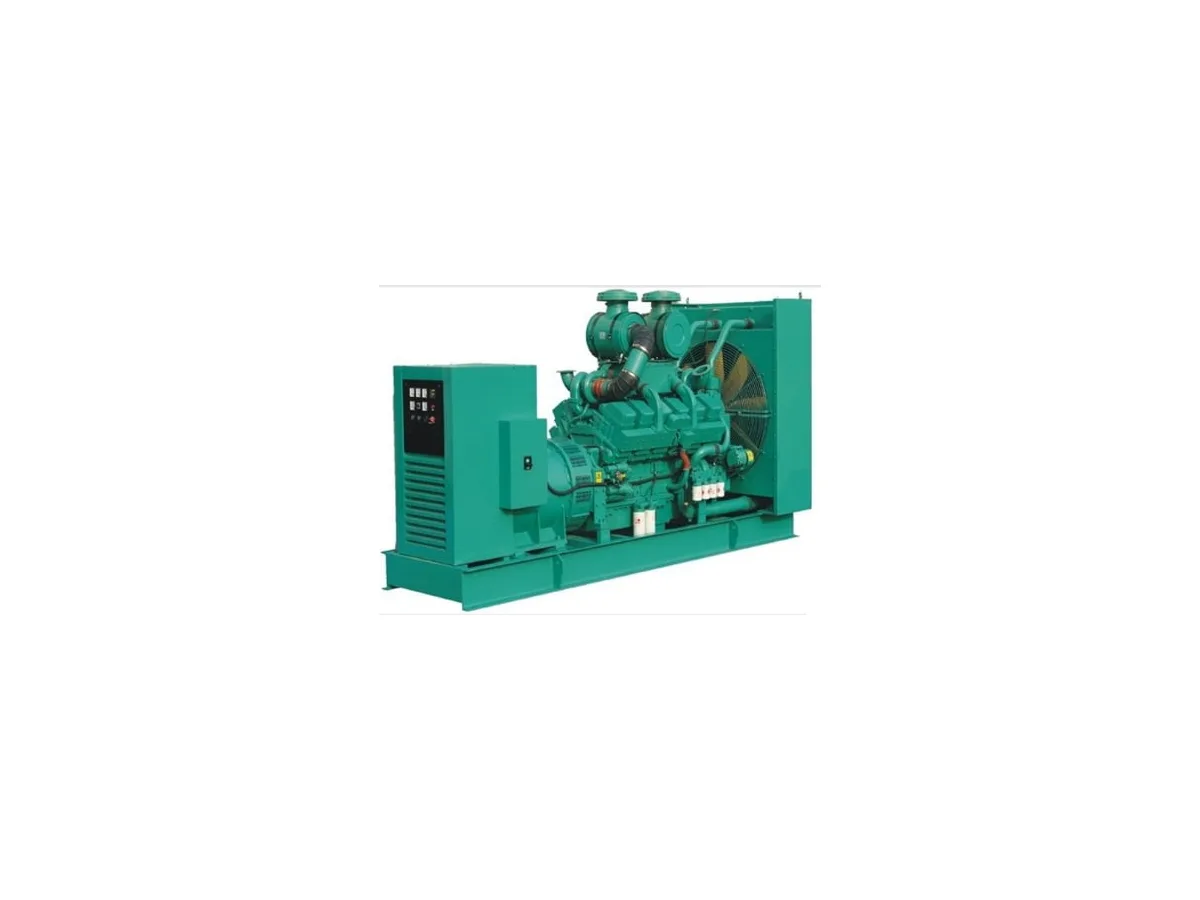

Cummins Cummins C750 D6 750 kW liquid-cooled standby generator

Cummins

Cummins C750 D6

750 kW standby diesel generator set with a Cummins QSK23-G3 engine and the HPI-PT full authority electronic fuel system.

750 kW standby · Diesel · Liquid-cooled

750 kW standby diesel generator set at 60 Hz with a Cummins QSK23-G3 23.1L inline-6 engine and HPI-PT fuel injection, for data center, hospital, and mission-critical standby applications.

3-phasecommercial-standbylarge-commercial

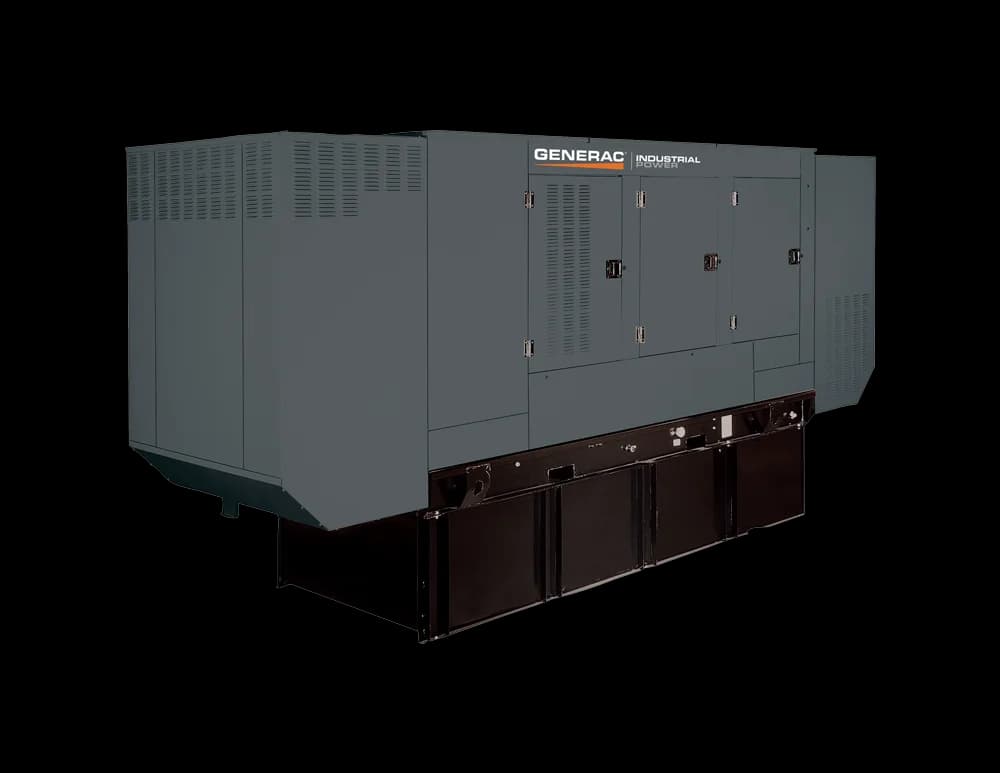

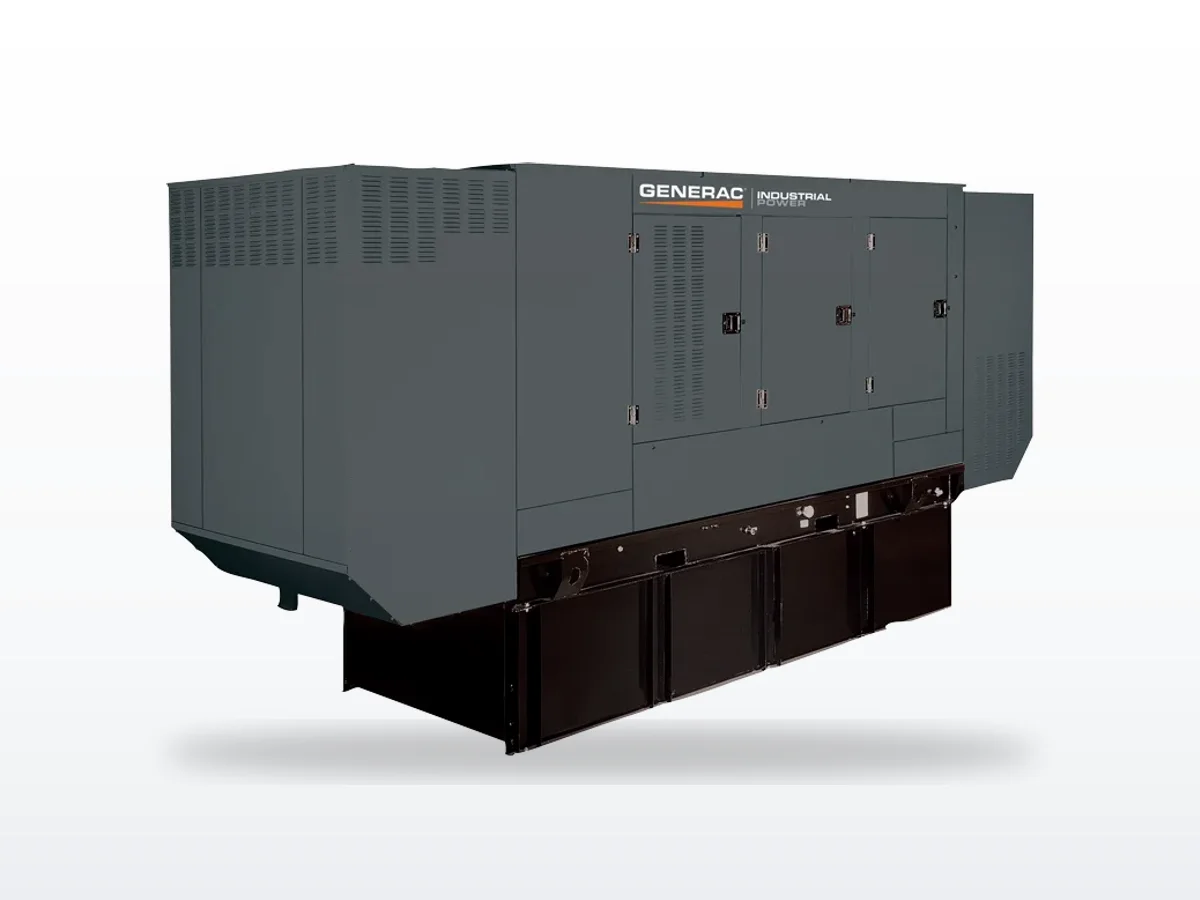

Generac Generac MD750 750 kW liquid-cooled standby generator
