Overview#

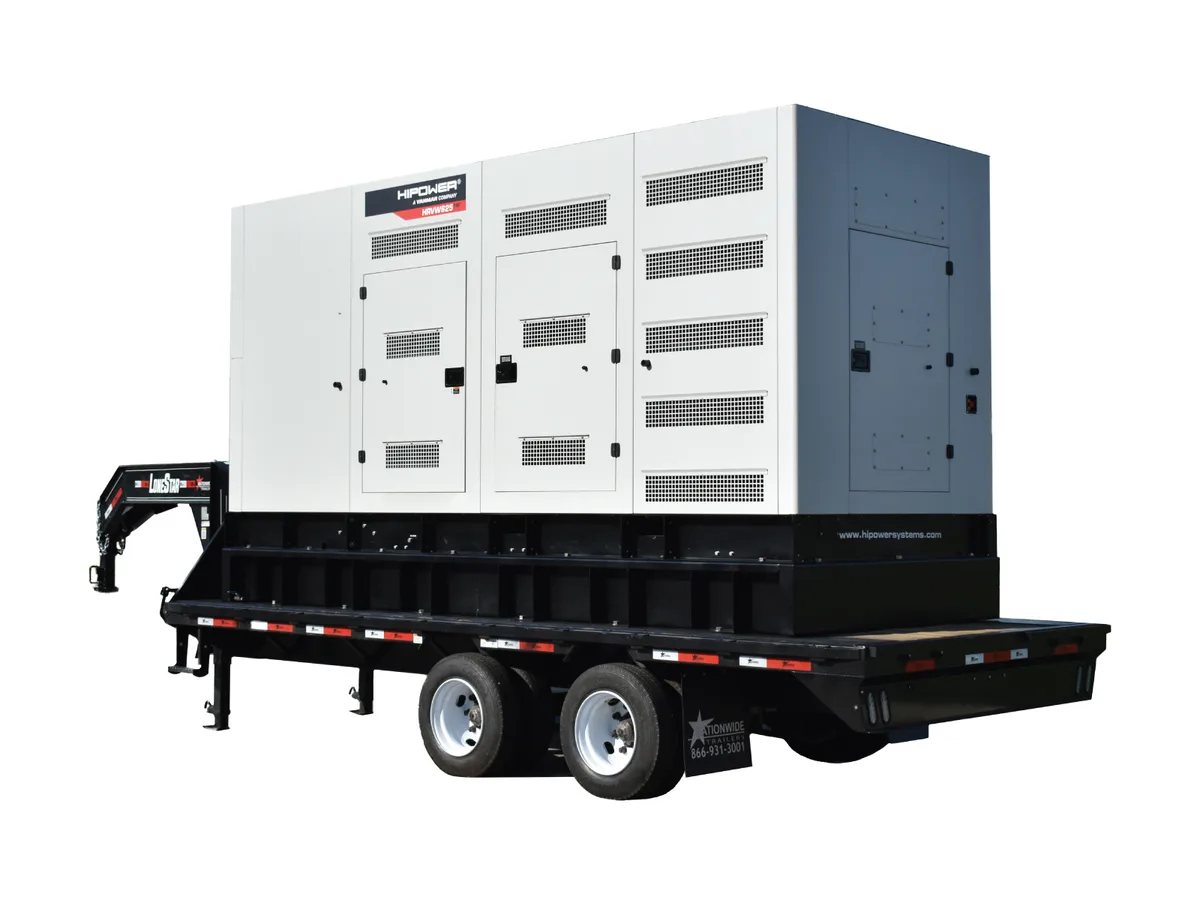

The Hipower HMW-1205 is a 1,205 kW diesel standby generator and the top model in Hipower's MTU 16V2000 range. Built in Olathe, Kansas, it delivers 1.2 MW of critical standby capacity from a single MTU 2000-series engine with the HMW line's full certification portfolio: NFPA 110 Level 1, IBC seismic Zone 4, and 200 mph wind rating. EPA Tier 4 Final and CARB compliance make it the definitive choice for large California mission-critical facilities before entering the MTU 4000 series.
At 1.2 MW, the HMW-1205 is a strategic design point: large enough to serve an entire 1 MW+ data center row from a single unit, or cover a full hospital main essential electrical plant without multiple generators, while still operating within the MTU 2000 series' proven reliability envelope before the step change to 4000-series displacement.
MTU Engine Platform#
The MTU 16V2000 produces its maximum rated standby output in the HMW-1205 configuration. Sixteen cylinders in a V arrangement with approximately 32 liters of displacement and turbocharged-aftercooled induction generate 1,205 kW standby with a 30,000-hour TBO. MTU (Rolls-Royce Power Systems) engineers the 2000 series for MW-class applications where engine reliability over a 20-year facility lifecycle is a primary design requirement.
At 1.2 MW, the 16V2000's high BMEP enables step-load acceptance at the scale required for large UPS battery transfer events and multi-chiller plant starting sequences without frequency excursions that could trip sensitive electronic loads. MTU's SCR Tier 4 Final system maintains full combustion efficiency at this output level, avoiding the fuel consumption and oil degradation penalties associated with EGR-based competitive designs.
Mission-Critical Design#
Standard on all HMW-1205 configurations:
- NFPA 110 Level 1, Type 10: 10-second full-load pickup for life-safety loads — required for large hospital essential systems and hyperscale data center critical buses
- IBC Seismic Zone 4 / SDS 2.0: Pre-certified for California hospital occupancy and data center AHJ permit submittals
- 200 mph wind rating: Qualifies for all US coastal and inland wind exposure categories
- Dual-wall sub-base tank option: Integral secondary containment for NFPA 30, EPA SPCC, and local fire code compliance
- MTU DiASter SCADA integration: Enterprise-class remote monitoring, predictive maintenance analytics, and CARB reporting support
Paralleling Capability#
Two HMW-1205 units in N+1 provide 1.2 MW critical load coverage with 100% standby reserve — the architecture of choice for hyperscale data center row designs at 1.2 MW bus capacity. For 2N designs, two units independently serve the full critical load. Campus-scale deployments use four or more units on a common bus for 2-5 MW aggregate critical capacity with distributed redundancy. Isochronous load sharing and automatic synchronization are standard.
Service and Maintenance#
MTU 16V2000 service at 1,205 kW: 500-hour oil and fuel filter changes (32L displacement — confirm oil volume in operator manual), 1,000-hour air filter, 4,000-hour DEF injector inspection, 8,000-hour SCR catalyst inspection, 30,000-hour major overhaul. At this output level, fuel polishing is mandatory for all sub-base tank configurations — contaminant buildup in high-pressure common-rail systems causes premature injector wear. Planned maintenance must be coordinated within the facility's redundancy schedule. MTU-certified technicians are required for all major service events.
Our Service Experience#
PowerGen serves large-frame MTU-powered Hipower installations throughout Northern California. For HMW-1205 operators, we provide: MTU-certified preventive maintenance, SCR system service, annual load bank testing and NFPA 110 Level 1 compliance documentation, fuel polishing contracts, and 24/7 emergency response. Our technicians hold MTU 2000-series certification and carry factory-level diagnostic tools designed for MW-class installations.
