Series Overview#

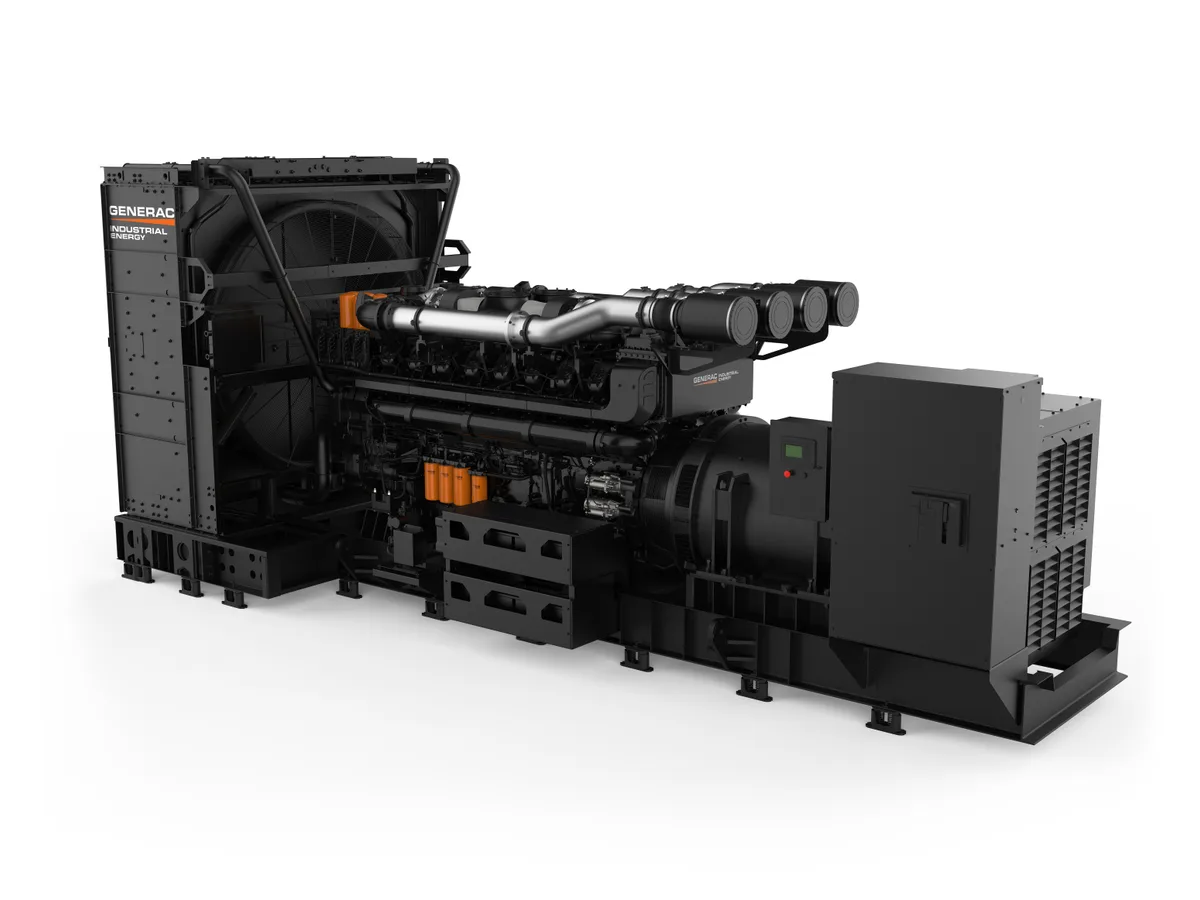

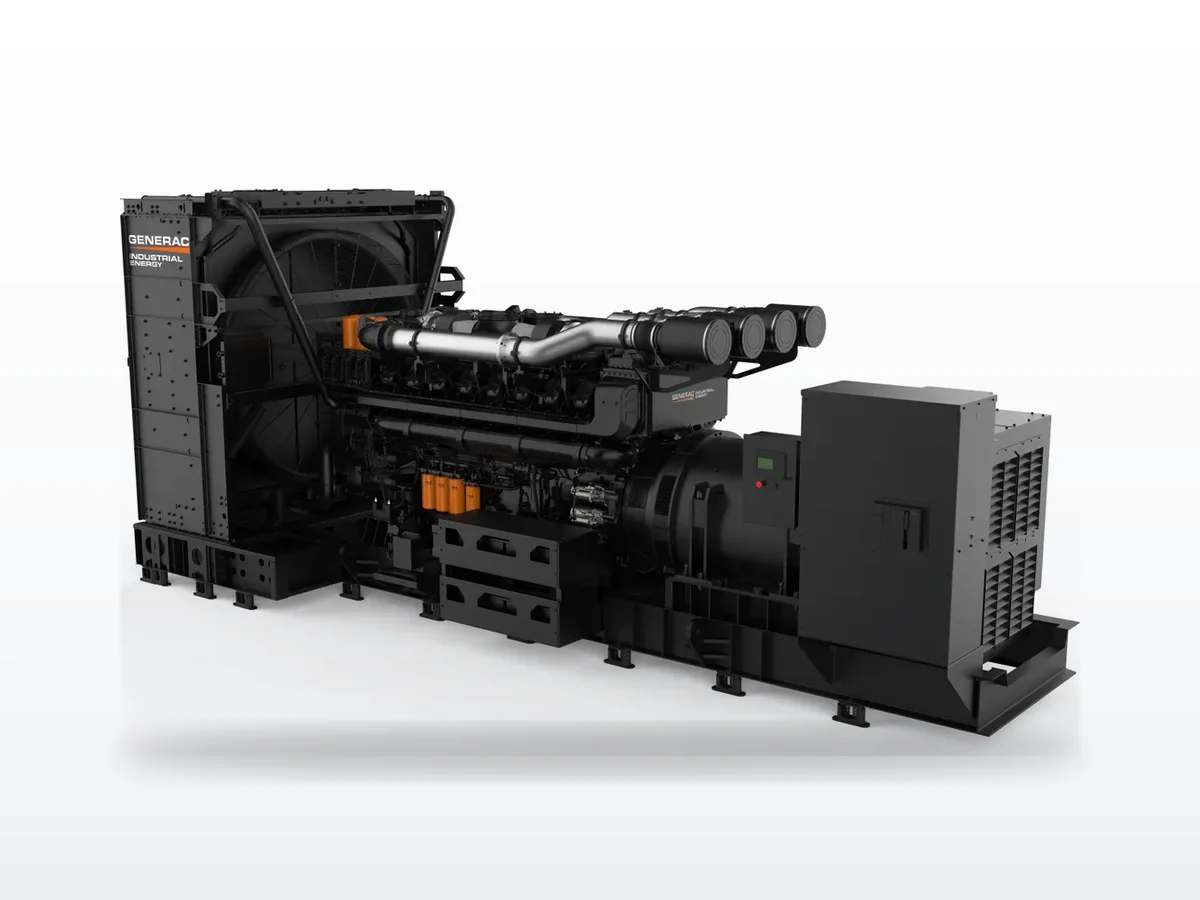

The Generac SD/MD Series is Generac's highest-output industrial diesel generator line, delivering 2,250 to 3,000 kilowatts of standby power from Baudouin V-engine platforms purpose-built for large-scale mission-critical applications. Three models span the range: the SD2250/MD2250 at 2,250 kW, the SD2500/MD2500 at 2,500 kW, and the SD3000/MD3000 at 3,000 kW — the largest single-engine diesel generator in Generac's lineup. All are EPA Tier 2 certified for stationary emergency service and configured for three-phase output at 277/480V or 346/600V.
The SD2250 and SD2500 run on a shared Baudouin 65.6-liter V12 turbocharged and aftercooled diesel engine. The SD3000 uses the larger Baudouin 87.5-liter V16. These are not rebranded commercial truck engines — Baudouin builds purpose-designed generator drive engines with high continuous-duty ratings and deep thermal mass suited to extended load testing and extended outage duration. The high-pressure common rail injection system on the Baudouin V-engines delivers precise fueling at all load points but requires clean, stable diesel fuel and disciplined filter maintenance.
The SD and MD model designations share the same hardware and spec sheets at each power level. The distinction is primarily administrative — buyers should confirm with their Generac distributor whether project submittals require SD or MD nomenclature. For practical specification purposes, they are the same product.
This series targets the largest single-unit standby installations: hyperscale and colocation data centers, major hospital complexes, large campuses with central plant switchgear, and heavy industrial facilities where the economics favor a single large unit over multiple paralleled mid-range generators. Generac's nationwide dealer network, parts availability, and Mobile Link remote monitoring support are available for this series, which is a meaningful advantage for facilities that cannot tolerate extended downtime waiting for specialty engine support.
How to Choose#
The three models in this series are differentiated primarily by standby power requirement, with engine platform as a secondary consideration:
SD2250/MD2250 (2,250 kW standby): Entry point to the series. The Baudouin 65.6L V12 platform at this rating represents the most conservative load on the engine — useful for facilities that need 2 MW continuous with a meaningful reserve margin. The SD2250 also carries a Data Center Continuous Power (DCCP) rating alongside the standby rating; confirm this detail with your distributor for data center submissions.
SD2500/MD2500 (2,500 kW standby): Same Baudouin 65.6L V12 as the SD2250 but calibrated for higher output. The additional 250 kW standby margin is meaningful for facilities that grow over time or that need a true 2 MW continuous rating from a single unit. Higher BMEP on the shared engine means fuel quality control and service adherence become more critical.
SD3000/MD3000 (3,000 kW standby): Generac's largest diesel generator. Requires the Baudouin 87.5L V16, which is a step change in physical size, fuel demand, and service complexity. Best suited for very large data centers, industrial plants, or campuses where avoiding a second generator set justifies the V16 platform's additional service requirements.
For voltage selection, both 277/480V and 346/600V are available across all three models. Choose based on facility bus voltage — there is no performance difference between the two configurations.
Common Applications#
- Hyperscale and colocation data centers: The 2,250–3,000 kW range covers the full UPS module backup requirement for a typical 2–3 MW data hall pod. Single-unit backup per pod eliminates the paralleling complexity of smaller generators and simplifies maintenance scheduling.
- Large hospital campuses: NFPA 110 Type 10 Class X compliance for life-safety, critical, and equipment branches in major medical centers often requires multiple large generators. SD/MD units serve the high-capacity legs of these systems where a single genset covers an entire hospital wing.
- Industrial and manufacturing facilities: Continuous process facilities with large motor loads, HVAC, and utilities infrastructure that cannot tolerate even brief interruptions during utility outages. The Baudouin V-engine's high torque output handles large motor starting loads.
- Campus central plant standby: Universities, government complexes, and corporate campuses with central electrical distribution plants use the SD/MD Series to back the facility's main service entrance, covering all downstream loads from a single point.
- Mission-critical infrastructure: Water treatment plants, telecom central offices, and large transportation facilities where extended outage duration is a planning requirement.
Service & Maintenance#
All SD/MD Series models share the same core service intervals: oil and fuel filter changes every 500 hours or 12 months (whichever comes first), air filter service at 1,000 hours, and coolant replacement at 4,000 hours. The 24 VDC starting battery system requires annual load testing and replacement on a proactive schedule — battery failure is the most common cause of a no-start condition at inspection.
The Baudouin high-pressure common rail injection system is the highest-consequence maintenance item in the series. Fuel quality degradation — water intrusion, microbial contamination, or oxidation in low-turnover standby tanks — causes injector fouling, hard starting, reduced power output, and fuel rail pressure faults. Facilities should implement a fuel polishing and sampling program on any standby tank that does not turn over fuel regularly. This is especially critical given the volume of fuel these large units carry.
Turbocharger condition monitoring at each service interval is recommended. Power loss and excessive smoke under load are early indicators of turbocharger bearing wear on the Baudouin V-engines, and catching these issues early avoids escalation to a full turbocharger replacement during an outage. Coolant heater functionality should be verified at each service visit — low coolant temperature alarm or slow starting in cold weather indicates a heater element or thermostat failure that, if left unaddressed, increases cranking load and starting wear on a very large engine.
