Echo · DGK Series

Echo DGK70F

Name: Echo DGK70F
Brand: Echo
Availability: PreOrder

61.6 kW standby / 56 kW prime · Diesel · Liquid-cooled

70 kVA portable diesel generator with SimulPhase technology. Built in Japan.

Standby power: 61.6 kW / 56 kW prime
Voltage options: 120/240V, 208V, 480V
Frequency / Phase: 60 Hz · 1/3-phase
Engine: Isuzu 4JJ1X · 2.999L
EPA / Emissions: Tier 4 Final

Commercialrental-fleettemporary-powerevents

Configure & Quote Download spec sheet

Overview#

The Echo DGK70F is a 70 kVA portable diesel generator with patented SimulPhase technology for simultaneous single-phase and three-phase output without external transformers. Built in Japan by Yamabiko Corporation (formerly Shindaiwa), this unit is powered by an Isuzu 4JJ1X four-cylinder diesel engine delivering 56 kW prime power. The DGK70F offers triple voltage output — 120/240V, 208V, and 480V — with a 105-gallon fuel tank and 7.4-gallon DEF tank. The sound-attenuated enclosure produces just 61 dBA at 7 meters. Tier 4 Final and CARB compliant.

Isuzu 4JJ1X Engine Platform#

The DGK70F steps up to the Isuzu 4JJ1X engine — a 2.999-liter inline four-cylinder diesel that represents the next displacement tier in Echo's lineup. The 4JJ1X platform is widely deployed across Isuzu commercial vehicles and industrial applications, ensuring excellent parts availability and broad service technician familiarity. The DEF-based selective catalytic reduction (SCR) system, paired with S.E.T. (Smart Emissions Technology), manages Tier 4 Final compliance through active DPF regeneration under light loads — preventing the soot buildup that plagues competitors' aftertreatment systems during low-demand operation. The 7.4-gallon DEF tank supports extended operation between DEF refills.

Our Service Experience#

As authorized service providers in Northern California, we maintain Echo DGK Series generators across the Bay Area and Central Valley. The DGK70F is a strong choice for mid-size construction projects and event power, where its 61 dBA sound level allows operation near occupied spaces without noise complaints. At 3,898 lbs dry weight and 102 x 37.5 x 69 inches, it is towable on a standard trailer. The 105-gallon fuel tank provides genuine full-day runtime at 24+ hours full load. The Isuzu 4JJ1X engine has a well-established service parts network, and the 250-hour oil change interval keeps routine PM straightforward. Echo's 3-year warranty — the longest in the portable class — reflects Yamabiko's confidence in the Shindaiwa engineering heritage behind every unit.

Engineering specifications

Physical

Length: 102 in
Width: 37.5 in
Height: 69 in
Dry weight: 3,898 lb

Acoustic

Sound @ 7m, full load: 62 dBA
Enclosure: Sound-attenuated

Fuel system & runtime

Integral fuel tank: 105 gal
Fuel use @ full load: 4.4 GPH
DEF tank: 7.4 gal

Ready to order this model?

Configure your Echo DGK70F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Echo DGK70F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

30.9 hours(1.3 days)

Fuel consumption ≈ 3.39 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Echo DGK70F under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 250 hours or 12 months
Air filter: Every 500 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 15,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
SimulPhase selector switch	Phase selector relay failure after high-cycle portable use — contact failure leads to output loss on one phase	2,000+	moderate
Fuel filter	Contamination from portable job site fueling — change at 250 hours or sooner in dusty environments	250+	minor
Isuzu injectors	Tip wear from extended low-load operation — run at 50%+ load for extended periods to prevent carbon buildup	8,000+	moderate

Frequently Asked Questions

What is SimulPhase technology on the DGK70F?: SimulPhase is Echo's patented technology that enables simultaneous single-phase and three-phase output from a single generator without external step-down transformers. No other portable generator manufacturer offers this capability. The DGK70F delivers 120/240V single-phase, 208V three-phase, and 480V three-phase output simultaneously, making it highly versatile for construction sites and events running mixed loads across different voltage requirements.
What is the runtime and fuel capacity of the DGK70F?: The DGK70F carries a 105-gallon integral fuel tank with a 7.4-gallon DEF tank and consumes approximately 4.4 gallons per hour at full load (56 kW prime). This provides roughly 24 hours of continuous operation at full load before refueling. At typical 75% loading, runtime extends beyond 30 hours, enabling multi-day operation between fuel stops.
How does the Echo DGK70F compare to MQ Power or Airman at the same kW?: At 70 kVA, the DGK70F competes with the MQ Power DCA-70SSI and Airman SDG65S. The DGK70F's defining advantage is SimulPhase — simultaneous single and three-phase output that no competitor offers. At 61 dBA, it is among the quietest units in the 70 kVA class, making it suitable for noise-sensitive event venues and urban construction. The 105-gallon fuel tank delivers 24+ hours at full load. The 3-year warranty is the longest in the portable segment, backed by Shindaiwa's documented 30,000+ hour field runtimes.
What is the Shindaiwa heritage behind Echo generators?: Echo generators are manufactured by Yamabiko Corporation in Japan, which acquired Shindaiwa — a company with over 50 years of industrial generator manufacturing experience. Shindaiwa-built generators have documented field runtimes exceeding 30,000 hours. The DGK Series carries forward this heritage with Japanese engineering and quality control. Echo backs every DGK unit with a 3-year warranty, the longest in the portable generator class.

Compatible equipment

Engine

Isuzu 4JJ1XEngines

More in the DGK Series

Japanese-built Kubota and Isuzu portables with patented SimulPhase multi-voltage output — 6 to 352 kW, all Tier 4 Final.

View all 14models in this series →

Similar models

Echo

Echo DGK45F

Patented SimulPhase — simultaneous single and three-phase output from one unit, eliminating step-down transformers on mixed-load sites.

40 kW standby · Diesel · Liquid-cooled

Mixed-load construction sites where SimulPhase eliminates transformer cost, and rental fleets discovering Shindaiwa heritage.

45 kVA portable diesel generator with SimulPhase technology. Built in Japan.

Tier 4 Final3-phaseconstructionrental-fleet

Echo

Echo DGK125F

Patented SimulPhase — simultaneous single and three-phase output from one unit, eliminating step-down transformers on mixed-load sites.

110 kW standby · Diesel · Liquid-cooled

Mixed-load construction sites where SimulPhase eliminates transformer cost, and rental fleets discovering Shindaiwa heritage.

125 kVA portable diesel generator with SimulPhase technology. Built in Japan.

Tier 4 Final3-phaseconstructionrental-fleet

MQ Power

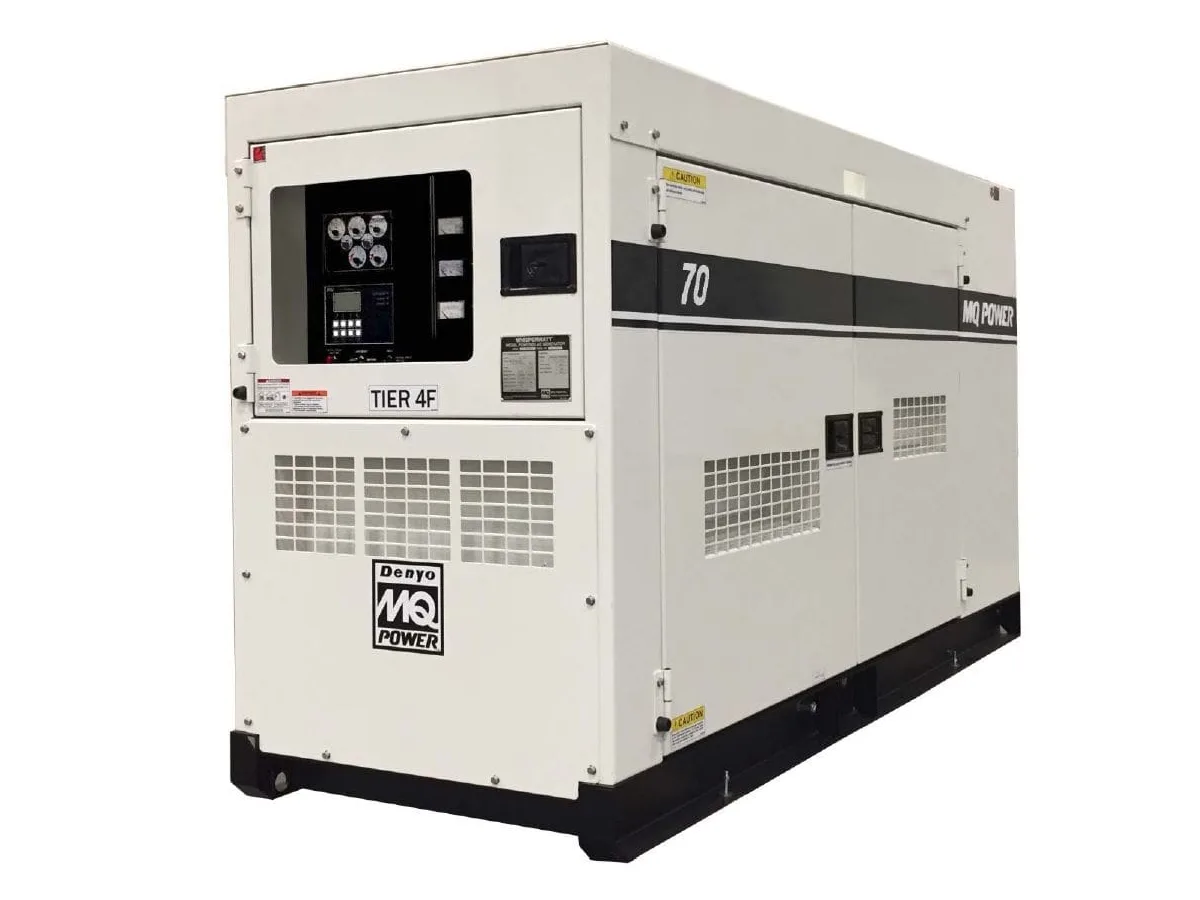

MQ Power DCA-70 WhisperWatt

WhisperWatt 70 kVA — 65 dBA at 7m (same as DCA-25). Isuzu BR-4JJ1X 3.0L, DEF/SCR Tier 4 Final, 103-gal tank, switchable phase.

62 kW standby · Diesel · Liquid-cooled

Commercial temporary power at 56 kW prime. Diesel at 4.4 gph, 103-gal tank for multi-day runtime, film and events.

70 kVA (56 kW prime) portable diesel generator. Quiet WhisperWatt Super-Silent for large construction sites, commercial events, and emergency temporary power.

Tier 4 Final3-phaseconstruction-largerental-fleet

Need service or parts for the Echo DGK70F?

We service every major OEM and stock genuine parts for the most common models.

Get A Quote Or call (209) 229-1990
