Atlas Copco · QAS Series

Atlas Copco QAS 625

Standby: see spec sheet / 500 kW prime · Diesel · Liquid-cooled

500 kW prime diesel portable generator. Volvo TWD1672GE-powered portable generator with 707-gallon tank, AREP excitation, and 300% overcurrent capability.

Standby power
See spec sheet / 500 kW prime
Voltage options
120/240V, 208V, 240V, 277/480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Volvo TWD1672GE · 16L
EPA / Emissions
Tier 4 Final
Commercialrental-fleettemporary-poweremergency-standbyData Centers
Configure & QuoteDownload spec sheet

Overview#

The Atlas Copco QAS 625 delivers 500 kW of prime power from a Volvo TWD1672GE 16-liter diesel engine. It is mounted on a tri-axle trailer platform at 25,679 lb wet weight per the sheet (skid-mounted: 22,119 lb).

The AREP alternator excitation system provides 300% overcurrent starting capabilities for high-inrush motor loads. The 707-gallon integral fuel tank with 110% fluid containment supports extended runtime for large construction projects, data center temporary power, and emergency standby applications. SCR-only aftertreatment keeps the Tier 4 Final system simpler than DPF-equipped competitors.

SCR-only aftertreatment advantage#

The QAS 625 uses SCR-only (Selective Catalytic Reduction) aftertreatment for Tier 4 Final compliance — no diesel particulate filter (DPF). This is a meaningful advantage over DPF-equipped competitors. DPF systems require periodic regeneration cycles that can interrupt operation and add maintenance complexity. The SCR-only approach on the Volvo TWD1672GE requires DEF (Diesel Exhaust Fluid) but avoids regeneration-related downtime and the associated ash cleaning intervals that DPF systems demand.

For data center and critical temporary power applications, the absence of a DPF reduces the risk of unexpected shutdowns from failed or incomplete regeneration cycles.

Our service experience#

The QAS 625 is a serious piece of equipment — 25,679 lb wet on a tri-axle trailer with a 16-liter Volvo engine. Service on units this size requires specialized capabilities, and this is where Atlas Copco's after-sale service weakness becomes most impactful. At 500 kW, every hour of downtime is expensive, and the factory network's pattern of unreturned calls, high travel charges ($311+/hour), and multi-week parts delays is simply not acceptable for critical applications.

The Volvo TWD1672GE engine does benefit from Volvo's industrial engine dealer network for engine-specific service, which provides an alternative channel for major engine work. However, Atlas Copco-specific components — enclosures, control systems, AREP excitation components — must come through Atlas Copco's own supply chain. For QAS 625 owners in Northern California, OnPoint provides local service support with the capability to handle large mobile units and experience across the full QAS lineup from 20 kW to 500 kW.

Engineering specifications

Physical

Length
260 in
Width
102 in
Height
118 in
Wet weight
25,679 lb

Fuel system & runtime

Integral fuel tank
707 gal

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Atlas Copco QAS 625

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Atlas Copco QAS 625

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

26.2 hours(1.1 days)

Fuel consumption ≈ 27.00 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the prime and standby rating of the Atlas Copco QAS 625?
The QAS 625 delivers 500 kW prime power at 480 V three-phase 60 Hz; the sheet states no standby rating.
What engine does the Atlas Copco QAS 625 use?
The QAS 625 is powered by a Volvo TWD1672GE 16-liter inline-6 turbocharged-aftercooled diesel engine running at 1,800 RPM. The TWD1672GE is Volvo's industrial power generation platform with an established dealer network for engine-side service support.
Is the Atlas Copco QAS 625 EPA Tier 4 Final compliant?
Yes. The QAS 625 is EPA Tier 4 Final and CARB compliant, legal for operation throughout California. It uses SCR-only aftertreatment (no diesel particulate filter), which avoids DPF regeneration cycles and associated maintenance complications.
How does the QAS 625 compare to the QAS 700?
The QAS 700 uses the Volvo TWD1683GE 16.1-liter engine delivering 560 kW prime vs. the QAS 625's 500 kW. The QAS 700 is rated at 76 dBA at 7 meters and has a 43.4-gallon DEF tank (the QAS 625 sheet lists 42.3 gallons). Both share a 707-gallon fuel tank.
What fuel does the Atlas Copco QAS 625 use?
The QAS 625 runs on diesel with DEF required for SCR aftertreatment. The 707-gallon integral fuel tank gives 27.5 hours of autonomy at 75% load per the sheet. The 110% fluid containment base eliminates the need for separate secondary containment on most sites.
Who services Atlas Copco generators in Northern California?
PowerGen provides local service support for Atlas Copco QAS units including the Volvo-powered QAS 625 across Northern California. At 500 kW, downtime is expensive — we offer faster scheduling than the Atlas Copco factory service network and experience across the full QAS lineup.

Compatible equipment

More in the QAS Series

Atlas Copco's portable diesel workhorse — 22 to 616 kW, Tier 4 Final, Leroy Somer alternators, 5–8 dB quieter than the competition.

Similar models

Atlas Copco

Atlas Copco QAS 410

Swedish-engineered QAS series.

364 kW standby · Diesel · Liquid-cooled

410 kVA (328 kW prime) portable diesel generator. Swedish-engineered QAS series with Scania engine.

Tier 4 Final3-phaseconstructionrental-fleet

Atlas Copco

Atlas Copco QAS 700

Swedish-engineered QAS series.

Standby: see spec sheet · Diesel · Liquid-cooled

700 kVA (560 kW prime) portable diesel generator. Flagship Swedish-engineered QAS series with Volvo 16.1L engine.

Tier 4 Final3-phaseconstructionrental-fleet

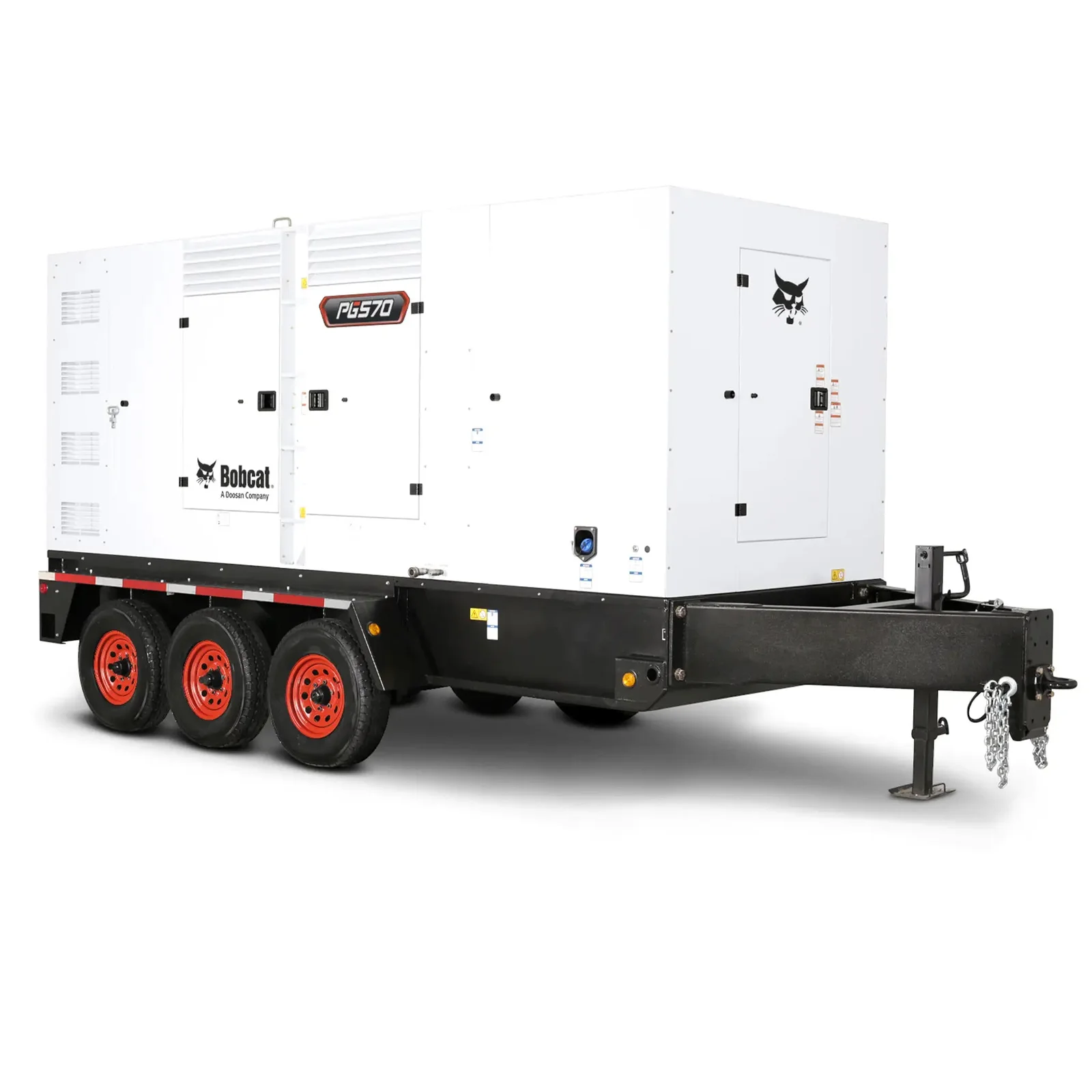

Doosan / Bobcat Doosan G570 500 kW liquid-cooled standby generator
