What is the Cat D900 GC?

The D900 GC is Cat's 900 kW value-engineered diesel generator — the top C27 rating in the GC line. It approaches the 1 MW threshold, making it suitable for data centers and hospitals that need near-megawatt standby from a single unit.

How does the D900 GC compare to the D1000 GC?

The D1000 GC steps up to the C32 engine (32.1L V-12) for a full 1 MW. If your load is under 800 kW actual, the D900 GC on the C27 is the more cost-effective choice. If you need the psychological and engineering threshold of 1 MW per unit, the D1000 GC is the step up.

Emergency? Call (209) 229-1990 — 24/7 response

Caterpillar · Cat D-Series GC (Diesel)

Cat D900 GC

Name: Cat D900 GC
Brand: Caterpillar
SKU: d900-gc

900 kW standby / 815 kW prime · Diesel · Liquid-cooled

900 kW diesel standby generator from Cat's GC value-engineered line. C27 V-12 engine with simplified controls for mission-critical standby.

Cat D900 GC

Specifications & details

Standby power: 900 kW / 815 kW prime
Voltage options: 277/480V, 346/600V
Frequency / Phase: 60 Hz · 3-phase
Engine: Caterpillar C27 · 27L
EPA / Emissions: Tier 2

standbyData Centers Healthcare Commercialparalleling-array

Configure & Quote Download spec sheet

Overview#

The Cat D900 GC is a 900-kilowatt diesel standby generator — the top C27-powered model in Cat's GC value-engineered line. At 900 kW, it approaches the megawatt threshold, serving data centers, hospitals, and campus facilities that need near-MW capacity from a single unit.

Near-megawatt from the C27#

900 kW represents the maximum the C27 V-12 delivers in the GC line. For facilities that don't quite need a full megawatt, the D900 GC provides substantial power from a proven platform without stepping up to the larger C32 engine.

Our service perspective#

The D900 GC runs the C27 at its highest GC output. We prioritize cooling system monitoring and turbocharger health at this rating. The C27 is well within its design envelope, but operating near maximum output means preventive maintenance discipline directly impacts reliability.

Engineering specifications

Physical

Length: 176 in
Width: 70 in
Height: 90 in
Wet weight: 14,800 lb

Fuel system & runtime

Fuel use @ full load: 61 GPH
Fuel use @ 75% load: 46 GPH

Ready to order this model?

Configure your Cat D900 GC

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Cat D900 GC

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

4.3 hours(0.2 days)

Fuel consumption ≈ 47.06 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Cat D900 GC under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality	Injector fouling, filter clogging	4,380+	moderate
Turbocharger(s)	Reduced power, oil in intake, turbo noise	18,000+	moderate
Battery banks	Slow crank, failed 10-second start	8,760+	minor
Coolant heater	Cold start issues, block heater element failure	10,000+	minor

Frequently Asked Questions

What is the Cat D900 GC?: The D900 GC is Cat's 900 kW value-engineered diesel generator — the top C27 rating in the GC line. It approaches the 1 MW threshold, making it suitable for data centers and hospitals that need near-megawatt standby from a single unit.
How does the D900 GC compare to the D1000 GC?: The D1000 GC steps up to the C32 engine (32.1L V-12) for a full 1 MW. If your load is under 800 kW actual, the D900 GC on the C27 is the more cost-effective choice. If you need the psychological and engineering threshold of 1 MW per unit, the D1000 GC is the step up.

Similar models

Caterpillar

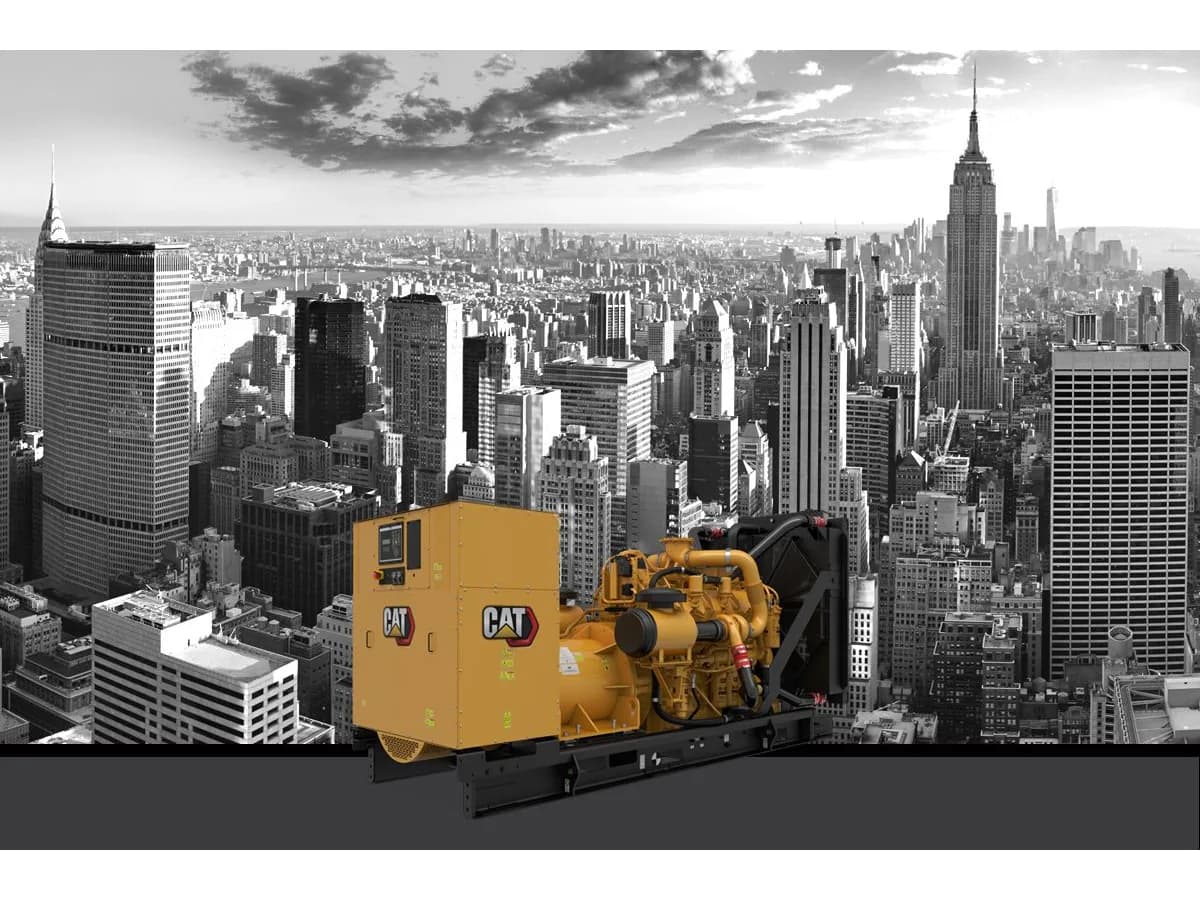

Cat C27
