What is the Cat D700 GC?

The D700 GC is the top C18-powered model in Cat's GC value-engineered line — 700 kW from the 18.1L inline-6. It represents the maximum inline-6 output before stepping up to V-configuration engines in the D800 GC and above.

Should I choose the D700 GC or step up to the D800 GC?

The D800 GC moves to the C27 V-12 engine — a fundamentally different platform. If 700 kW covers your load, the D700 GC's inline-6 is simpler to maintain. If you need growth capacity beyond 700 kW, the D800 GC's V-12 provides room to grow.

Emergency? Call (209) 229-1990 — 24/7 response

Caterpillar · Cat D-Series GC (Diesel)

Cat D700 GC

Name: Cat D700 GC
Brand: Caterpillar
SKU: d700-gc

700 kW standby / 635 kW prime · Diesel · Liquid-cooled

700 kW diesel standby generator from Cat's GC value-engineered line. C18 turbocharged inline-6 with simplified controls for institutional standby.

Cat D700 GC

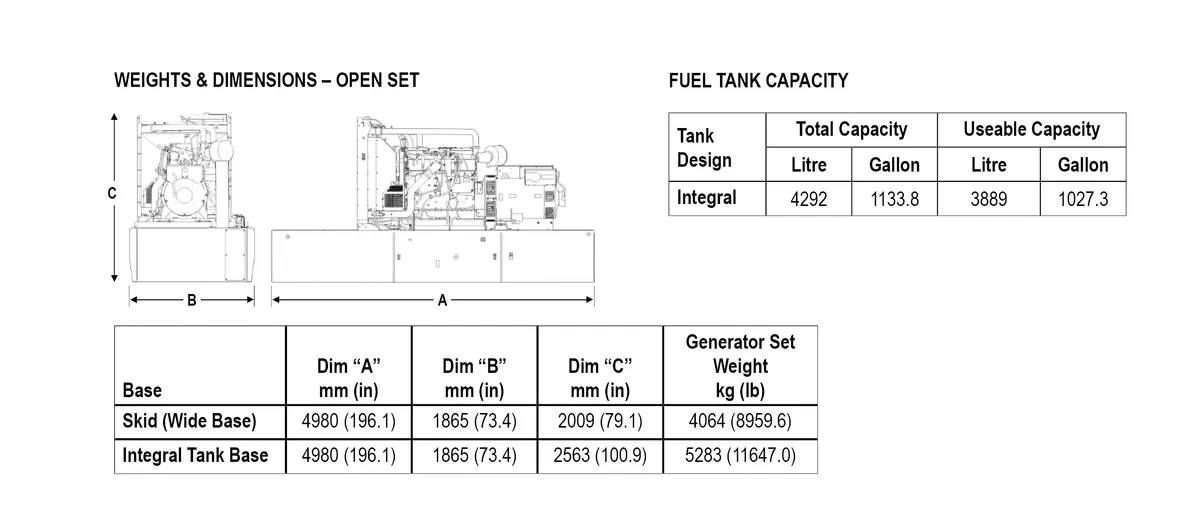

Specifications & details

Standby power: 700 kW / 635 kW prime
Voltage options: 277/480V, 346/600V
Frequency / Phase: 60 Hz · 3-phase
Engine: Caterpillar C18 · 18.1L
EPA / Emissions: Tier 4 Final

standbyHealthcare Data Centers Commercialhigh-risemanufacturing

Configure & Quote

Overview#

The Cat D700 GC is a 700-kilowatt diesel standby generator — the top C18-powered model in Cat's GC value-engineered line. It delivers the maximum output from Cat's largest inline-6 before the step up to V-configuration engines at 800 kW and above.

Last of the inline-6 range#

At 700 kW, the D700 GC represents the upper limit of inline-6 power in the GC line. Above this, Cat transitions to the C27 V-12 engine. For facilities where 700 kW covers the standby requirement, the inline-6 offers maintenance simplicity and a more compact footprint than a V-12 at similar power.

Our service perspective#

The D700 GC runs the C18 near its maximum GC rating. Cooling system performance and turbocharger health are key monitoring points at this output level. The inline-6 layout provides excellent service access — significantly easier than V-12 engines at comparable power.

Ready to order this model?

Configure your Cat D700 GC

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Cat D700 GC

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

5.3 hours(0.2 days)

Fuel consumption ≈ 37.80 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the Cat D700 GC?: The D700 GC is the top C18-powered model in Cat's GC value-engineered line — 700 kW from the 18.1L inline-6. It represents the maximum inline-6 output before stepping up to V-configuration engines in the D800 GC and above.
Should I choose the D700 GC or step up to the D800 GC?: The D800 GC moves to the C27 V-12 engine — a fundamentally different platform. If 700 kW covers your load, the D700 GC's inline-6 is simpler to maintain. If you need growth capacity beyond 700 kW, the D800 GC's V-12 provides room to grow.
