What is the standby rating of the Hipower HTW-1600?

The HTW-1600 delivers 1,600 kW standby power at 277/480V or 347/600V three-phase. It is the top-end of Hipower's HMW/HTW lineup, targeting Tier III+ data centers and large hospital campuses requiring sub-2 MW standby in a single unit.

What MTU engine powers the HTW-1600?

The HTW-1600 uses an MTU (Rolls-Royce Power Systems) 16V4000-series engine — a 16-cylinder V-configuration turbocharged-aftercooled diesel rated for 30,000+ hour TBO. The 4000 Series is MTU's flagship heavy-duty platform used in power generation, marine, and rail applications worldwide.

What are the service intervals for the HTW-1600?

Oil and filter changes are due every 500 hours or 12 months. Air filter replacement at 1,000 hours. The MTU 4000-series DEF dosing injector should be inspected every 4,000 hours. Major engine overhaul interval is 30,000 hours.

Is the HTW-1600 EPA Tier 4 Final compliant for California?

Yes. The HTW-1600 is EPA Tier 4 Final and CARB compliant, qualifying for unrestricted installation throughout California. The MTU 4000-series engine uses SCR aftertreatment requiring DEF.

How does the HTW-1600 compare to a Cummins C1500 or CAT 3516?

All three are competitive at 1.5–1.6 MW. MTU's 4000 series has the highest TBO (30,000 hours vs CAT 3516's ~25,000 hours) and the highest power density. Cummins and CAT have broader NorCal dealer service networks. OnPoint services all three platforms.

Who services the HTW-1600 in Northern California?

PowerGen provides local service for MTU-powered generator sets in the Bay Area and Northern California. The MTU dealer network is thinner than John Deere or Cummins in NorCal — having a local independent service provider experienced with the 4000-series platform is important for fleet operators.

Hipower Systems · HMW Series (Heavy Duty Industrial Diesel)

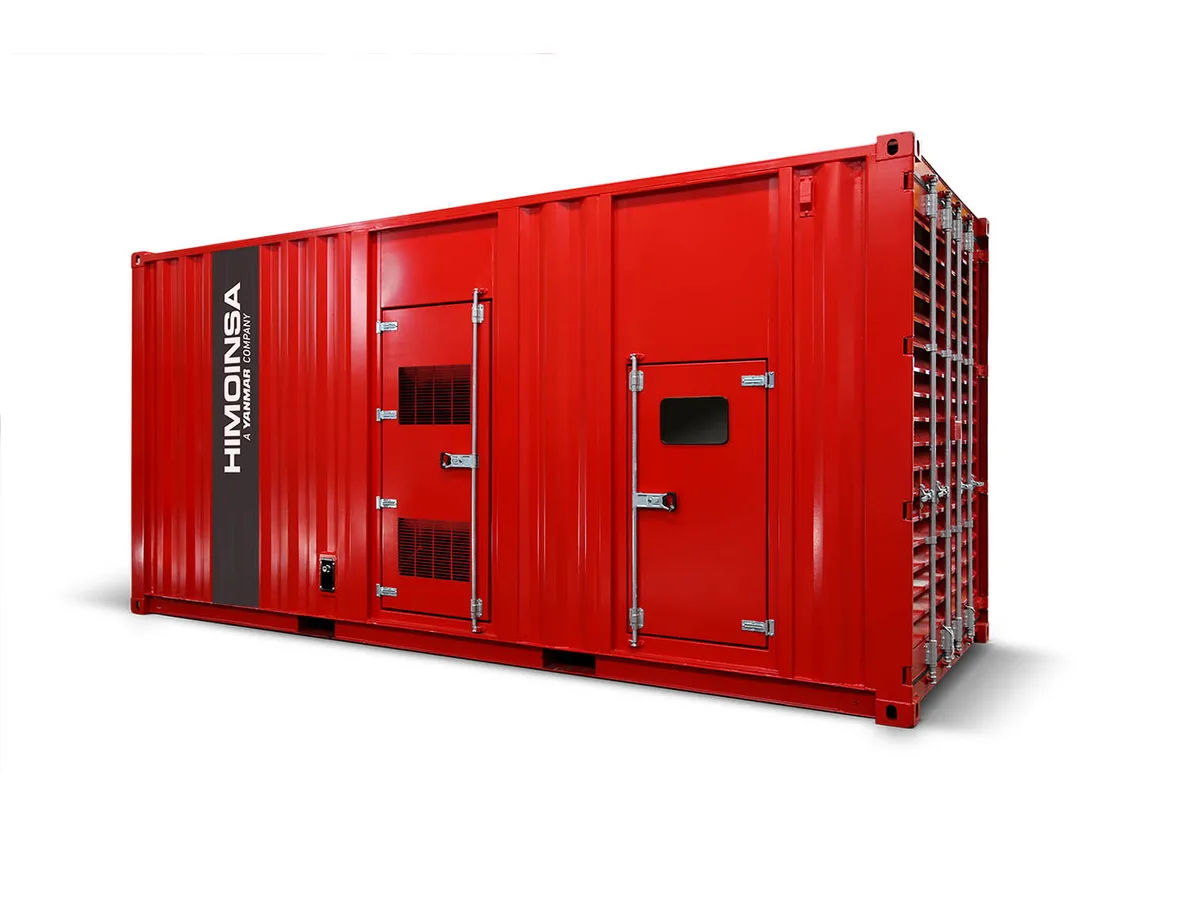

Hipower HTW-1600

1600 kW standby · Diesel · Liquid-cooled

1600 kW diesel generator. MTU engine. US manufactured in Olathe, Kansas.

Standby power: 1600 kW
Voltage options: 277/480V, 347/600V
Frequency / Phase: 60 Hz · 3-phase
Engine: MTU 16V4000
Alternator: Stamford S7L1D

Manufacturing Data Centerscritical-infrastructure

Configure & Quote Download spec sheet

Overview#

The Hipower HTW-1600 is a 1,600 kW standby diesel generator powered by an MTU (Rolls-Royce Power Systems) 16V4000-series engine — the same platform used in mission-critical data centers, large hospital campuses, and utility substations worldwide. Built in Olathe, Kansas, the HTW-1600 meets NFPA 110 Level 1 requirements, is seismic-certified to IBC 2021 Zone 4, and is rated for 200 mph wind loads. EPA Tier 4 Final and CARB compliant for unrestricted California installation.

MTU 4000 Series Platform#

The MTU 4000 Series is the benchmark for mission-critical generator engines. Rolls-Royce Power Systems designed the 4000 series with a 30,000+ hour TBO — substantially longer than competitive platforms — and the V-16 configuration delivers 1,600 kW from a single engine without the paralleling complexity of smaller units. SCR aftertreatment provides Tier 4 Final compliance with a DEF system integrated into the unit. The 4000 series is deployed at Tier I data centers globally and is the engine of choice for applications where generator downtime is not an option.

Mission-Critical Design#

At 1,600 kW, the HTW-1600 is typically deployed in N+1 or 2N configurations with paralleling switchgear. The unit supports NFPA 110 Level 1 emergency systems, seismic certification for California's strict IBC Zone 4 requirements, and optional dual-wall fuel tanks for secondary containment compliance. The MTU DiASter monitoring system provides remote diagnostics, predictive maintenance scheduling, and real-time performance data accessible through Hipower's fleet management tools.

Service and Maintenance#

MTU 4000-series maintenance requires certified MTU technicians for major work, though routine items (oil changes, filter service, DEF top-off) can be performed by any experienced diesel technician. The 500-hour oil change interval means typical standby applications see 1-2 oil changes per year. The DEF dosing injector should be inspected every 4,000 hours and flushed at shutdown to prevent urea crystallization — particularly important in California's temperature-cycling climate.

Our Service Experience#

PowerGen provides Bay Area and Northern California service for MTU-powered generator sets including the HTW-1600. The MTU dealer network in NorCal is thinner than John Deere's or Cummins' — which matters when a 1,600 kW data center generator needs urgent attention. Our technicians are experienced with the 4000-series platform and maintain parts inventory for scheduled service. For facilities operating multiple HTW-1600 units in parallel, we offer fleet maintenance contracts with priority response.

Engineering specifications

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Hipower HTW-1600

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Hipower HTW-1600

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

2.3 hours(0.1 days)

Fuel consumption ≈ 86.40 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Hipower HTW-1600 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 30,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
MTU DEF dosing injector	Urea crystallization at injector tip — run DEF purge cycle at shutdown, replace at 4,000 hours	4,000+	moderate
V-16 turbocharger	Oil weeping from shaft seal at high hours on heavy-cycle applications	10,000+	moderate
Starting battery bank	Voltage sag under cold-crank load for 1600 kW class — test annually, replace at 48 months	4,380+	minor

Frequently Asked Questions

What is the standby rating of the Hipower HTW-1600?: The HTW-1600 delivers 1,600 kW standby power at 277/480V or 347/600V three-phase. It is the top-end of Hipower's HMW/HTW lineup, targeting Tier III+ data centers and large hospital campuses requiring sub-2 MW standby in a single unit.
What MTU engine powers the HTW-1600?: The HTW-1600 uses an MTU (Rolls-Royce Power Systems) 16V4000-series engine — a 16-cylinder V-configuration turbocharged-aftercooled diesel rated for 30,000+ hour TBO. The 4000 Series is MTU's flagship heavy-duty platform used in power generation, marine, and rail applications worldwide.
What are the service intervals for the HTW-1600?: Oil and filter changes are due every 500 hours or 12 months. Air filter replacement at 1,000 hours. The MTU 4000-series DEF dosing injector should be inspected every 4,000 hours. Major engine overhaul interval is 30,000 hours.
Is the HTW-1600 EPA Tier 4 Final compliant for California?: Yes. The HTW-1600 is EPA Tier 4 Final and CARB compliant, qualifying for unrestricted installation throughout California. The MTU 4000-series engine uses SCR aftertreatment requiring DEF.
How does the HTW-1600 compare to a Cummins C1500 or CAT 3516?: All three are competitive at 1.5–1.6 MW. MTU's 4000 series has the highest TBO (30,000 hours vs CAT 3516's ~25,000 hours) and the highest power density. Cummins and CAT have broader NorCal dealer service networks. OnPoint services all three platforms.
Who services the HTW-1600 in Northern California?: PowerGen provides local service for MTU-powered generator sets in the Bay Area and Northern California. The MTU dealer network is thinner than John Deere or Cummins in NorCal — having a local independent service provider experienced with the 4000-series platform is important for fleet operators.

More in the HMW Series (Heavy Duty Industrial Diesel)

MTU-powered mission-critical diesel from 270 to 2,230 kW — Tier 4 Final, seismic-rated, CARB-compliant.

View all 16 models in this series →

Similar models

Hipower Systems

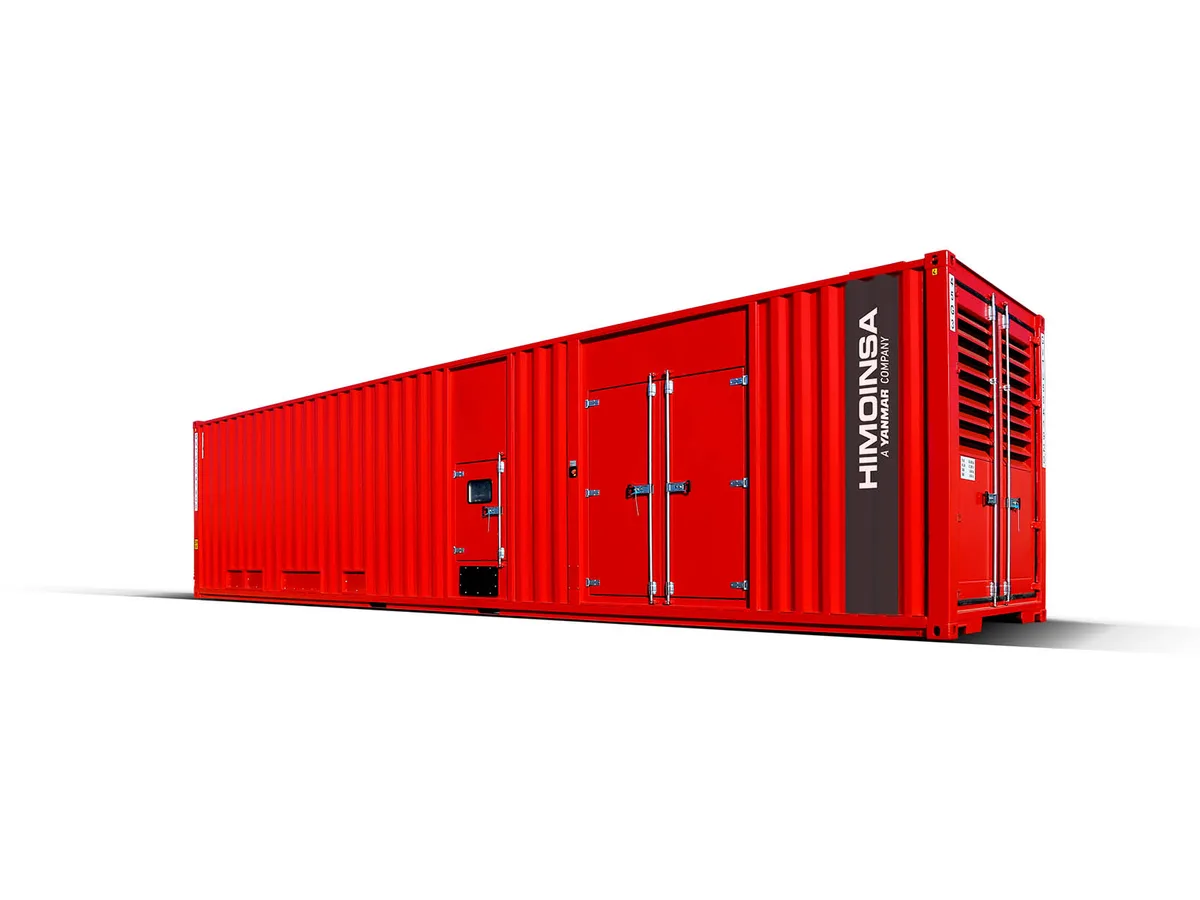

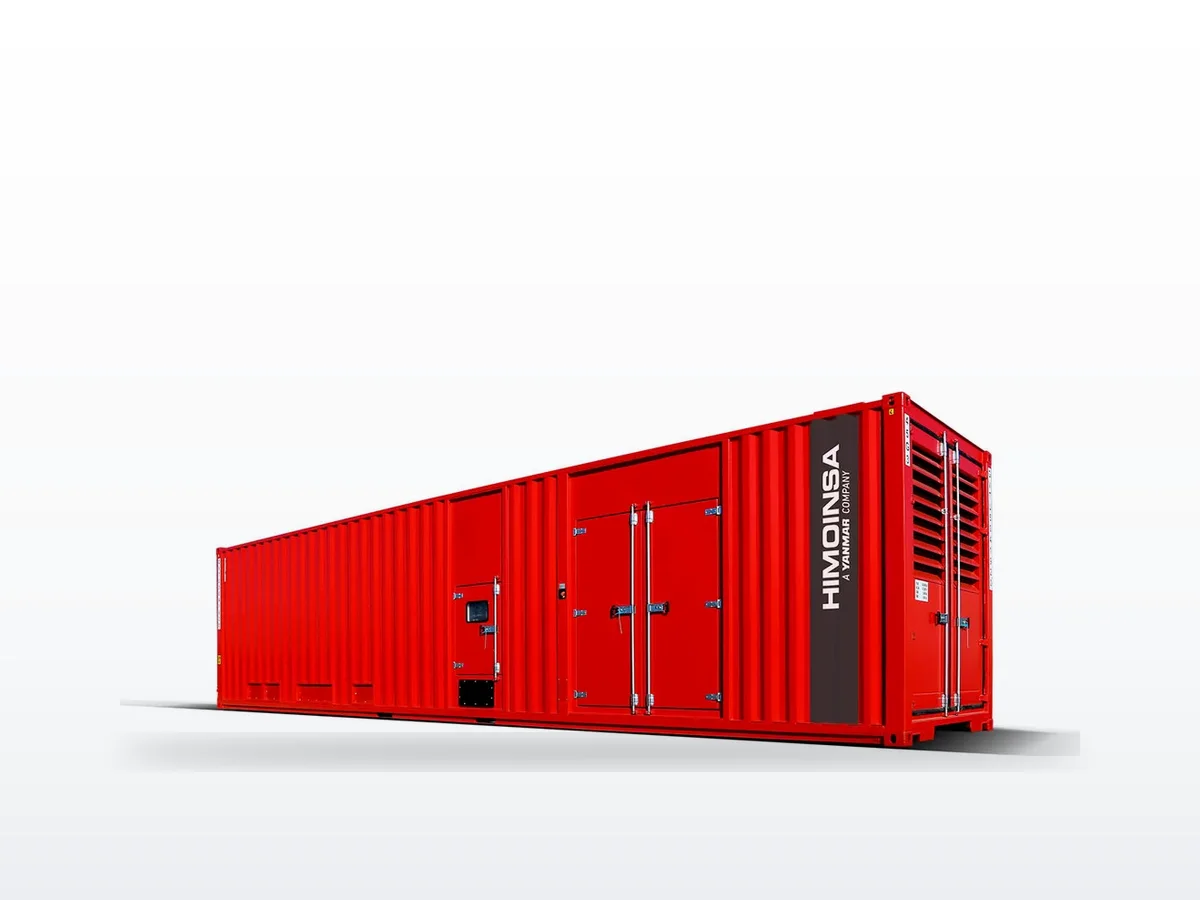

Hipower HTW-2000

2 MW standby · Diesel · Liquid-cooled

2000 kW diesel generator. MTU engine. US manufactured in Olathe, Kansas.

3-phaseindustrial-standbydata-center

Hipower Systems

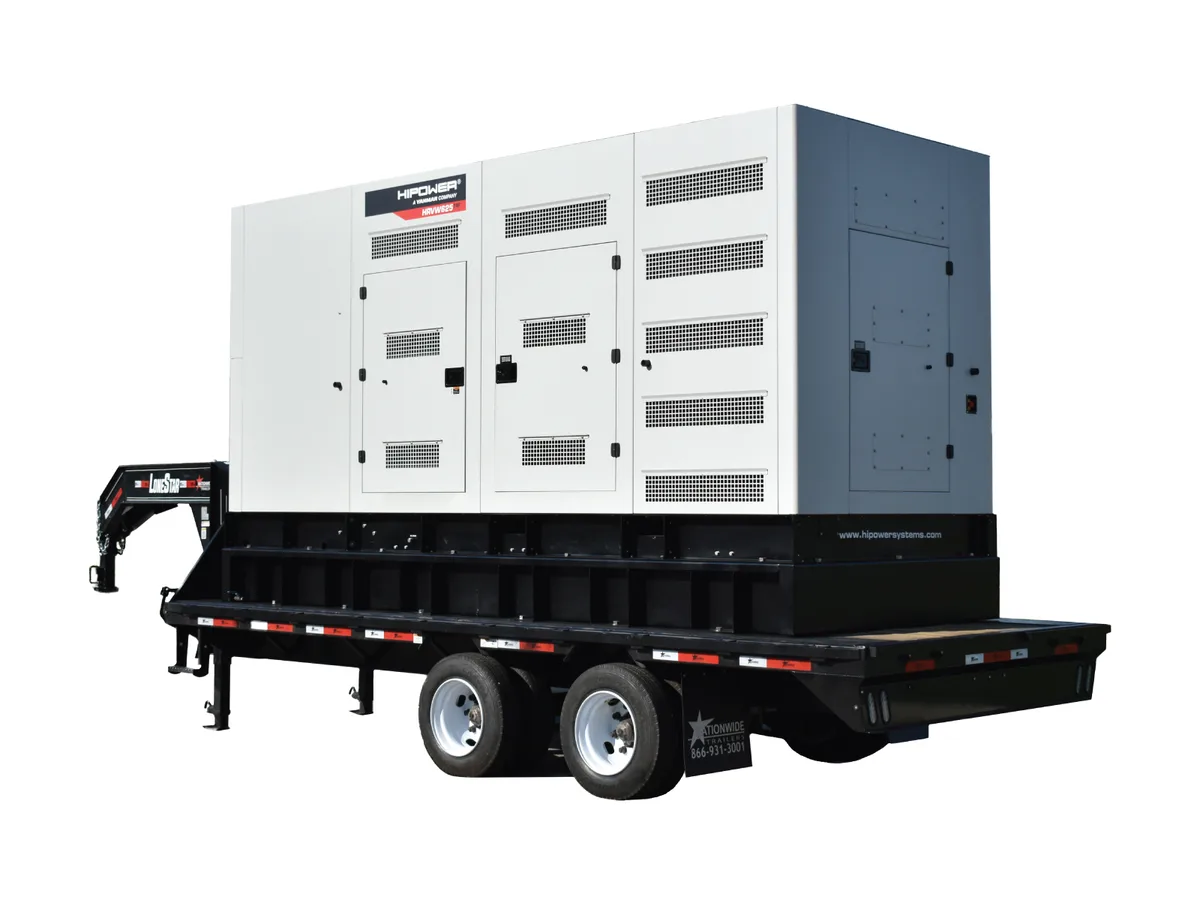

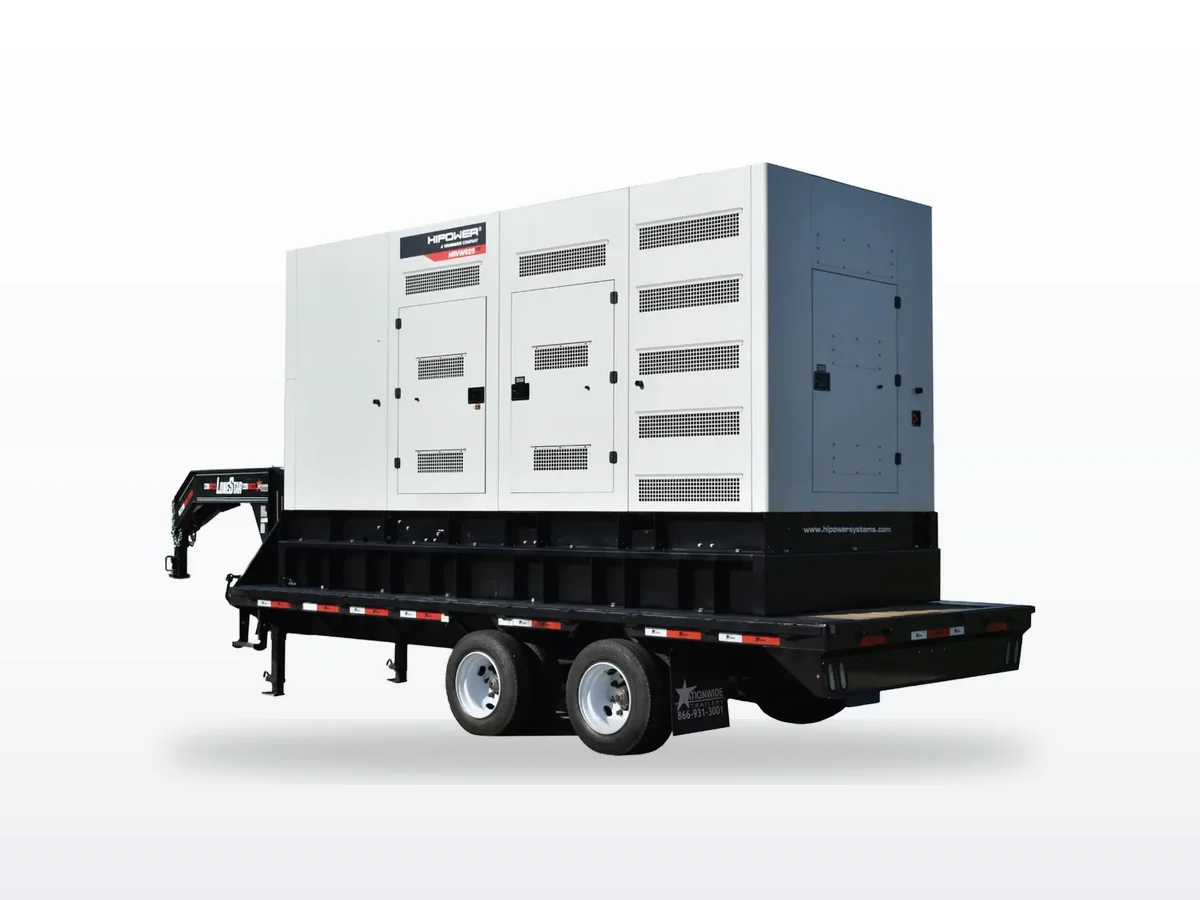

Hipower HMW-1550
