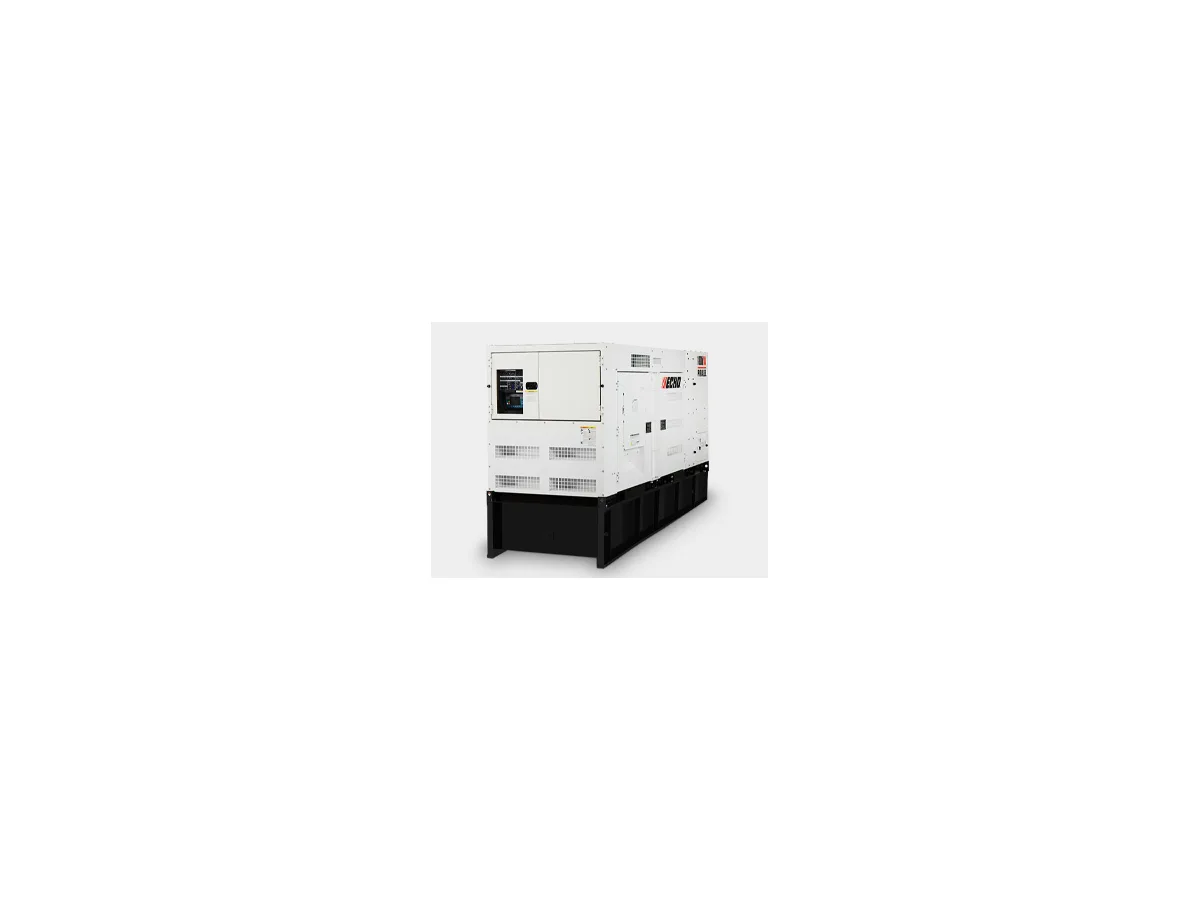

The Echo DGK180FP is the parallel-capable variant of the DGK180F, allowing multiple units to be synchronized for higher combined output. Built in Japan by Yamabiko Corporation (formerly Shindaiwa), this unit is powered by an Isuzu 6HK1 six-cylinder diesel engine delivering 144 kW prime power per unit through a 277/480V three-phase configuration. The 275-gallon integral fuel tank and 14.6-gallon DEF tank support extended operation. The sound-attenuated enclosure produces 65 dBA at 7 meters. Tier 4 Final and CARB compliant with S.E.T. Smart Emissions Technology.
The "P" designation on the DGK180FP indicates factory-integrated paralleling capability — the ability to synchronize multiple DGK180FP units for combined output that scales well beyond the 144 kW prime rating of a single unit. Two paralleled units deliver 288 kW prime; three deliver 432 kW. This modular approach is particularly compelling at the 180 kVA level, where each unit carries its own 275-gallon fuel tank — providing over 26 hours of runtime per unit. Compare this to the single-unit DGK400F, which carries only a 100-gallon tank for roughly 4 hours at full load. For large-scale projects requiring both high output and extended runtime, paralleled DGK180FP units offer a combination of power, endurance, and redundancy that single-unit alternatives cannot match.
As authorized service providers in Northern California, we maintain Echo DGK Series generators across the Bay Area and Central Valley. The DGK180FP is mechanically identical to the DGK180F — same Isuzu 6HK1 engine, same sound-attenuated enclosure, same 275-gallon fuel tank — with the addition of paralleling controls. This means parts, service procedures, and maintenance intervals are shared between the two models, simplifying fleet logistics. For large construction sites, utility-scale events, and critical facility backup, the DGK180FP's parallel capability combined with the 275-gallon fuel tank makes it one of the most operationally efficient choices in Echo's lineup. Echo's 3-year warranty — the longest in the portable class — covers both individual unit reliability and the paralleling system.
Engineering specifications
Physical
Length
143.7 in
Width
52.8 in
Height
87.8 in
Wet weight
9,370 lb
Acoustic
Sound @ 7m, full load
65 dBA
Enclosure
Sound-attenuated
Fuel system & runtime
Integral fuel tank
275 gal
Fuel use @ full load
10.3 GPH
DEF tank
14.6 gal
Request a quote
Get pricing & lead time on the Echo DGK180FP
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
34.6 hours(1.4 days)
Fuel consumption ≈ 7.95 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Echo DGK180FP under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 250 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 15,000 hours
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel filter
Contamination from portable job site fueling — change at 250 hours or sooner in dusty environments
250+
minor
Isuzu injectors
Tip wear from extended low-load operation — run at 50%+ load for extended periods to prevent carbon buildup
8,000+
moderate
DEF system
DEF quality degradation or contamination causing SCR fault codes — use fresh DEF and check tank annually
4,380+
moderate
Frequently Asked Questions
What is SimulPhase technology on the DGK180FP?
SimulPhase is Echo's patented technology that enables simultaneous single-phase and three-phase output from a single generator without external step-down transformers. No other portable generator manufacturer offers this capability. The DGK180FP adds parallel capability on top of SimulPhase, allowing multiple units to be synchronized for combined output while each unit maintains its own independent power delivery.
What is the runtime and fuel capacity of the DGK180FP?
The DGK180FP carries a 275-gallon integral fuel tank with a 14.6-gallon DEF tank and consumes approximately 10.3 gallons per hour at full load (144 kW prime). This provides roughly 26.7 hours of continuous operation at full load. When paralleled, each unit maintains its own independent fuel system, so runtime remains consistent regardless of the number of synchronized units.
How does paralleling DGK180FP units compare to the DGK400F?
Two paralleled DGK180FP units deliver 288 kW prime — approaching the DGK400F's 320 kW prime. The parallel approach offers advantages: redundancy (one unit sustains partial load if the other fails), each unit carries its own 275-gallon tank (26+ hours runtime vs. the DGK400F's 100-gallon tank yielding only 4 hours), and each unit weighs 9,370 lbs vs. the DGK400F's 15,035 lbs. For applications requiring extended runtime and N+1 redundancy, paralleled DGK180FP units are often the better engineering choice than a single DGK400F.
What is the Shindaiwa heritage behind Echo generators?
Echo generators are manufactured by Yamabiko Corporation in Japan, which acquired Shindaiwa — a company with over 50 years of industrial generator manufacturing experience. Shindaiwa-built generators have documented field runtimes exceeding 30,000 hours. The DGK Series carries forward this heritage with Japanese engineering and quality control. Echo backs every DGK unit with a 3-year warranty, the longest in the portable generator class.
