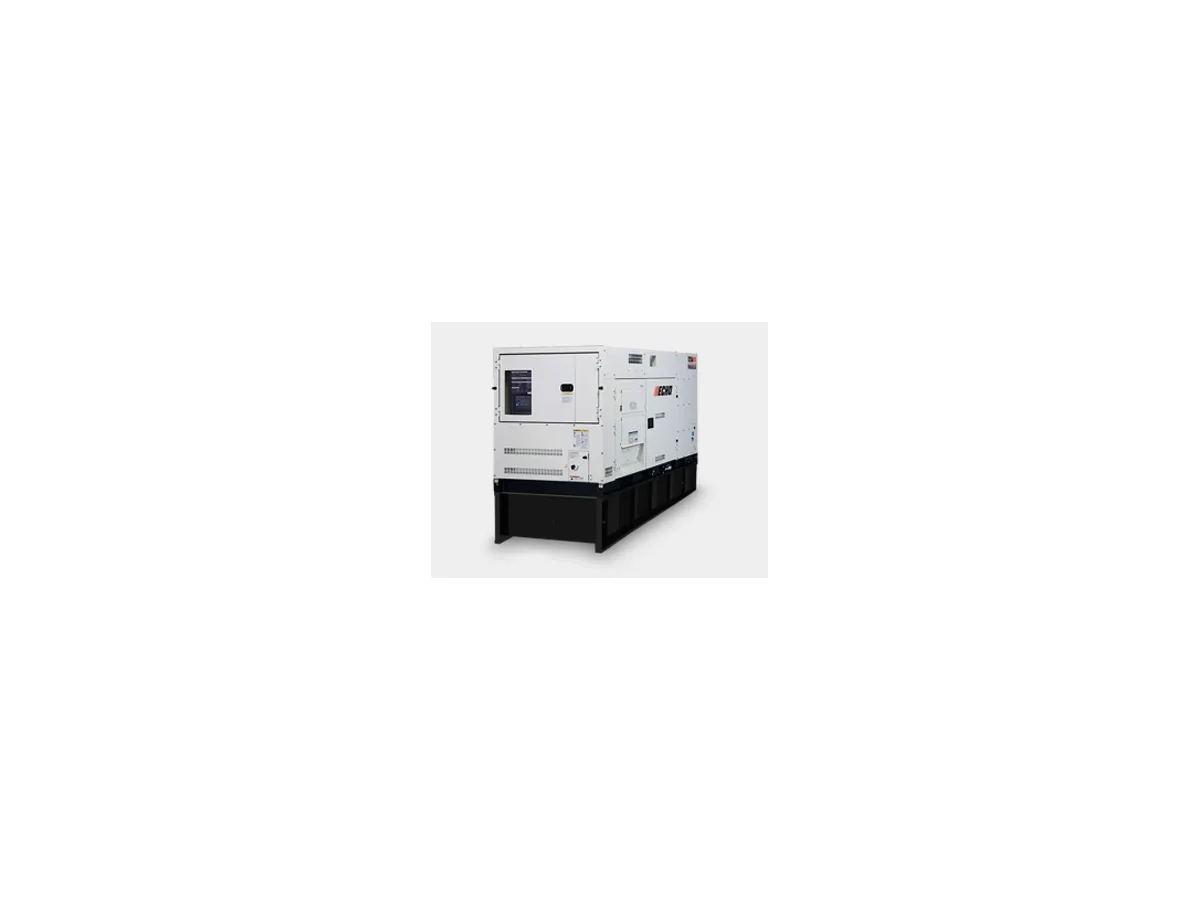

The Echo DGK125FP is the parallel-capable variant of the DGK125F, allowing multiple units to be synchronized for higher combined output. Built in Japan by Yamabiko Corporation (formerly Shindaiwa), this unit is powered by an Isuzu 4HK1X four-cylinder diesel engine delivering 100 kW prime power per unit. Features patented SimulPhase technology for simultaneous single-phase and three-phase output across 120/240V, 208V, and 277/480V configurations. The 171.7-gallon fuel tank and 14.8-gallon DEF tank support extended operation. Tier 4 Final and CARB compliant with S.E.T. Smart Emissions Technology.
The "P" designation on the DGK125FP indicates factory-integrated paralleling capability — the ability to synchronize multiple DGK125FP units for combined output that scales beyond the 100 kW prime rating of a single unit. Two paralleled units deliver 200 kW prime; three deliver 300 kW. This modular approach to power generation offers distinct advantages over selecting a single larger unit: built-in N+1 redundancy, incremental scalability as site loads grow, and simplified logistics with multiple trailer-portable units instead of one oversized genset. Each unit maintains its own independent fuel system, cooling, and controls, so a failure in one unit does not cascade to the paralleled group.
As authorized service providers in Northern California, we maintain Echo DGK Series generators across the Bay Area and Central Valley. The DGK125FP is mechanically identical to the DGK125F — same Isuzu 4HK1X engine, same sound-attenuated enclosure, same 171.7-gallon fuel tank — with the addition of paralleling controls. This means parts, service procedures, and maintenance intervals are shared between the two models, simplifying fleet logistics for operators running both variants. For large-scale events, multi-phase construction projects, or critical facility backup, the DGK125FP's parallel capability provides power scalability that single-unit alternatives cannot match. Echo's 3-year warranty — the longest in the portable class — covers both individual unit reliability and the paralleling system.
Engineering specifications
Physical
Length
120 in
Width
48.8 in
Height
59.1 in
Wet weight
6,592 lb
Acoustic
Sound @ 7m, full load
65 dBA
Enclosure
Sound-attenuated
Fuel system & runtime
Integral fuel tank
171.7 gal
Fuel use @ full load
7.1 GPH
DEF tank
14.8 gal
Request a quote
Get pricing & lead time on the Echo DGK125FP
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
31.3 hours(1.3 days)
Fuel consumption ≈ 5.48 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Echo DGK125FP under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 250 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 15,000 hours
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
SimulPhase selector switch
Phase selector relay failure after high-cycle portable use — contact failure leads to output loss on one phase
2,000+
moderate
Fuel filter
Contamination from portable job site fueling — change at 250 hours or sooner in dusty environments
250+
minor
Isuzu injectors
Tip wear from extended low-load operation — run at 50%+ load for extended periods to prevent carbon buildup
8,000+
moderate
Frequently Asked Questions
What is SimulPhase technology on the DGK125FP?
SimulPhase is Echo's patented technology that enables simultaneous single-phase and three-phase output from a single generator without external step-down transformers. No other portable generator manufacturer offers this capability. The DGK125FP adds parallel capability on top of SimulPhase, so you can synchronize multiple units for higher combined output while still benefiting from dual-phase flexibility on each individual unit.
What is the runtime and fuel capacity of the DGK125FP?
The DGK125FP carries a 171.7-gallon integral fuel tank with a 14.8-gallon DEF tank and consumes approximately 7.1 gallons per hour at full load (100 kW prime). This provides roughly 24 hours of continuous operation at full load before refueling. When paralleled, each unit maintains its own independent fuel system, so runtime remains consistent regardless of the number of synchronized units.
How does the parallel DGK125FP compare to a single larger generator?
Two paralleled DGK125FP units deliver 200 kW prime — comparable to Echo's DGK180F in a single unit. The parallel approach offers advantages: redundancy (one unit can sustain partial load if the other fails), scalability (add units as load grows), and easier logistics (each unit at 6,592 lbs vs. a single 9,370 lb DGK180F). For sites where load growth is expected or N+1 redundancy is required, the DGK125FP parallel configuration provides flexibility that a single larger unit cannot match.
What is the Shindaiwa heritage behind Echo generators?
Echo generators are manufactured by Yamabiko Corporation in Japan, which acquired Shindaiwa — a company with over 50 years of industrial generator manufacturing experience. Shindaiwa-built generators have documented field runtimes exceeding 30,000 hours. The DGK Series carries forward this heritage with Japanese engineering and quality control. Echo backs every DGK unit with a 3-year warranty, the longest in the portable generator class.
