Series Overview#

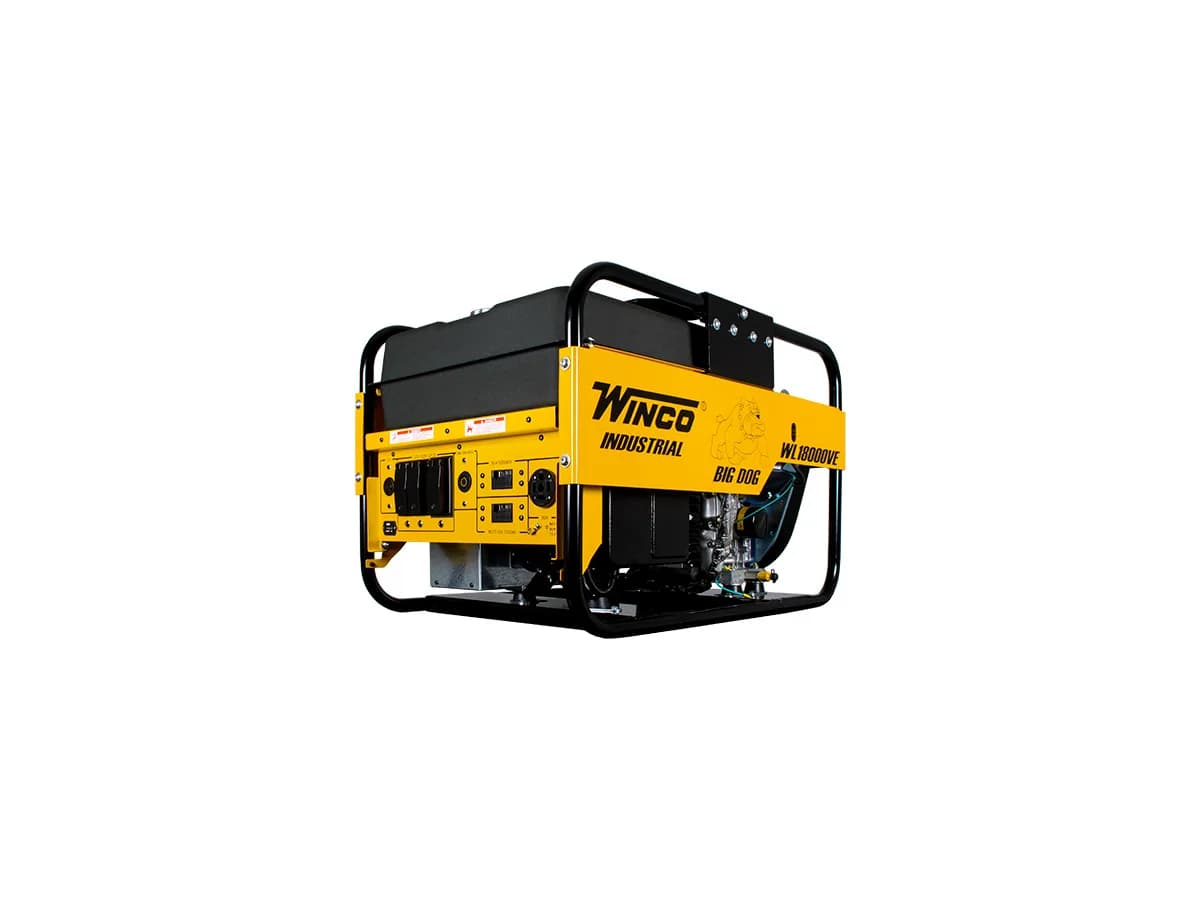

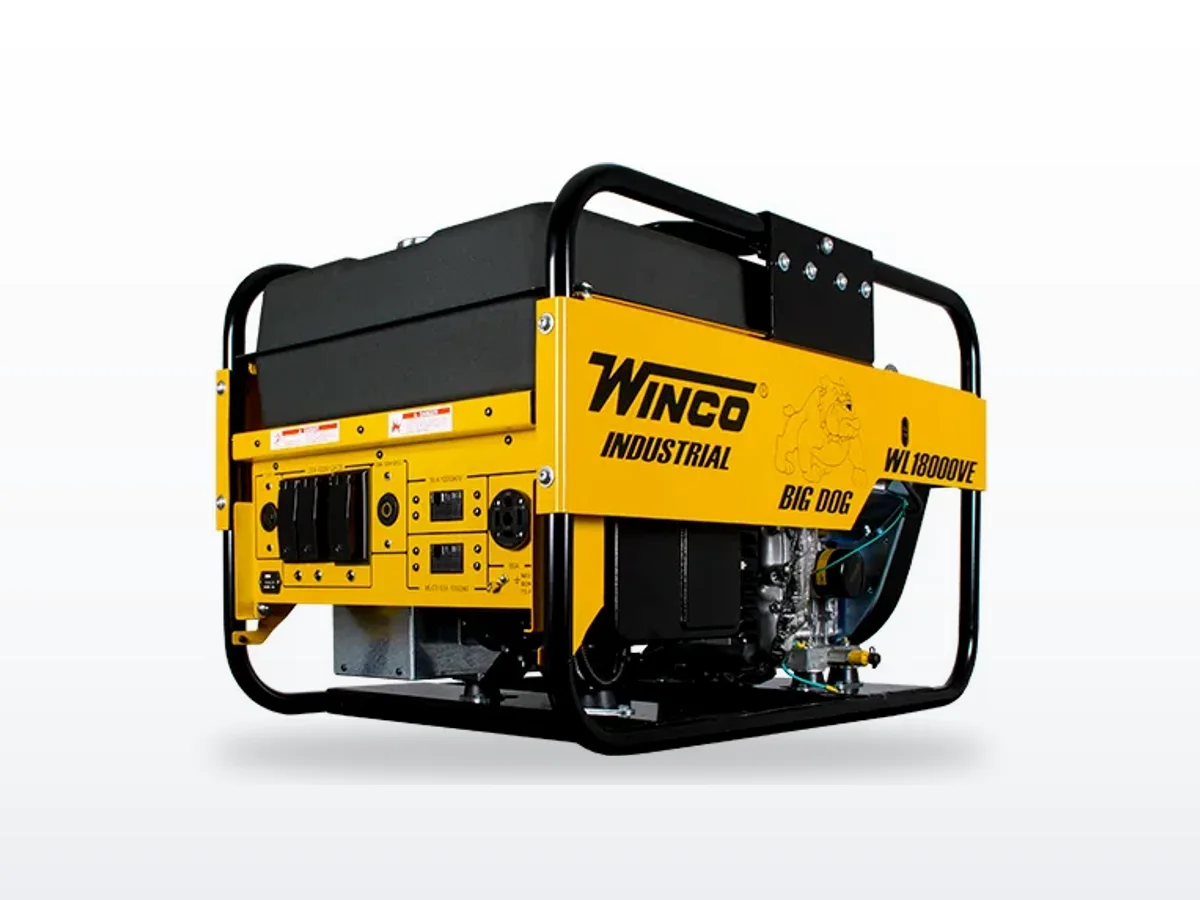

The Winco WL Big Dog Series is a single-model portable generator line: the WL18000VE, a heavy-duty 18 kW surge portable generator built around a Briggs & Stratton Vanguard 993cc V-Twin air-cooled engine. At 18 kW, it delivers more portable power than most home standby generators in a contractor-portable frame — positioned specifically for demanding construction site and temporary power applications where significant electrical capacity is needed without a stationary installed generator. Like all Winco products, the WL18000VE is 100% manufactured in Le Center, Minnesota.
The "Big Dog" name reflects the WL18000VE's positioning as a high-output portable for contractors who need maximum power from a gasoline portable. The Briggs & Stratton Vanguard platform is a commercial-grade engine widely serviced through Briggs & Stratton's dealer network independently of Winco's own distribution — a practical advantage in the field where immediate engine service access matters more than OEM brand loyalty.
The Big Dog Series is air-cooled, gasoline-fueled, and single-phase 120/240V — specifications that define its use profile. It is not a diesel unit, not liquid-cooled, and not three-phase. For applications requiring three-phase output, diesel fuel, or permanent outdoor installation, the DR Series or DE Series are the appropriate Winco options.
How to Choose#
The WL Big Dog Series contains a single model, so the selection question is whether the WL18000VE is the right tool for the application — not which model within the series to choose.
The WL18000VE is appropriate when:
- The application requires high-output portable power at a construction site or temporary location
- Gasoline fueling is practical (fuel available on-site or nearby)
- Single-phase 120/240V output covers all loads
- Portability and transport mobility are required
- Three-phase output is not needed
Consider alternatives when:
- Three-phase output is required: the DR35F4 or DE30 provide three-phase output in a diesel platform
- Fuel flexibility is a priority: the Winco HPS Tri-Fuel Series (HPS12000HE) runs on gasoline, LP, or natural gas
- The installation is permanent and outdoor: the DR Series provides weather-protective enclosure
Common Applications#
- Construction sites: The primary application for the WL18000VE. At 18 kW, it powers multiple power tools, lighting, compressors, and site trailers simultaneously. The portable frame allows relocation as the project progresses.
- Temporary power events: Short-term power for outdoor events, festivals, or temporary commercial setups where utility power is unavailable. The gasoline fuel type simplifies logistics for short-duration applications.
Service & Maintenance#
The WL18000VE requires oil changes every 100 hours or 12 months — significantly more frequent than the 500-hour intervals on DR/DE Series diesel units. This reflects the air-cooled Vanguard engine's design parameters. Air filter service is every 200 hours, spark plug replacement every 200 hours.
The most common failure mode after storage is carburetor and fuel system issues: hard starting, surging, or stalling caused by varnish deposits from stale gasoline. Use fuel stabilizer when storing the unit for more than 30 days, and drain the carburetor if the unit will sit unused for more than 90 days. This is a consistent characteristic of gasoline-carbureted engines, not a defect unique to the Vanguard platform.
Battery maintenance is the other key standby item: the electric start battery degrades during storage periods. Maintain a float charger on the battery between uses and test under load annually. A failed starting battery is the most common reason a contractor generator will not start when it is needed.
