What is the standby kW rating of the DR65F4?

The DR65F4 is rated at 62 kW standby / 55.8 kW prime. It is a three-phase-only unit (277/480V).

What engine does the DR65F4 use?

The DR65F4 uses an FPT Industrial N45 SM2 4.5-liter four-cylinder turbocharged diesel engine from CNH Industrial. The N45 SM2 is part of the same engine family used in Case IH and New Holland agricultural equipment worldwide.

What makes Winco different from Generac or Kohler?

Winco uses non-proprietary FPT Industrial engines and Stamford alternators — components that any qualified diesel technician can service without OEM-specific programs or tooling. Winco has manufactured generators entirely in Le Center, Minnesota since 1927. Generac and Kohler use proprietary engines and offer connected monitoring and denser dealer networks, but with proprietary parts dependency.

What emissions tier is the DR65F4?

The DR65F4 carries EPA Tier III certification for standby applications. The FPT N45 SM2 is a Tier III engine — standby generators in this class carry Tier III certification under EPA standby exemption rules.

Where are Winco generators made?

100% in Le Center, Minnesota. Winco has operated continuously at that US facility since 1927, making it America's oldest generator manufacturer.

What are the service intervals for the DR65F4?

Oil and fuel filter changes every 500 hours or annually. Air filter inspection at 500 hours. Major overhaul at 20,000 hours. Transfer switch contacts should be exercised weekly during standby to prevent oxidation.

Who services Winco generators in Northern California?

PowerGen services Winco DR units throughout the Bay Area and Northern California. The FPT Industrial engine and Stamford alternator are non-proprietary, so parts come through standard diesel supply channels rather than a Winco-specific dealer.

Winco · DR Series

Winco DR65F4

Name: Winco DR65F4
Brand: Winco
Availability: PreOrder

62 kW standby / 55.8 kW prime · Diesel · Liquid-cooled

62 kW standby diesel generator with FPT N45 SM2 4.5L engine and Stamford alternator. DR series enclosed. US-made.

Standby power: 62 kW / 55.8 kW prime
Voltage options: 277/480V
Frequency / Phase: 60 Hz · 3-phase
Engine: FPT Industrial N45 SM2 · 4.5L
EPA / Emissions: Tier 3

Commercial

Configure & Quote Download spec sheet

Overview#

The Winco DR65F4 is a 62 kW standby / 55.8 kW prime diesel generator powered by an FPT Industrial N45 SM2 4.5-liter turbocharged diesel engine with a Stamford alternator. A three-phase-only unit (277/480V), it serves mid-size commercial and institutional standby applications. EPA Tier III certified (standby). 100% US-made in Le Center, Minnesota.

The DR65F4 is part of Winco's enclosed DR series — outdoor-ready with weather-protective enclosure and sub-base fuel tank. At 62 kW, it is the mid-range unit in the FPT-powered DR line, positioned between the DR45F4 and DR90F4.

The American Manufacturing Advantage#

Since 1927, Winco has manufactured every generator in Le Center, Minnesota — the longest continuous run of any generator manufacturer in America. The DR65F4 is built with two globally non-proprietary components at its core: an FPT Industrial N45-series engine and a Stamford alternator.

For government and institutional facilities subject to Buy American procurement requirements, the DR65F4 qualifies. The FPT engine is serviceable at any CNH Industrial dealer (Case IH, New Holland) or independent diesel shop. Stamford alternator parts are available from multiple supplier networks worldwide. No proprietary service contracts, no OEM-mandated dealer visits.

Service & Maintenance#

Oil and fuel filter changes every 500 hours or annually — the annual interval is especially important for standby generators where diesel sits in the tank for months. At 62 kW, the FPT N45 SM2 operates well within its rated capacity, reducing maintenance intensity. FPT engine consumables are stocked at CNH Industrial dealers and diesel parts distributors nationwide.

Stamford alternator maintenance covers brush inspection, bearing lubrication, and winding insulation checks — standard tasks for any experienced generator technician. Transfer switch contacts should be exercised weekly to prevent oxidation during standby. Major overhaul at 20,000 hours.

Our Service Experience#

PowerGen services Winco DR units throughout the Bay Area and Northern California. The non-proprietary FPT and Stamford components mean we service the DR65F4 the same way we service any industrial diesel generator — through standard channels, without needing a dedicated Winco distributor. For schools, municipal facilities, and commercial buildings with Buy American requirements or strong preferences for US-made equipment, the DR65F4 delivers 65 kW of reliable standby power from an honest American machine.

Engineering specifications

Acoustic

Enclosure: Sound-attenuated

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Winco DR65F4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Winco DR65F4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

59.7 hours(2.5 days)

Fuel consumption ≈ 3.35 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Winco DR65F4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Air filter: Every 500 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel filter	Extended standby fuel degradation — change annually regardless of hours	500+	minor
Starting battery	Capacity loss in standby — float charge, test annually	4,380+	minor
Transfer switch contacts	Oxidation on standby generators — exercise weekly to maintain contact quality	8,760+	minor

Frequently Asked Questions

What is the standby kW rating of the DR65F4?: The DR65F4 is rated at 62 kW standby / 55.8 kW prime. It is a three-phase-only unit (277/480V).
What engine does the DR65F4 use?: The DR65F4 uses an FPT Industrial N45 SM2 4.5-liter four-cylinder turbocharged diesel engine from CNH Industrial. The N45 SM2 is part of the same engine family used in Case IH and New Holland agricultural equipment worldwide.
What makes Winco different from Generac or Kohler?: Winco uses non-proprietary FPT Industrial engines and Stamford alternators — components that any qualified diesel technician can service without OEM-specific programs or tooling. Winco has manufactured generators entirely in Le Center, Minnesota since 1927. Generac and Kohler use proprietary engines and offer connected monitoring and denser dealer networks, but with proprietary parts dependency.
What emissions tier is the DR65F4?: The DR65F4 carries EPA Tier III certification for standby applications. The FPT N45 SM2 is a Tier III engine — standby generators in this class carry Tier III certification under EPA standby exemption rules.
Where are Winco generators made?: 100% in Le Center, Minnesota. Winco has operated continuously at that US facility since 1927, making it America's oldest generator manufacturer.
What are the service intervals for the DR65F4?: Oil and fuel filter changes every 500 hours or annually. Air filter inspection at 500 hours. Major overhaul at 20,000 hours. Transfer switch contacts should be exercised weekly during standby to prevent oxidation.
Who services Winco generators in Northern California?: PowerGen services Winco DR units throughout the Bay Area and Northern California. The FPT Industrial engine and Stamford alternator are non-proprietary, so parts come through standard diesel supply channels rather than a Winco-specific dealer.

More in the DR Series

USA-made Tier 4 diesel standby in enclosed packages — 13 to 175 kW on FPT and Isuzu engines.

View all 9models in this series →

Similar models

Winco

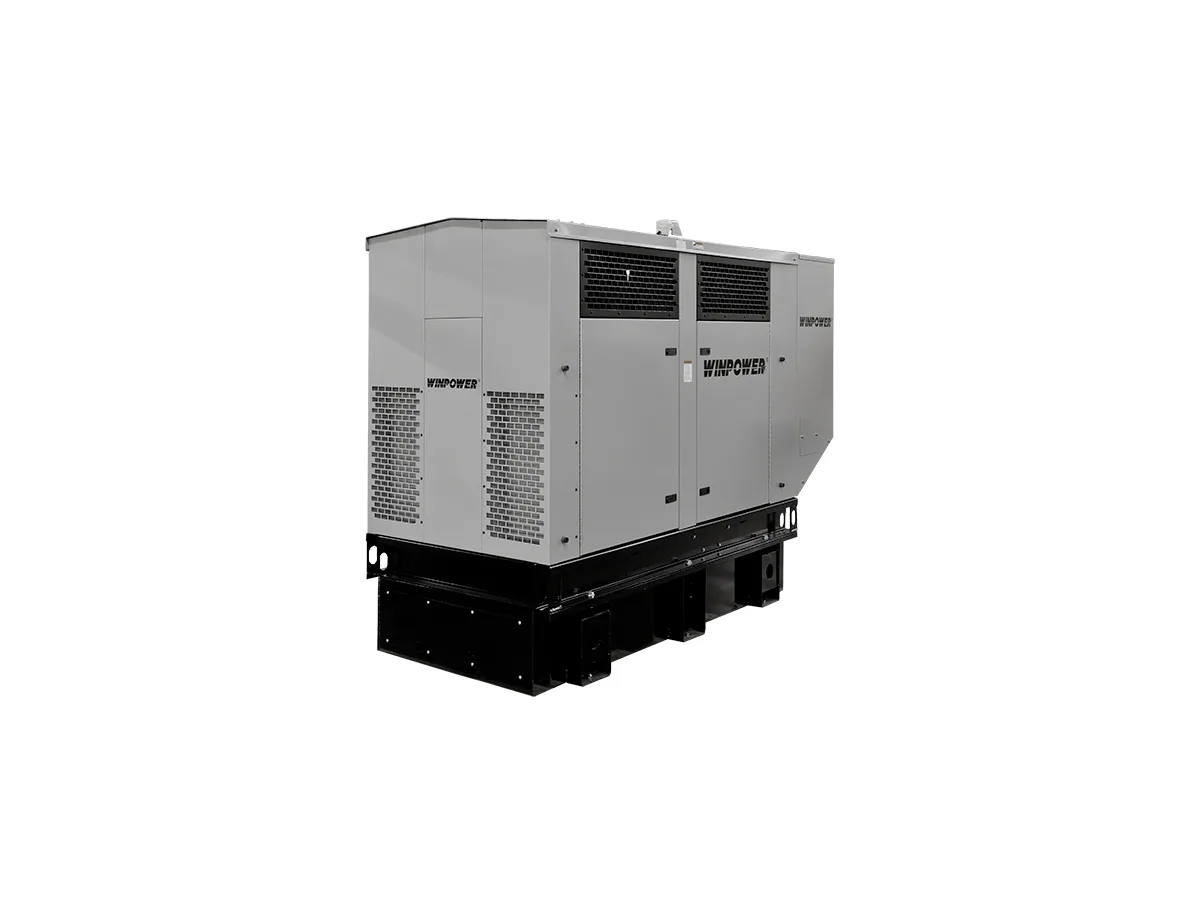

Winco DR45F4

100% US-made diesel standby with Stamford alternator and non-proprietary engines — serviceable by anyone, not locked to a dealer network.

45 kW standby · Diesel · Liquid-cooled

Cost-conscious commercial/institutional standby where Buy American and component independence matter.

45 kW standby diesel generator with FPT engine and Stamford alternator. DR series enclosed. US-made.

Tier 33-phasecommercial-standby

Winco

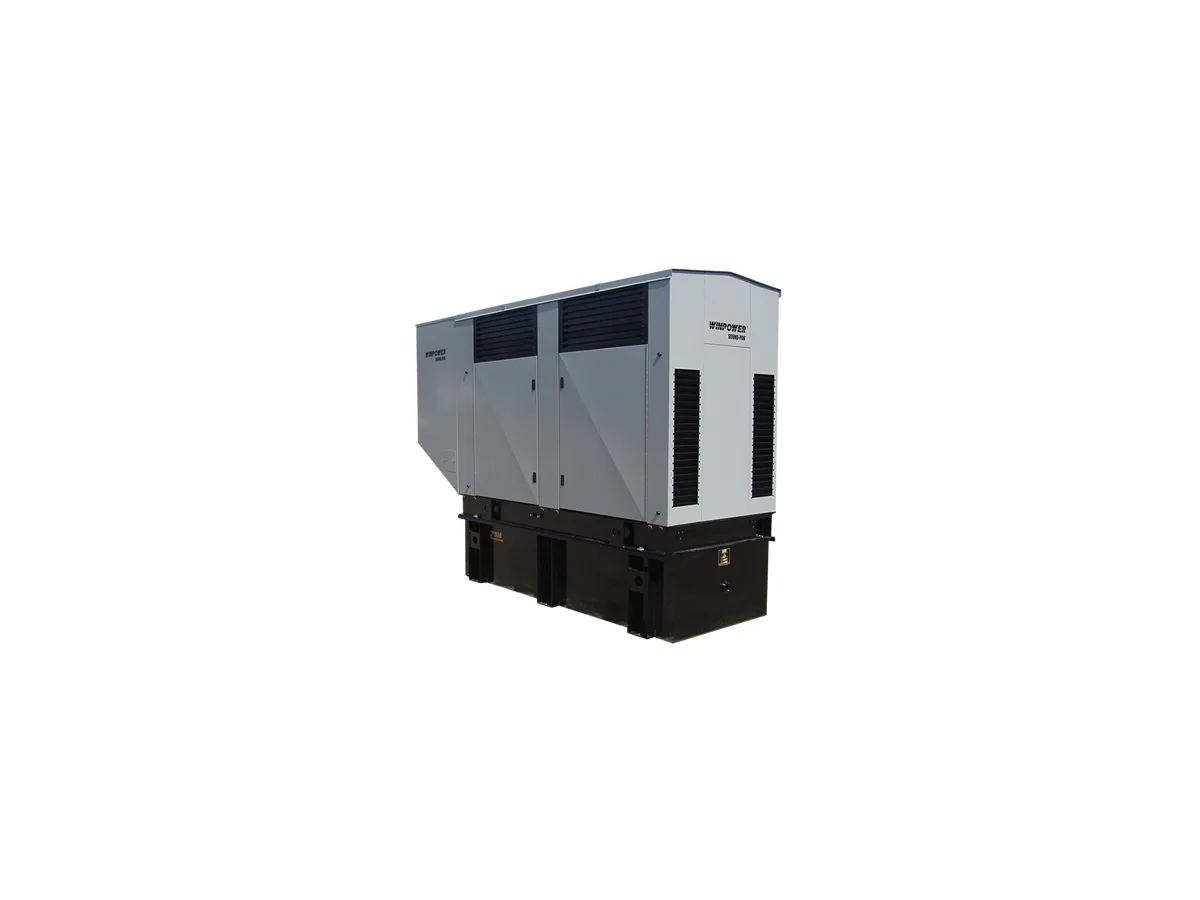

Winco DR90F4

100% US-made diesel standby with Stamford alternator and non-proprietary engines — serviceable by anyone, not locked to a dealer network.

86 kW standby · Diesel · Liquid-cooled

Cost-conscious commercial/institutional standby where Buy American and component independence matter.

90 kW standby diesel generator with FPT engine and Stamford alternator. DR series enclosed. US-made.

Tier 33-phasecommercial-standby

Gillette

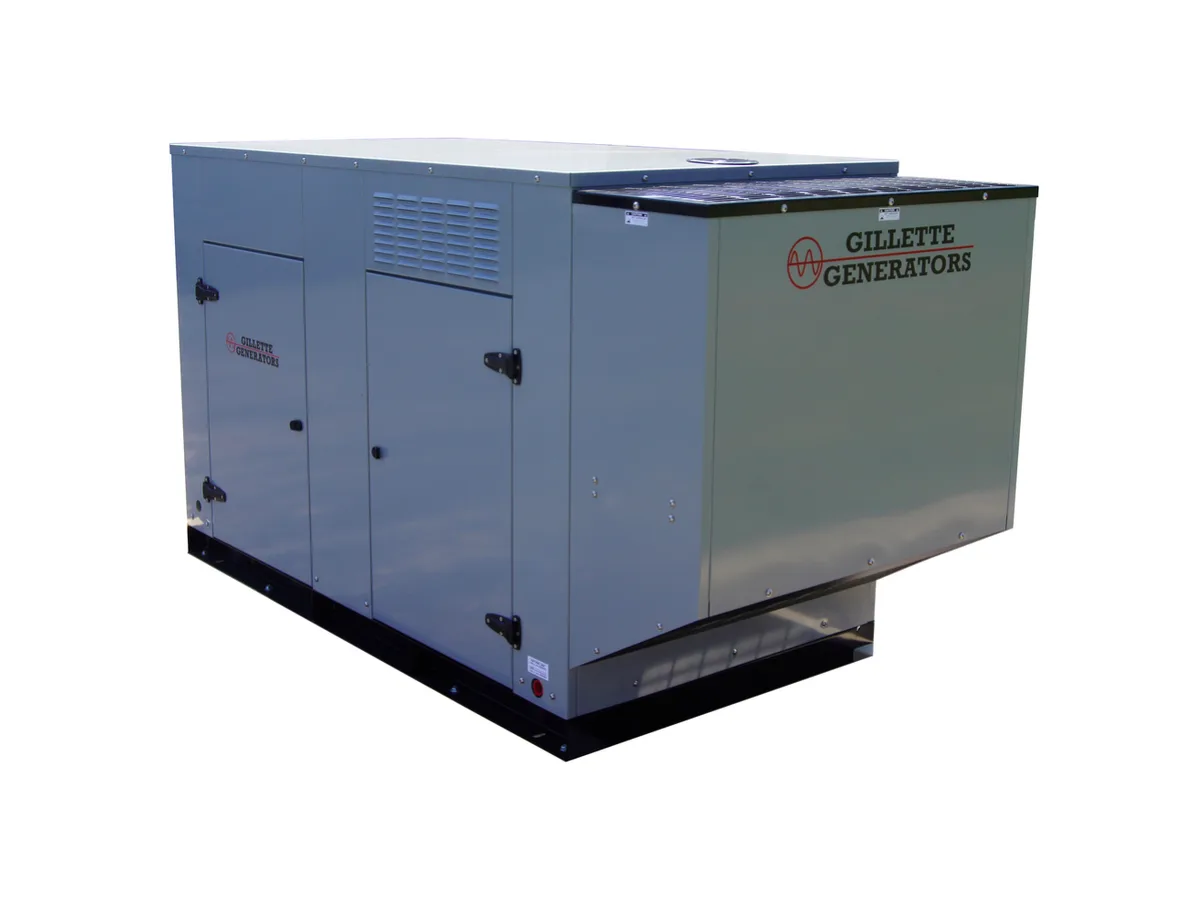

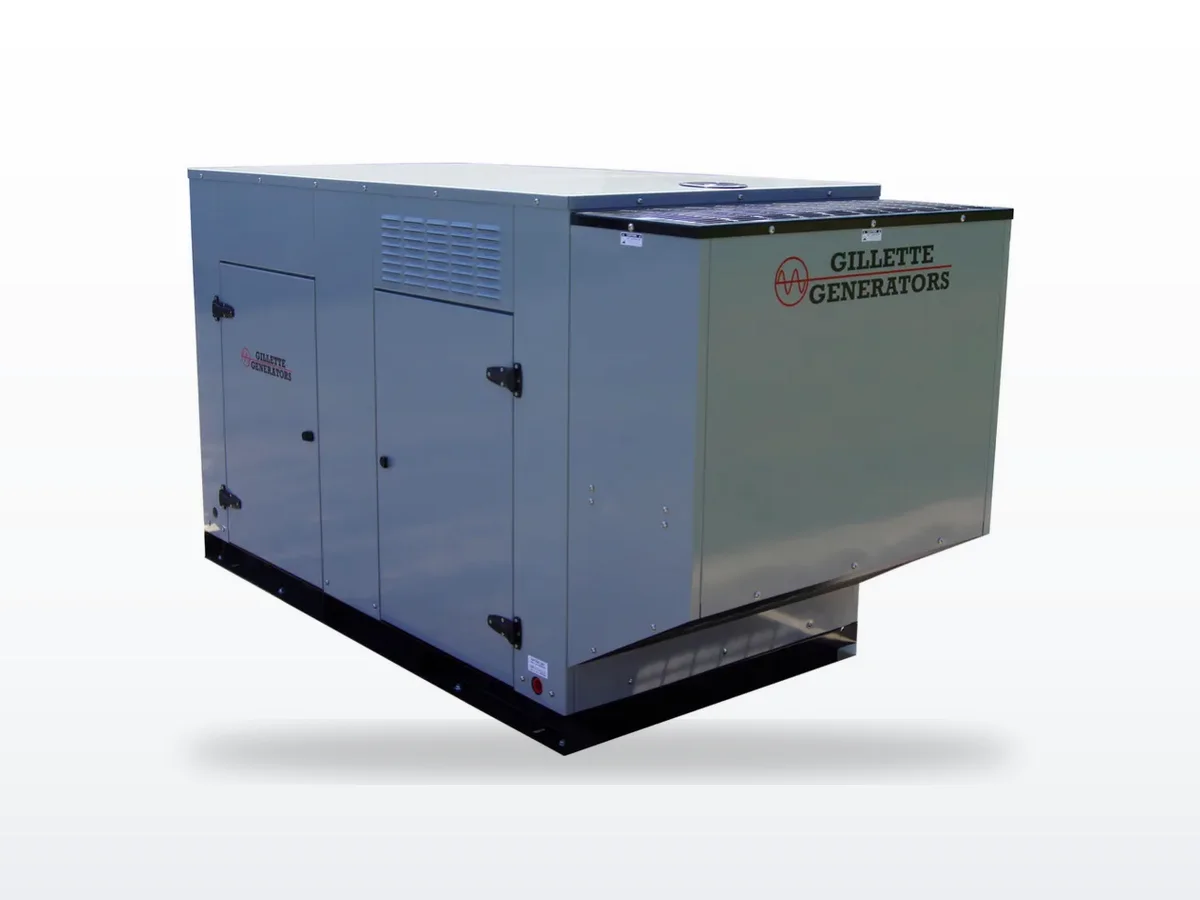

Gillette SPD-600
